Connect Modules
Up to 5 modules may be connected to form a group. Connected modules share a power
supply, network connection, exhaust tubing, inlet filter assemblies, and connected calibration
gas cylinders.
Connecting Modules
1. Assemble the stand for each module you plan to connect. For more information, see
Assemble the Stand.
2. Connect two modules.
a) Unlock and raise the latch arm on the first module. If an end plate is attached,
remove it.

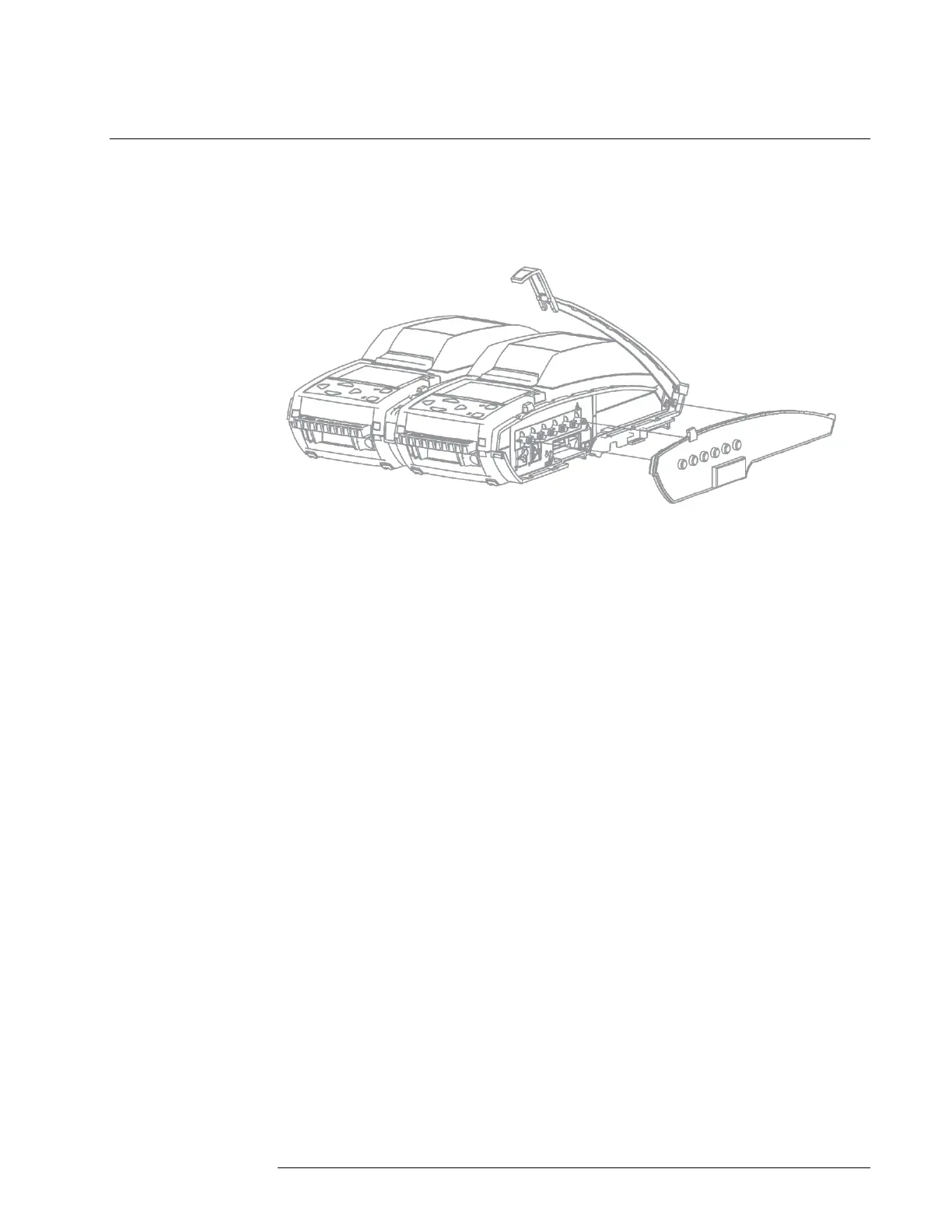

b) Align the connection port, outlets and stand on the first module with the
connection port, inlets and stand on the second module.
c) Push the modules firmly together to connect. Verify that the stands are
connected, and then lower and lock the latch arm on the first module.
3. Unlock and raise the latch arm on the last connected module, and then connect another
module. Repeat as necessary to connect up to a maximum of five modules in one group.
4. Prepare connected modules for use.
a) Verify that connected modules are firmly attached and latch arms are lowered
and locked.
b) Attach the end plate to the last module in the group. Verify that the latch arm is
lowered and locked.
c) Connect the inlet filters, tubing, network connection and power cord.
d) Verify that each module in the group is activated and a consecutive bay number
is displayed on the LCD. See LCD Screen.
Disconnecting Modules
1. Disconnect the power.
2. Unlock and raise the latch arm between two modules.
3. Holding one unit in each hand, gently pull the modules apart.
4. Repeat as necessary until all modules in the group are disconnected.
