INTELLIDOX DOCKING MODULE USER MANUAL || DOCK STATION SETTINGS
MENU
HONEYWELL PAGE 41 OF 119
Configure Gas Inlets
For each attached calibration gas cylinder, you must configure the gas blend, and then
configure each gas type and concentration contained in the gas blend. You may also
record the lot number of the calibration gas cylinder.
If a single-inlet key is inserted in an individual module or all connected modules in a group,
then you can attach one calibration gas cylinder. If a multi-inlet key is inserted in an
individual module or one or more connected modules in a group, then, then you can
attach up to four calibration gas cylinders. For more information, see Inlet Keys.
If the module is part of a group of up to 5 connected modules, then changes to the gas
inlet settings affect all of the modules in the group. If the group contains both single-inlet
and multi-inlet key modules, then changes to Inlet 1 affect all modules and changes to
Inlets 2, 3 and 4 affect the multi-inlet key modules only.

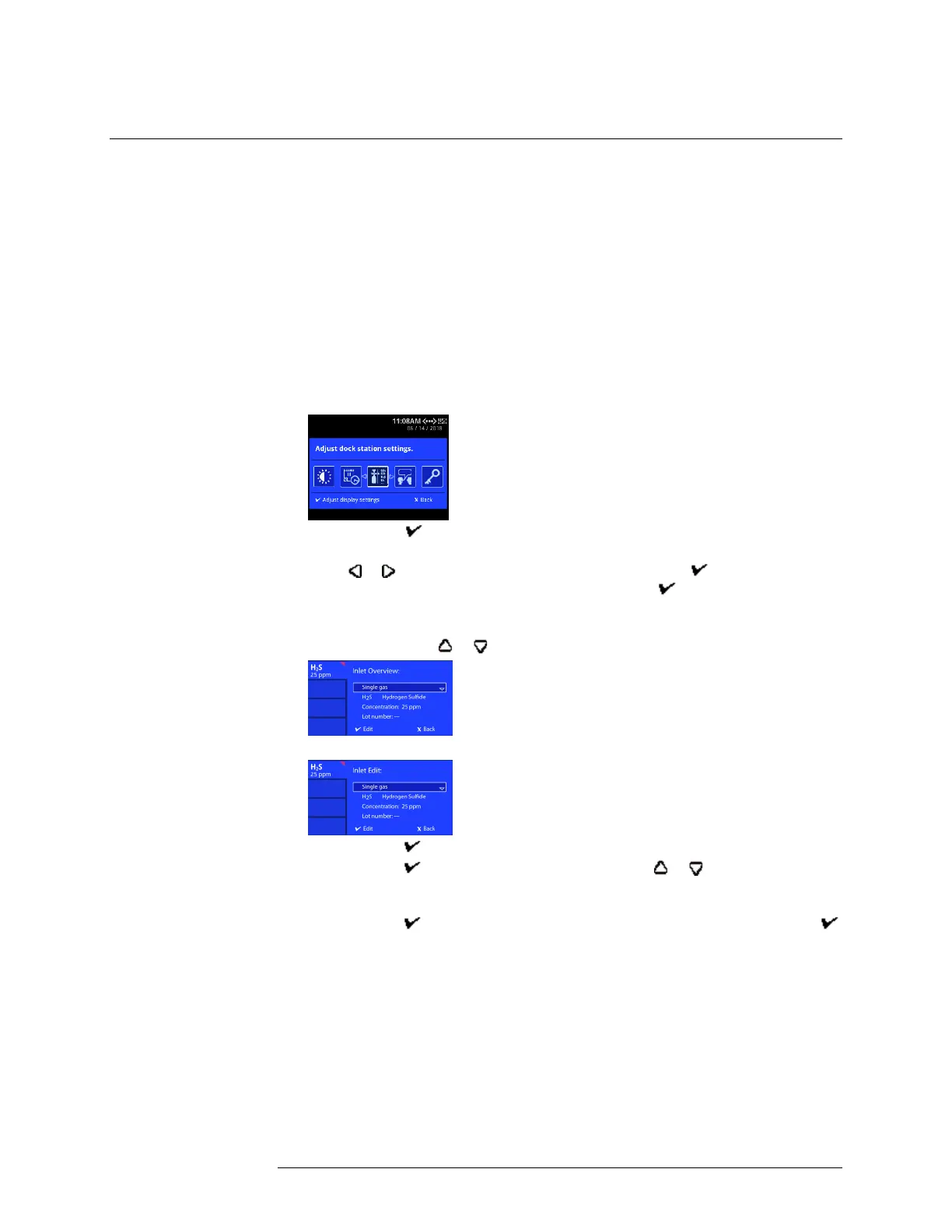

Configuring Gas Inlets
1. Press and hold on the keypad until Adjust dock station settings is displayed on
the LCD.
2. Press or to select Configure gas inlets and then press . If the procedure is
passcode-protected, then enter the passcode and press to continue.
3. The Inlet overview for Inlet 1 is displayed. If a multi-inlet key is inserted in an
individual module or one or more connected modules in a group, then four inlet tabs
are displayed. Press or to select and configure a different inlet.
4. Configure the gas blend for the selected inlet.
a) Press to display the Inlet edit menu. Gas blend is highlighted.
b) Press to select Gas blend, and then press or to select a single-gas
blend or a multi-gas blend of 2 or more gas types. If the inlet is not
connected to a gas cylinder, select No inlet.
c) Press to save the changes and return to the Inlet edit menu, or press
to abandon the changes and return to the Inlet edit menu.
