INTELLIDOX DOCKING MODULE USER MANUAL || ASSEMBLE MODULES
HONEYWELL PAGE 15 OF 119

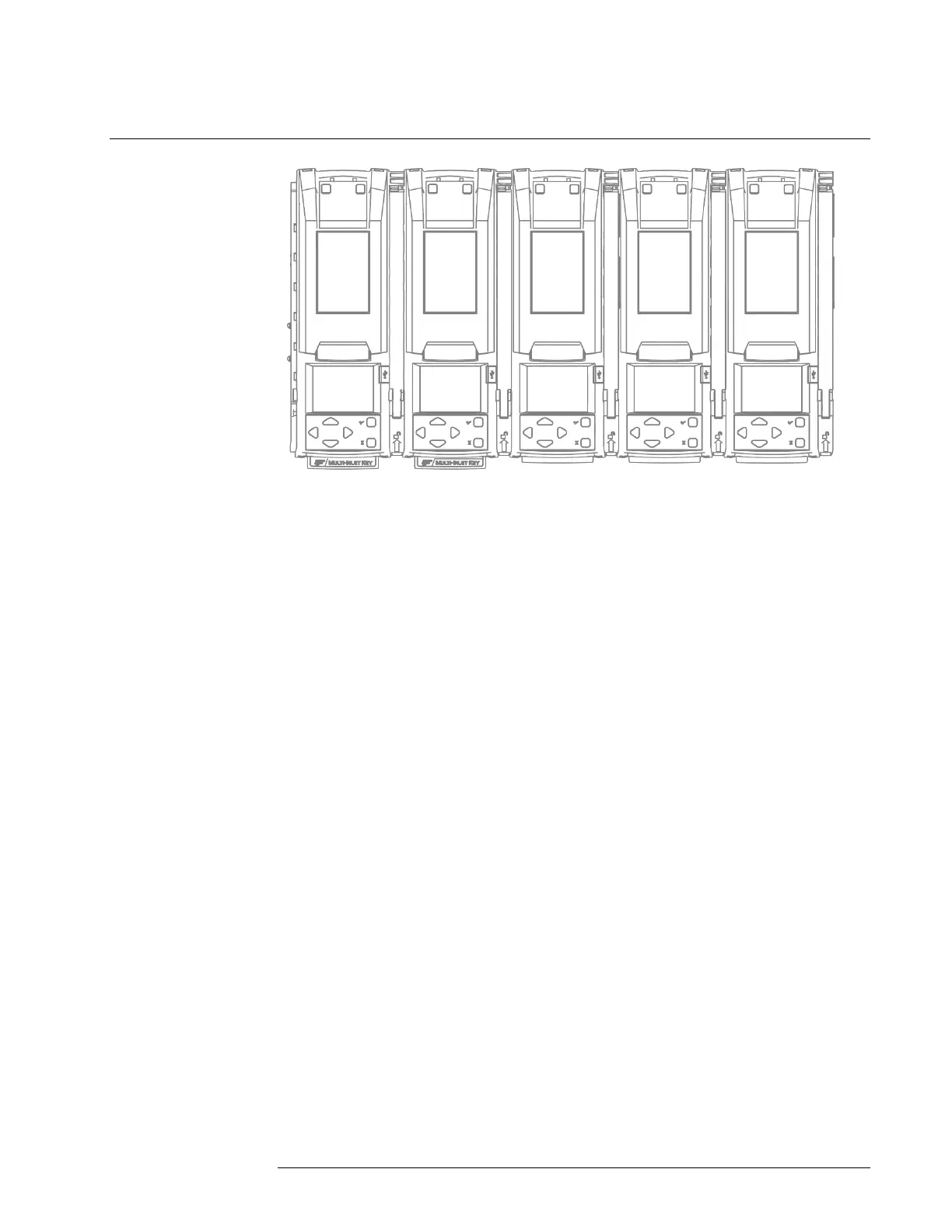

Work Plan: Assemble Groups of up to Five Connected Modules
Up to five modules may be connected to form a group. Connected modules share the power
supply, exhaust tubing, inlet filter, connected test gas cylinders and network connection. Follow
these steps to assemble and prepare groups of up to five connected modules for first use:
1. Place the modules and component parts on a clean, dry work surface.
2. Verify that the appropriate inlet keys are inserted. Replace the inlet keys if necessary. For
more information, see Inlet Keys.
3. Assemble the stand or mount the module on a wall or DIN rail if necessary. For more
information, see:
• Assemble the Stand.
• Mount on a Wall.
• Mount on Parallel DIN Rails.
4. Connect up to 5 modules. For more information, see:
• Connecting Modules.
• Mounting Connected Modules on a Wall.
5. Prepare the connected modules for use. For more information, see Prepare Modules for
Use.
a) Attach the end plate to the last module in the group. See Attach the End Plate.
b) Connect an inlet filter to the purge inlet on the first module in the group. For more
information, see Connect the Inlet filter.
c) Insert an inlet plug into each unused inlet on the first module in the group. For
more information, see Insert the Inlet Plugs.
d) Connect the exhaust tubing to the first module in the group. For more
information, see Connect the Exhaust Tubing.
e) Connect the power to the first module in the group.
f) Connect to a network. See Connect the Module to a Network.
6. Connect the calibration gas cylinder or cylinders, and then configure the gas inlets. For
more information, see Connect a Calibration Gas Cylinder and Configure Gas Inlets.
