INTELLIDOX DOCKING MODULE USER MANUAL || DETECTOR OPERATIONS
HONEYWELL PAGE 58 OF 119
Transfer Datalogs from a Detector
There are two ways to transfer data logs from a detector to the module:
1. Manually, via the module operations menu, or
2. Automatically, by configuring detector settings via Safety Suite Device Configurator or
Safety Suite.
Transferring Data logs via the Detector Operations Menu
1. Insert a compatible detector into the module. Detector identification is displayed on
the LCD. After the detector is recognized, procedures specified to occur automatically
on insertion are performed.
2. When the module is configured to transfer data logs on insertion, the data logs are
transferred after other procedures specified to occur automatically on insertion are
completed. Go to step 5.

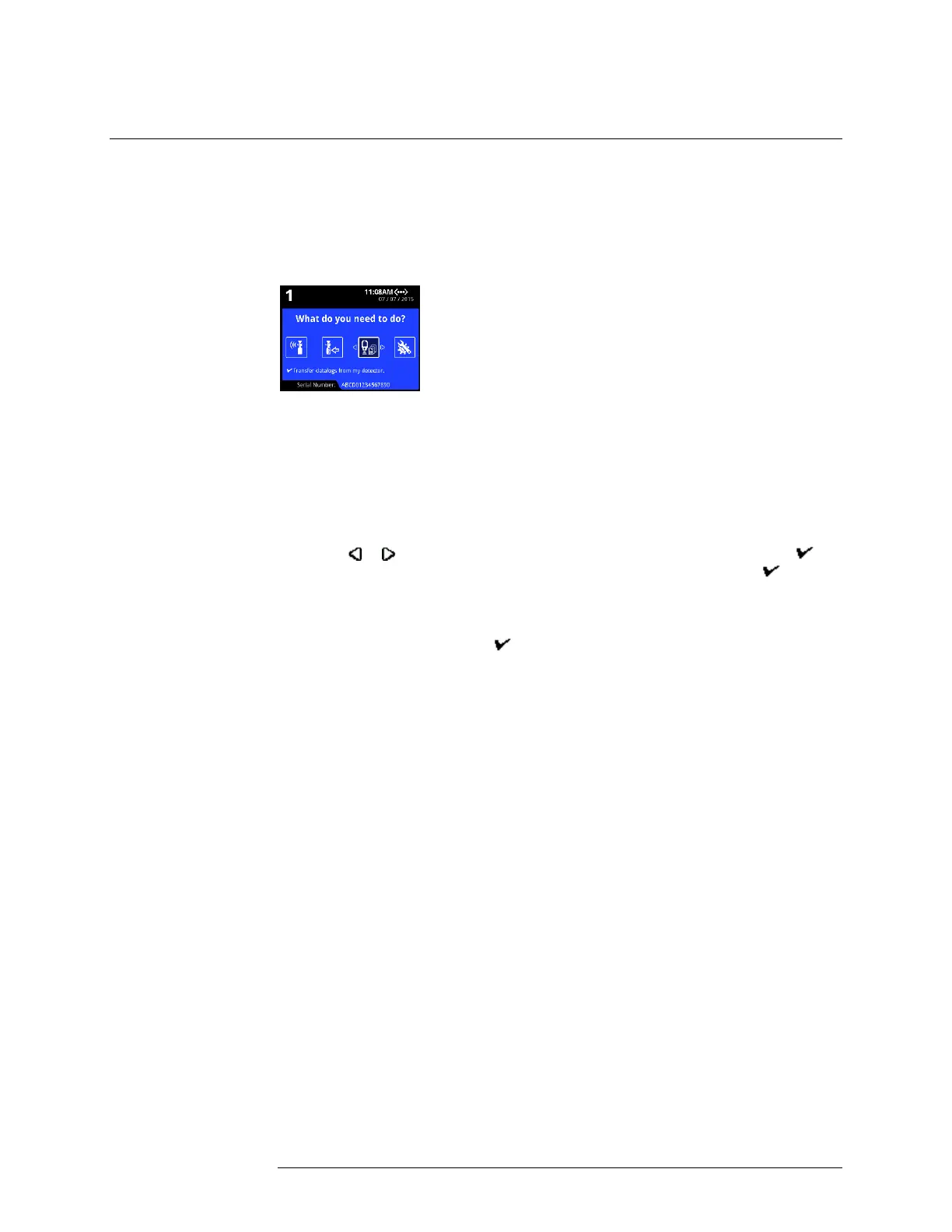

3. When the module is NOT configured to transfer data logs on insertion, What do you
need to do? is displayed after the detector is recognized. Go to step 4.
4. Press or to select Transfer datalogs from my detector, and then press . If
the procedure is passcode-protected, then enter the passcode and press to
continue. The LCD changes to yellow. A progress bar and the Datalog file transfer
message are displayed.
5. When the transfer is complete, the LCD changes to green and Datalog transfer
complete is displayed. Press to continue.
6. Open the lid and remove the detector, or perform other procedures.
Transferring Datalogs Automatically by Configuring Settings via Safety
Suite Device Configurator Software
For more information about creating and transferring configuration settings files via Safety
Suite Device Configurator software, refer to Error! Reference source not found. For more
information about configuring settings via Safety Suite Device Configurator software, refer
to the Safety Suite Device Configurator operator manual.
