INTELLIDOX DOCKING MODULE USER MANUAL || PREPARE MODULES FOR USE
HONEYWELL PAGE 27 OF 119

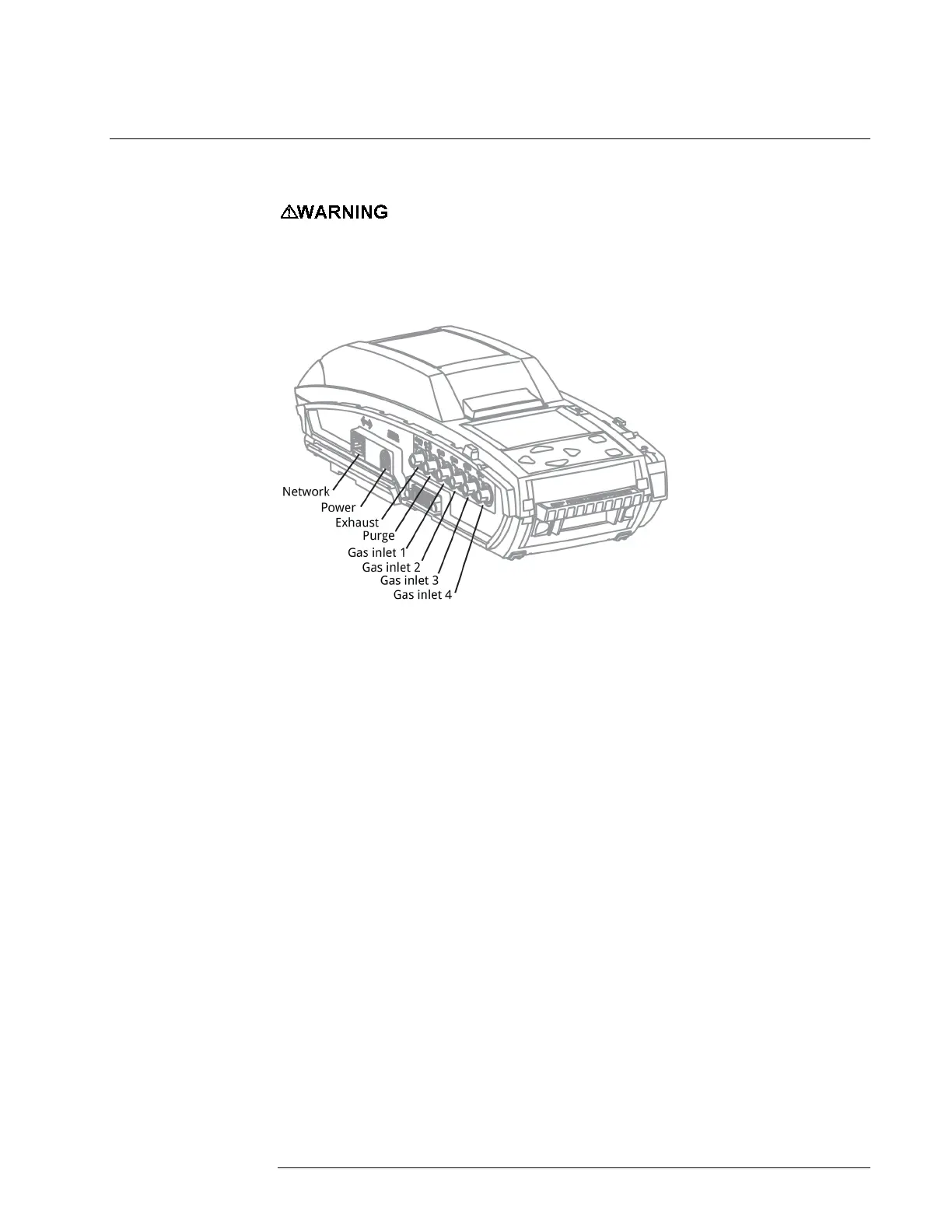

Connect the Exhaust Tubing
Each IntelliDoX Enabler Kit includes tubing that may be cut to a length that is appropriate for
the exhaust inlet.
The maximum recommended exhaust tubing length is 15 meters (49.5 feet).
Ensure the exhaust line is not connected to a negative pressure system.
Connecting the Exhaust Tubing
1. Inspect the tubing to ensure that it is free of obstructions and defects.
2. Cut tubing to a length that is appropriate for exhaust, and then attach a male quick
connect fitting to one end.
3. Connect the exhaust tubing to the exhaust outlet using the quick connect fitting.
4. Verify that the exhaust tubing is not connected to a negative pressure system, or
obstructed in any way.
