INTELLIDOX DOCKING MODULE USER MANUAL || REPLACE DETECTOR

CRADLE AND CALIBRATION INSERT

HONEYWELL PAGE 96 OF 119

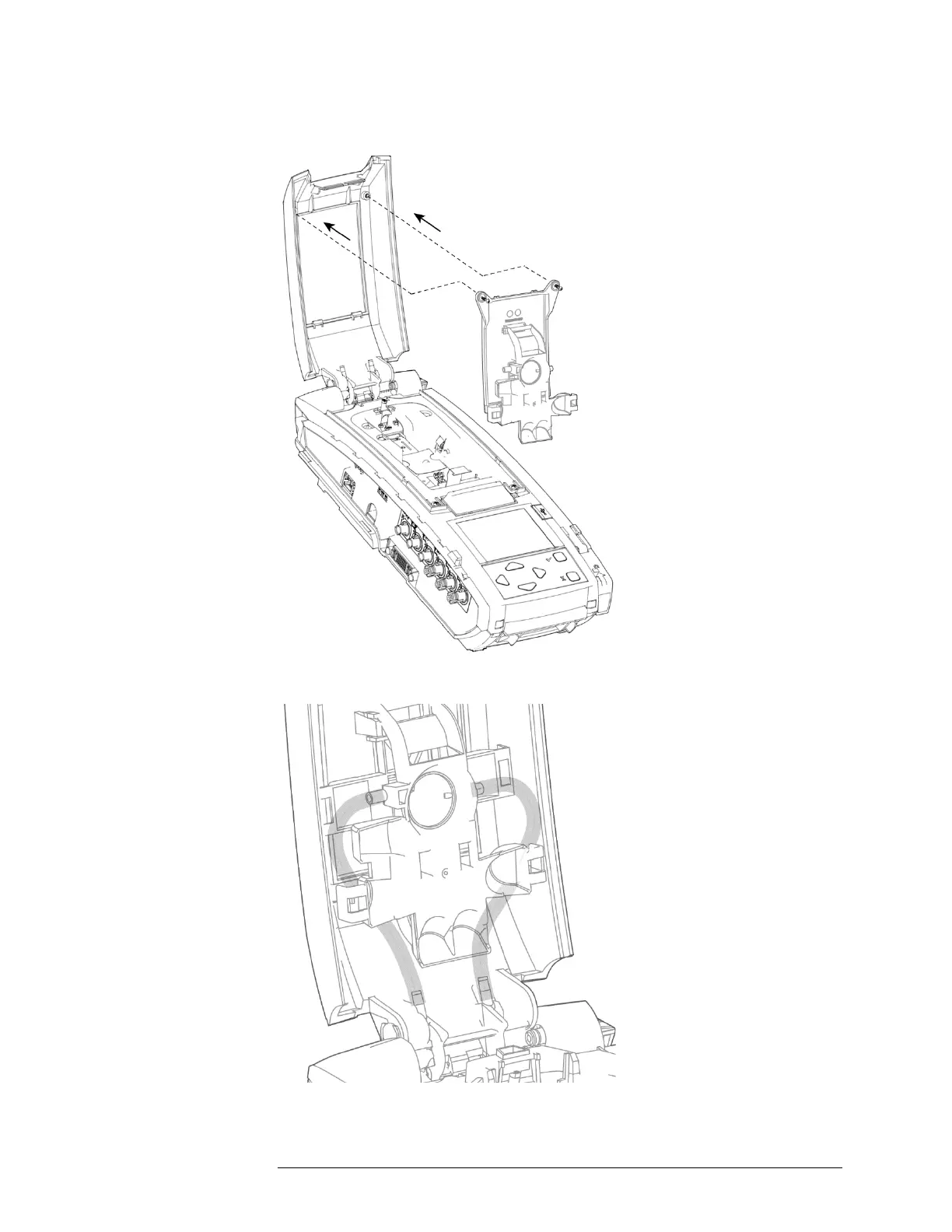

6. Slide the calibration insert tabs under the IntelliDoX lid assembly to place the

replacement calibration insert into the IntelliDoX.

7. Use a screwdriver to fasten the two screws on the replacement calibration insert.

8. Connect the gas tubes to the IntelliDoX.
