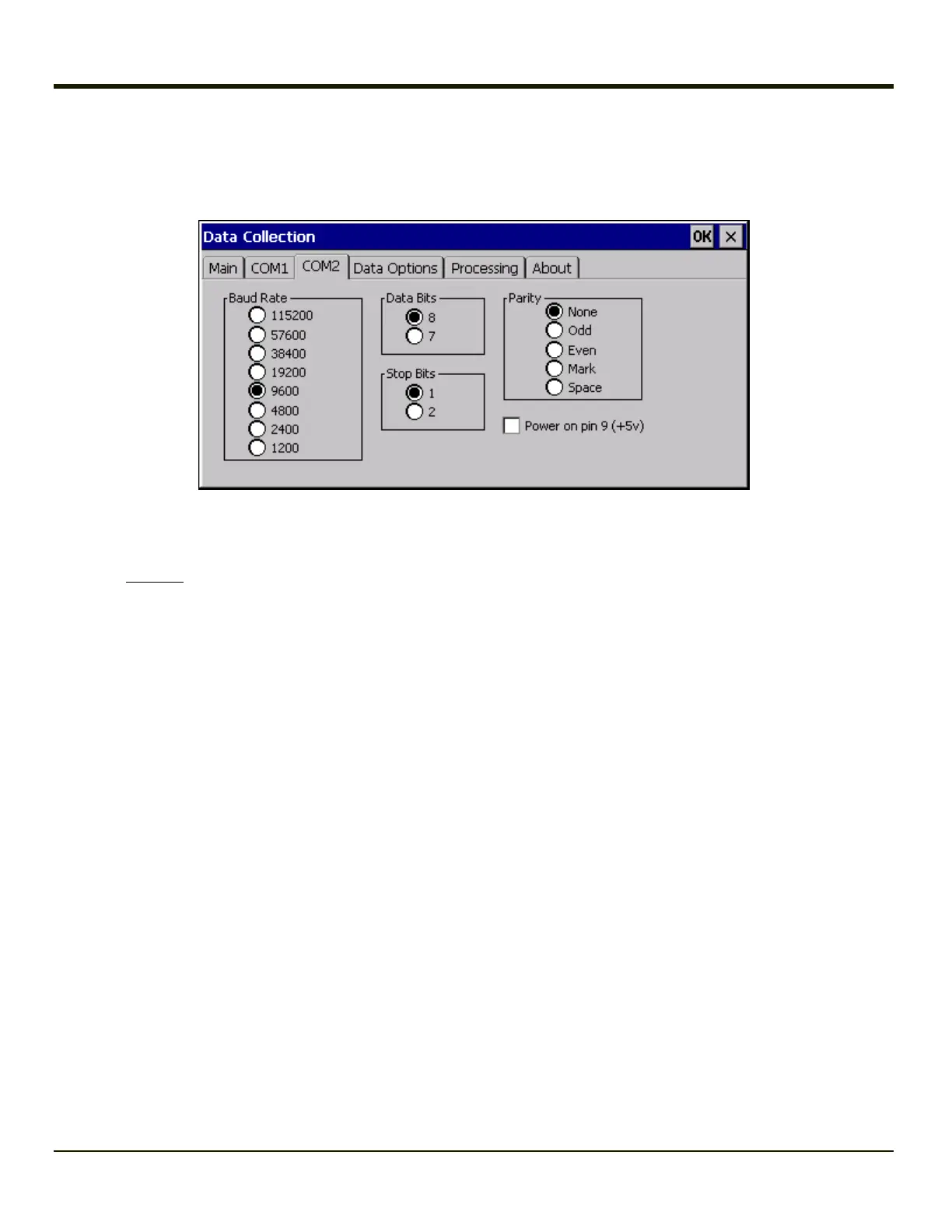

COM2 Tab
Start > Settings > Control Panel > Data Collection > COM2
This panel sets communication parameters for any device connected to the external port.
Adjust the settings and click the OK button to save the changes. Any changes take effect immediately.
This panel does not configure the connected device. Please refer to the documentation for the external connected or wireless
device for information on configuring the device.
Note: COM default values are restored after a cold boot or operating system upgrade. COM2 supports 5V
switchable power on Pin 9 for tethered scanners.
Power on Pin 9
To configure the COM port to supply power to an external scanner tethered to the COM2 port, check the checkbox for Power
on Pin 9 (+5V). The default is On (enabled).
The tethered external scanner is powered by the external device power source.
Wireless external scanners use their own power source.
3-80
