Honeywell Thor VM1 Reference Guide

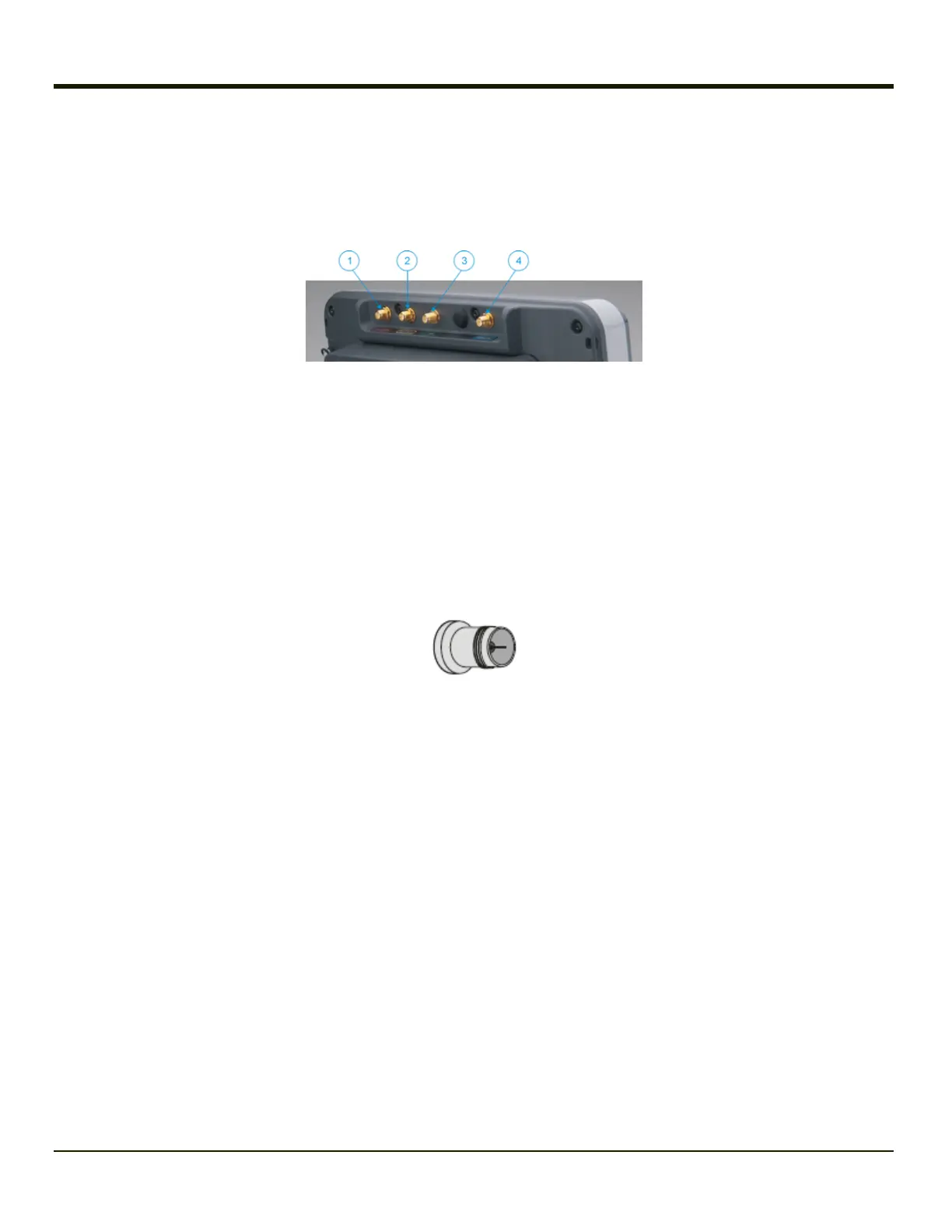

Antenna Connections
The Thor VM1 is equipped with an 802.11 radio and can be ordered with an internal antenna or external remote mount for
antennas. When the Thor VM1 is ordered with internal antennas, the external antenna connectors are not used. GPS and
WWAN are optional on the Thor VM1 and require external remote mount antennas.
1. WI-FI (MAIN) (Red label) 802.11 Main External Antenna Connector
2. WI-FI (AUX) (Yellow label) 802.11 Auxiliary External Antenna Connector
3. GPS (Green label) GPS Antenna Connector
4. MOBILE NET (Blue label) WWAN Antenna Connector
Antenna Connector Pin
When the Thor VM1 is ordered with the internal antenna option, the 802.11 antenna connectors on the back are not connected
to the 802.11 radio. Instead the internal antenna is connected to the 802.11 radio.
Vehicle Remote Antenna Mount
The external antennas can be remotely mounted on the vehicle. See the Thor VM1 Vehicle Mounting Reference Guide for
instruction. External antenna kits are available for the 802.11 WiFi radio, GPS and WWAN.
Internal Antenna
If the internal antenna option is ordered, an antenna is mounted inside the Thor VM1. The internal antenna is not user
accessible.
2-23
