Honeywell Thor VM1 Reference Guide

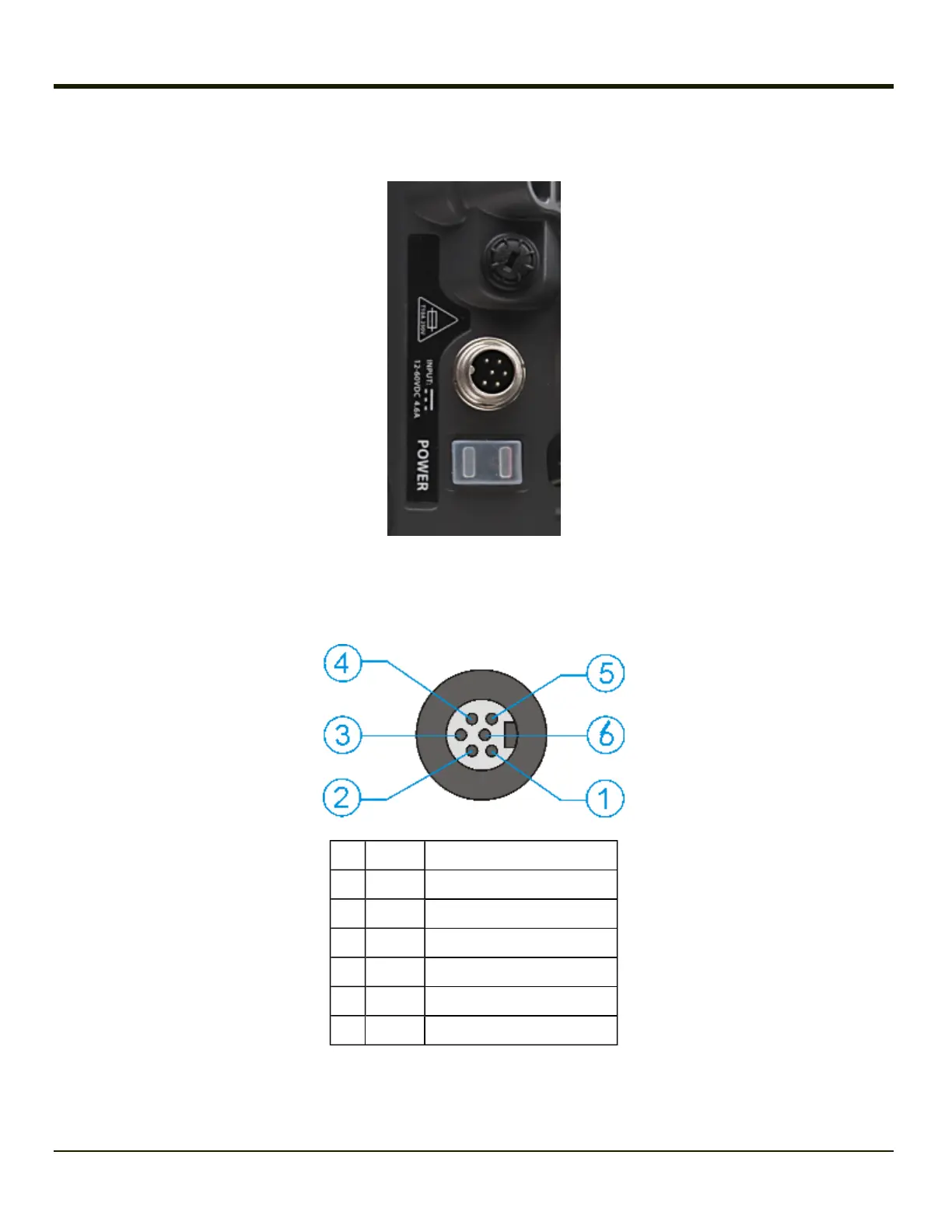

Power Supply Connector
Power is supplied to the Thor VM1 through the power connector. Additionally this assembly provides a connection point for the
vehicle’s chassis ground to be connected internally to the conductive chassis of the computer.
The Thor VM1 internal power supply can accept DC input voltages in the range of 10 to 60 Volts DC.
Pin Signal Description
1 V In+ 10-60V DC input +
2 V In+ 10-60V DC input +
3 V In- input -
4 V In- input -
5 GND Chassis ground
6 Ignition +0V to 60V to start terminal
2-17
