Honeywell Thor VM1 Reference Guide

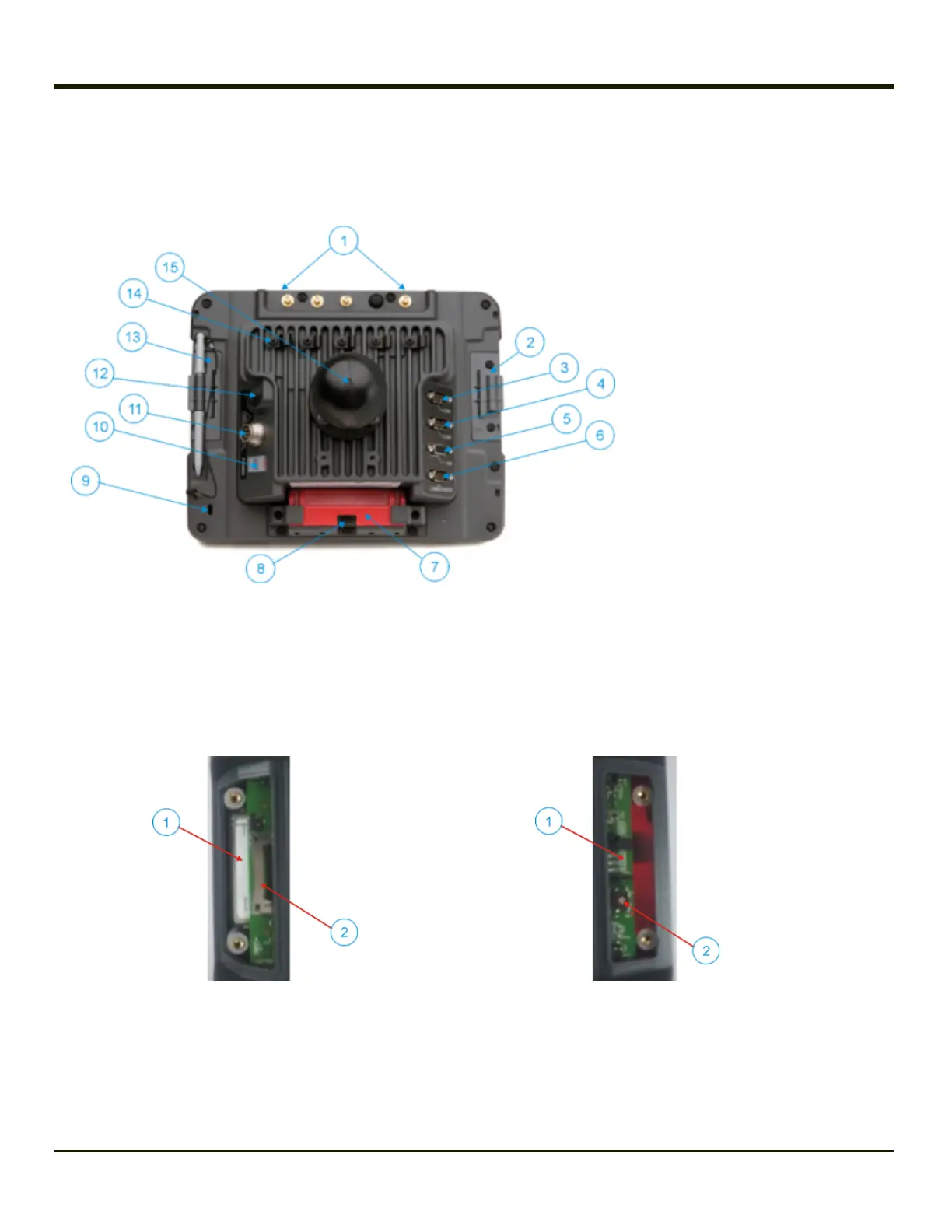

Back View with Quick Mount Smart Dock
1. Antenna Connectors (on Thor VM1)
2. SIM card Access Panel (on Thor
VM1)
3. COM1 Connector (on Dock)
4. COM2 Connector (on Dock)
5. USB Connector (on Dock)
6. CAN/Audio Connector (on Dock)
7. Quick Release Handle (On Thor
VM1)
8. Provision for Padlock (on Thor VM1
and Dock)
9. Provision for Laptop Security Cable
(on Thor VM1)
10. Power Switch (on Dock)
11. Power Connector (on Dock)
12. Fuse (on Dock)
13. SD Card Access Panel (On Thor
VM1)
14. Strain Relief Clamps (on Dock)
15. RAM Ball (on Dock)
Access Panels
Access Panel Door is labeled with
SSD and SD.
1. CompactFlash Hard Drive
2. SD (Secure Digital)
Memory Card Slot
Access Panel Door is labeled with SIM.
1. SIM card slot for WWAN radio
2. UPS battery disconnect
1-4
