Custom Identifiers
Code IDs are defined by the user for external bar code scanners. These are called custom Code IDs and are included in the
Symbology drop down box in the Symbology dialog, unless Enable Code ID is set to None. When the custom Code ID is
found in a bar code, the configuration specified for the custom Code ID is applied to the bar code data.
When Enable Code ID is set to None, custom code IDs are ignored.
Note: When Strip: Code ID is enabled, the entire custom Code ID string is stripped (i.e., treated as a Code
ID).

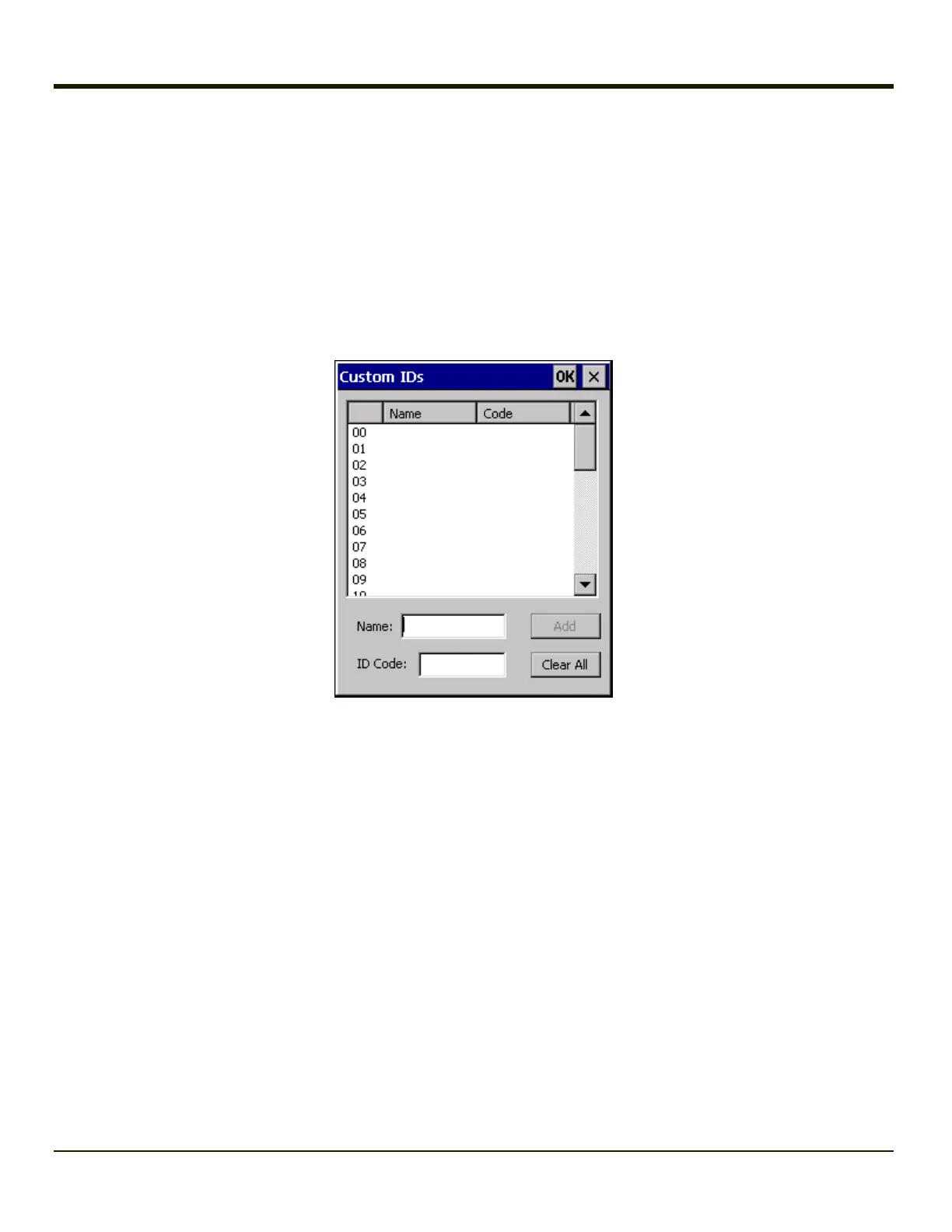

The dialog box shown below allows the custom Code IDs to be configured. When incoming data is checked for a custom ID
code, the list is compared in the order displayed in this dialog box.
After adding, changing and removing items from the Custom IDs list, click the OK button to save changes and return to the Bar
Code panel.
Parameters
Name text box
Name is the descriptor that is used to identify the custom Code ID. Names must be unique from each other; however, the
Name and ID Code may have the same value. Name is used in the Symbology drop down box to identify the custom Code ID
in a user-friendly manner. Both Name and ID Code must be specified in order to add a custom Code ID to the Custom IDs list.
ID Code text box
ID Code defines the data at the beginning of a bar code that acts as an identifier (the actual Code ID). Both Name and ID Code
must be specified in order to add a custom Code ID to the Custom IDs list.
3-92
