How the Oscilloscope Makes Waveform
Measurements
This chapter describes the process the oscilloscope uses to make
waveform measurements. It also describes the parameters that are
measured and how to set up measurements for the best solution. Like
any tool, it is important to understand how to use the tool, its
limitations, and methods that may overcome some of the
shortcomings.
The waveform in figure 13-1 shows the pulse parameters that the
oscilloscope measures. Hewlett-Packard has been using these
parameters in its measurements for the past 10 years. This chapter
defines these parameters and discusses how they are measured.

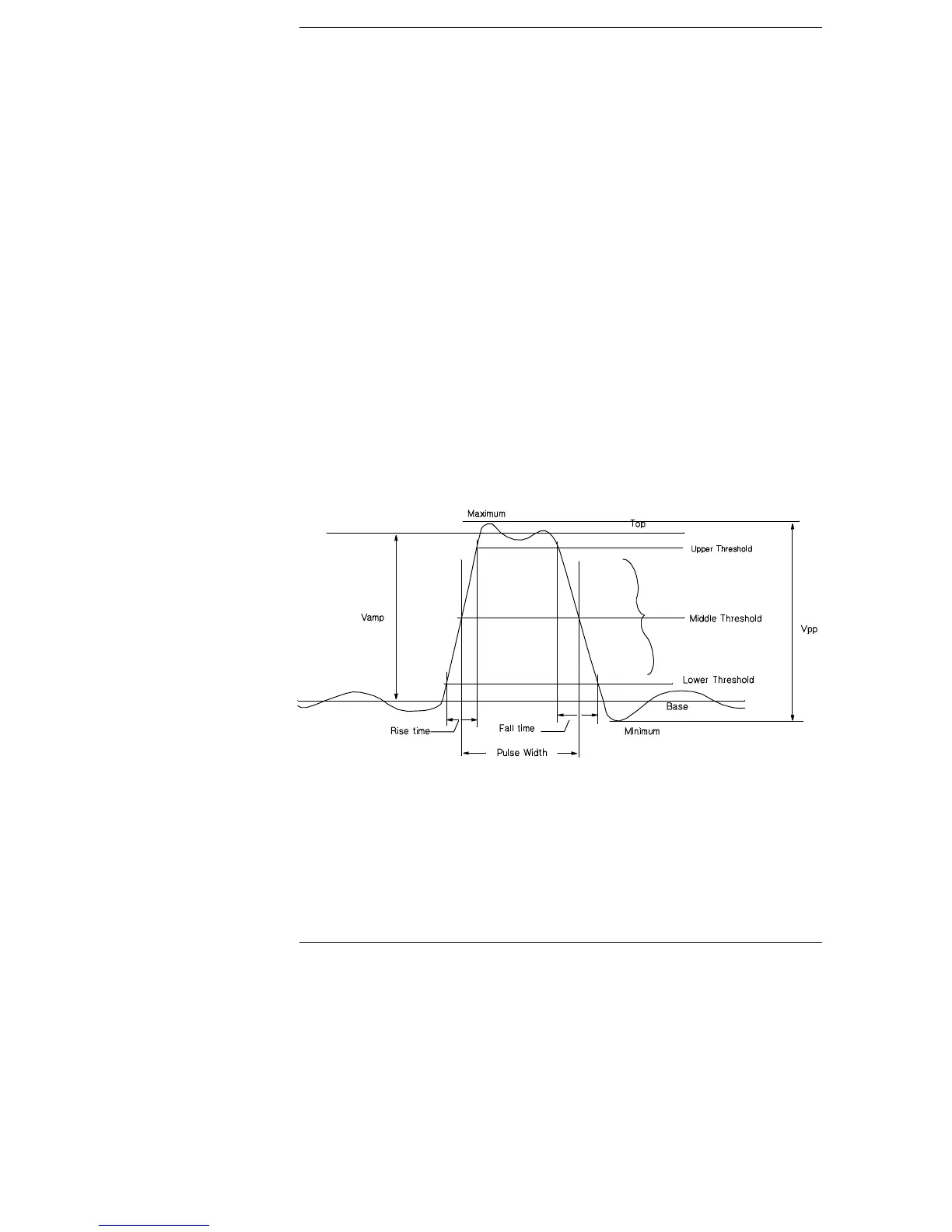

Pulse parameters the oscilloscope measures
Figure 13–1
