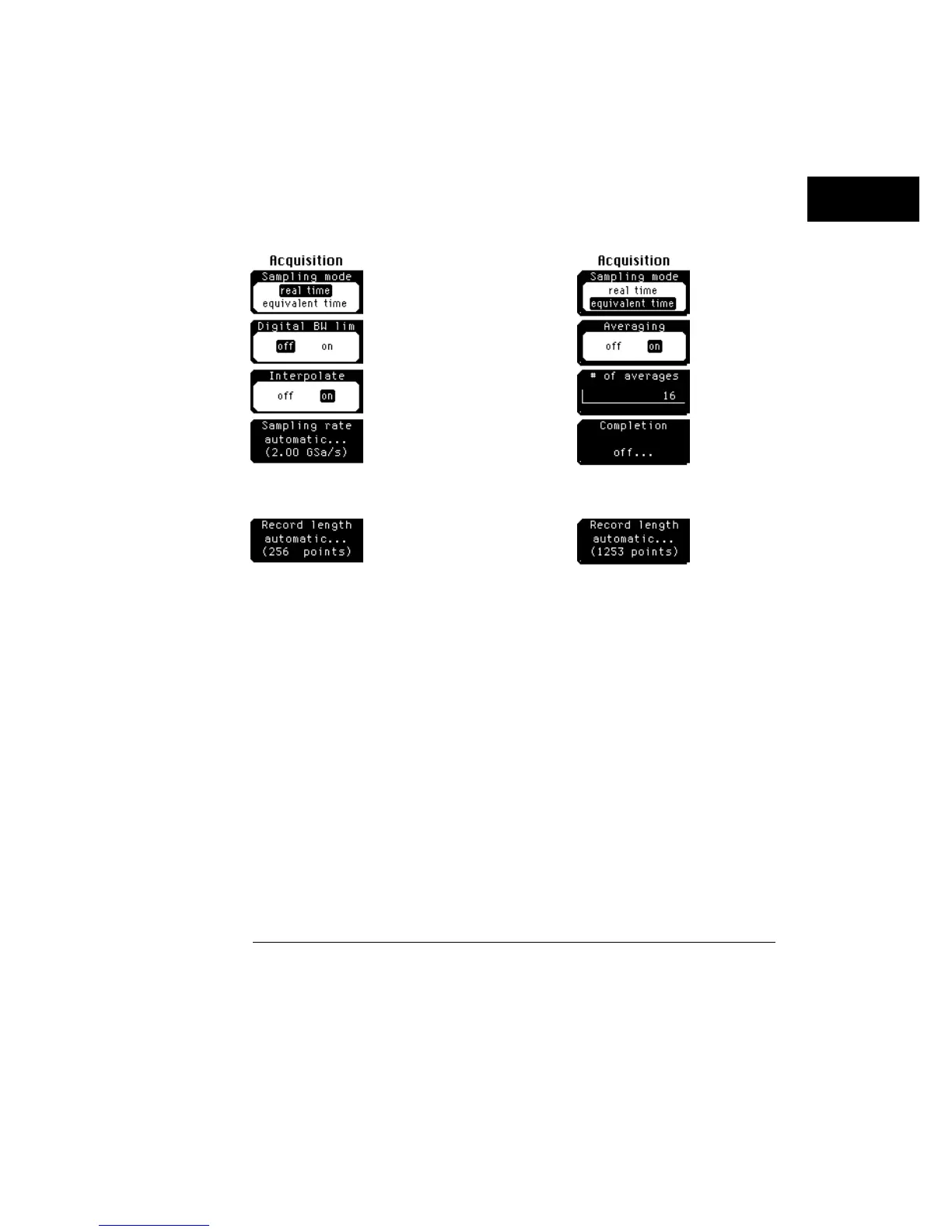

When you press the Acquisition hardkey, the sampling mode you

select determines which of these two softkey menus is displayed. The

menu on the left is for the real time-time sampling mode, while the

menu on the right is for the equivalent-time sampling mode.

Acquisition Menu

3–3
