ES User’
s Guide
3-79
Making Measurements
Measuring Impedance using the Smith Chart
3.

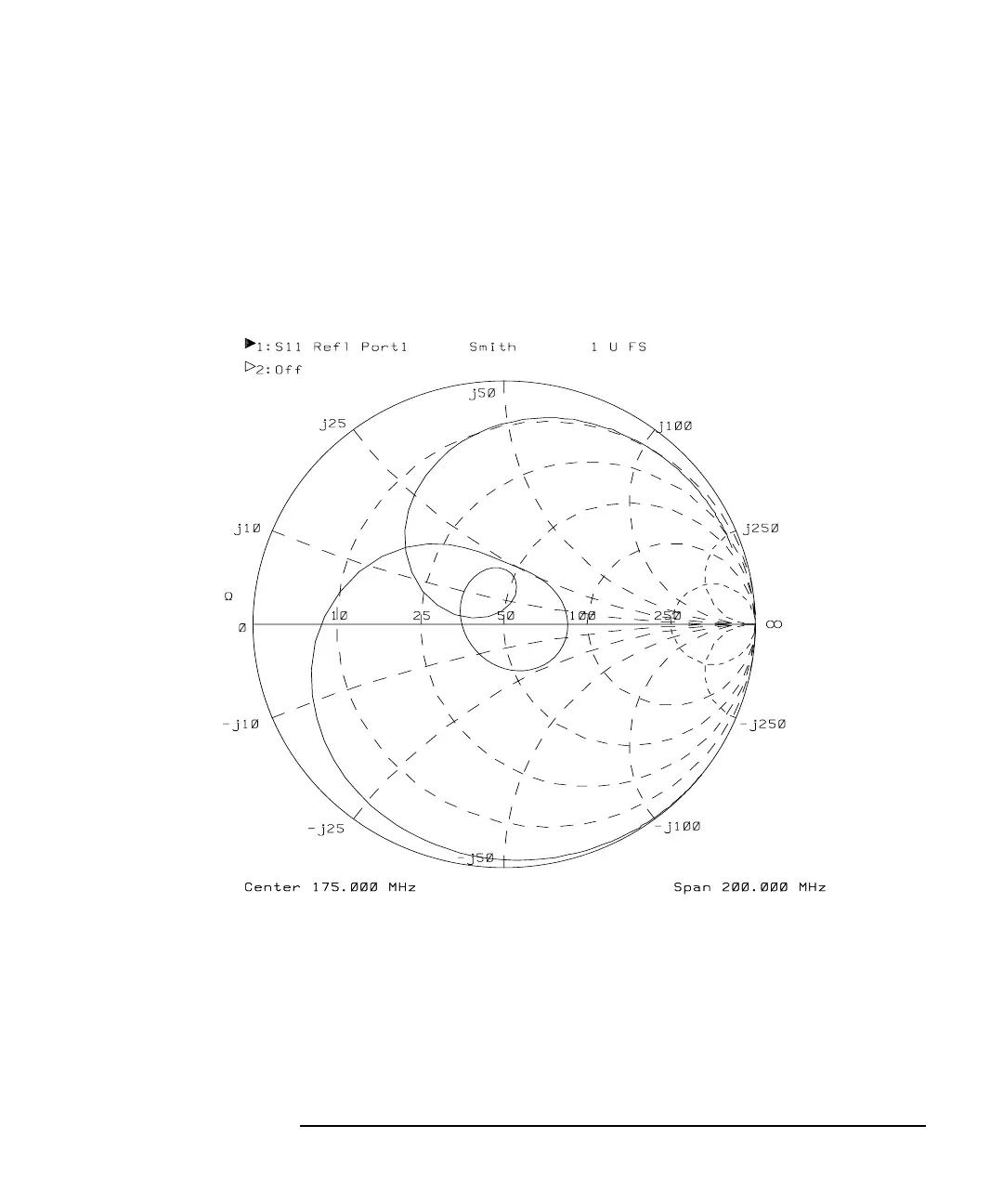

Figure 3-35
shows an example of an actual measurement. Note the
marker readout in the upper right corner of the display
. The marker
values are frequency
, resistance, reactance
, and the equivalent
capacitance or inductance, respectively
.
Figure 3-35
Example of an Impedance Measurement
