4-16
ES User’
s Guide
Using Instrument Functions
Using Markers
Connect a multi-pole filter and press
and
if measuring a multi-pole bandpass filter
, or
if measuring a multi-pole notch filter
.
See
Figure 4-10, “Multi-P
eak Search Mode,
”
and
Figure 4-11,
“Multi-Notch Search Mode
,”
for examples of a multi-peak and a
multi-notch search, respectively
.

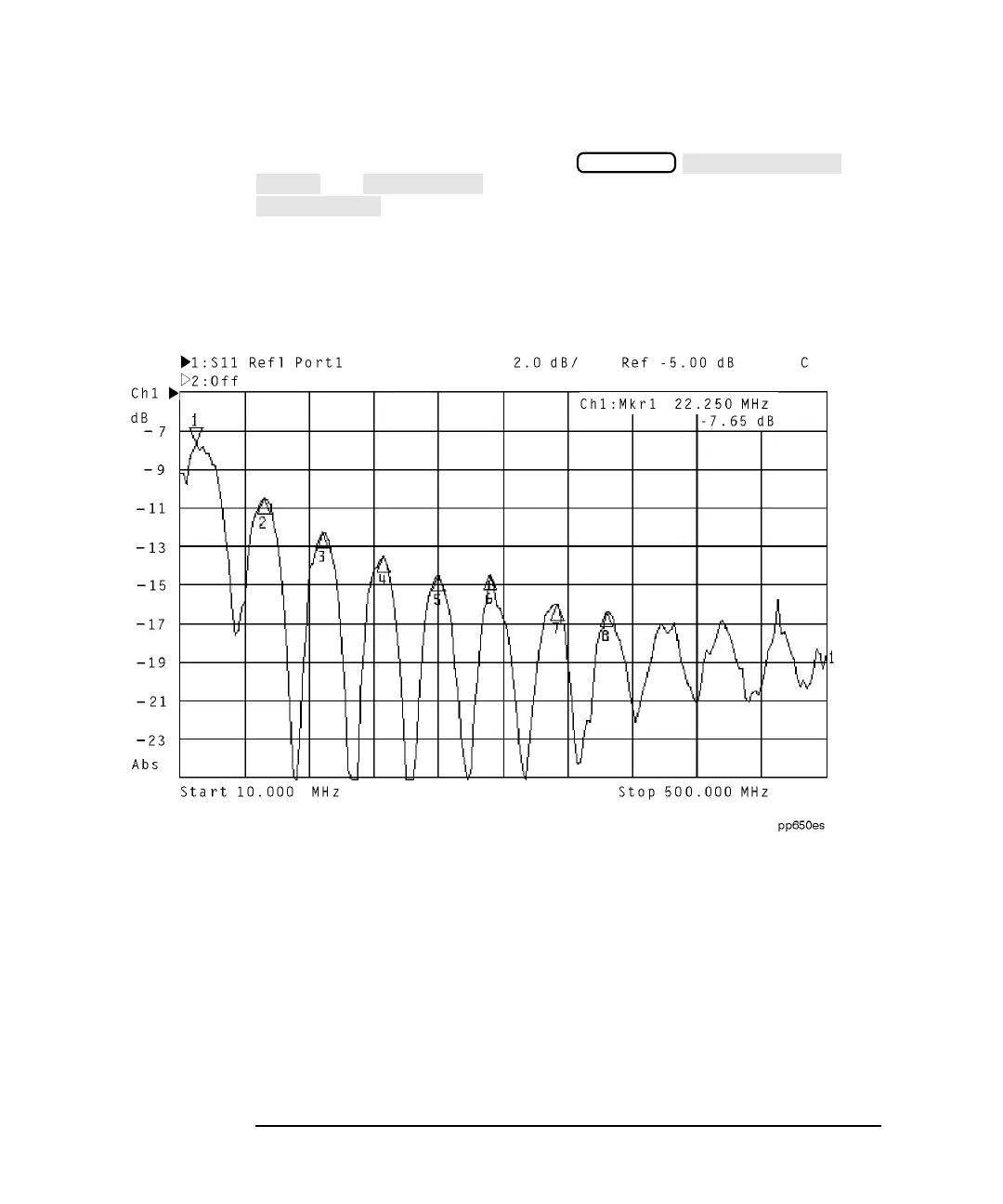

Figure 4-10
Multi-P
eak Search Mode
MARKER
Marker Search
More
Multi P
eak
MultiNotch
149
151
