ES User’s Guide 9-3
Specifications
System Performance

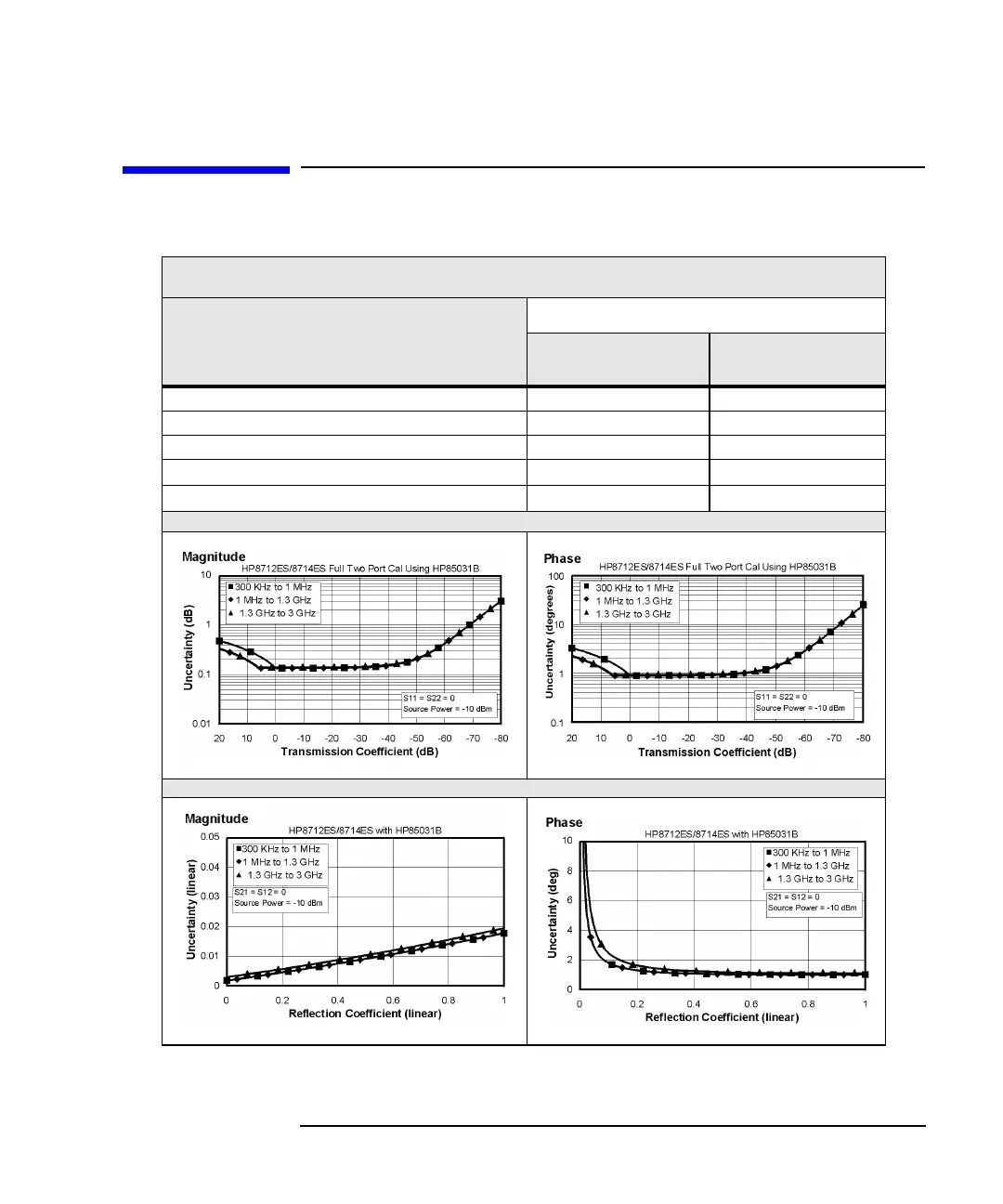

Table 9-1 System Performance, Corrected, 50Ω, 2-Port Calibration
a. These specifications apply for measurements made using “fine” bandwidth, no averaging, and at an environmental temper-
ature of 25°±5° C, with less than 1° C deviation from the calibration temperature.
b. For transmission measurements, the effect of crosstalk is disregarded and S
12
= S
21
for S
21
<1.0, S
12
=
1
/ S
21
for S
21
> 1.0.
HP 8712ES/8714ES (50 Ω)
HP 85031B (7-mm, 50 Ω) Cal Kit, User 2-Port Calibration
Description
Specification
a
(in dB)
300 kHz
to 1.3 GHz
1.3 GHz
to 3 GHz
Directivity 55 51
Source Match 51 49
Load Match 55 51
Reflection Tracking
±0.012 ±0.005
Transmission Tracking
±0.033 ±0.035
Transmission Uncertainty (Specification)
a
,
b
Reflection Uncertainty (Specification)
a
