IPv6 PIM-SM admin-scope zone configuration example
Network requirements
• Receivers receive VOD information through multicast. The entire IPv6 PIM-SM domain is divided
into IPv6 admin-scope zone 1, IPv6 admin-scope zone 2, and the IPv6 global zone. Switch B,
Switch C, and Switch D are ZBRs of these three domains respectively.
• Source 1 and Source 2 send different multicast information to FF14::101. Host A receives the
multicast information only from Source 1, and Host B receives the multicast information only from
Source 2. Source 3 sends multicast information to multicast group FF1E::202. Host C is a multicast
receiver for this multicast group.
• VLAN-interface 101 of Switch B acts as a C-BSR and C-RP of admin-scope zone 1, which serves the
IPv6 multicast groups with the Scope field value in their group addresses being 4. VLAN-interface
104 of Switch D acts as a C-BSR and C-RP of admin-scope zone 2, which also serves the IPv6
multicast groups with the Scope field value in their group addresses being 4. VLAN-interface 109
of Switch F acts as C-BSRs and C-RPs of the global scope zone, which serves IPv6 multicast groups
with the Scope field value in their group addresses being 14.
• MLDv1 is required between Switch A, Switch E, Switch I, and their respective receivers.
Network diagram

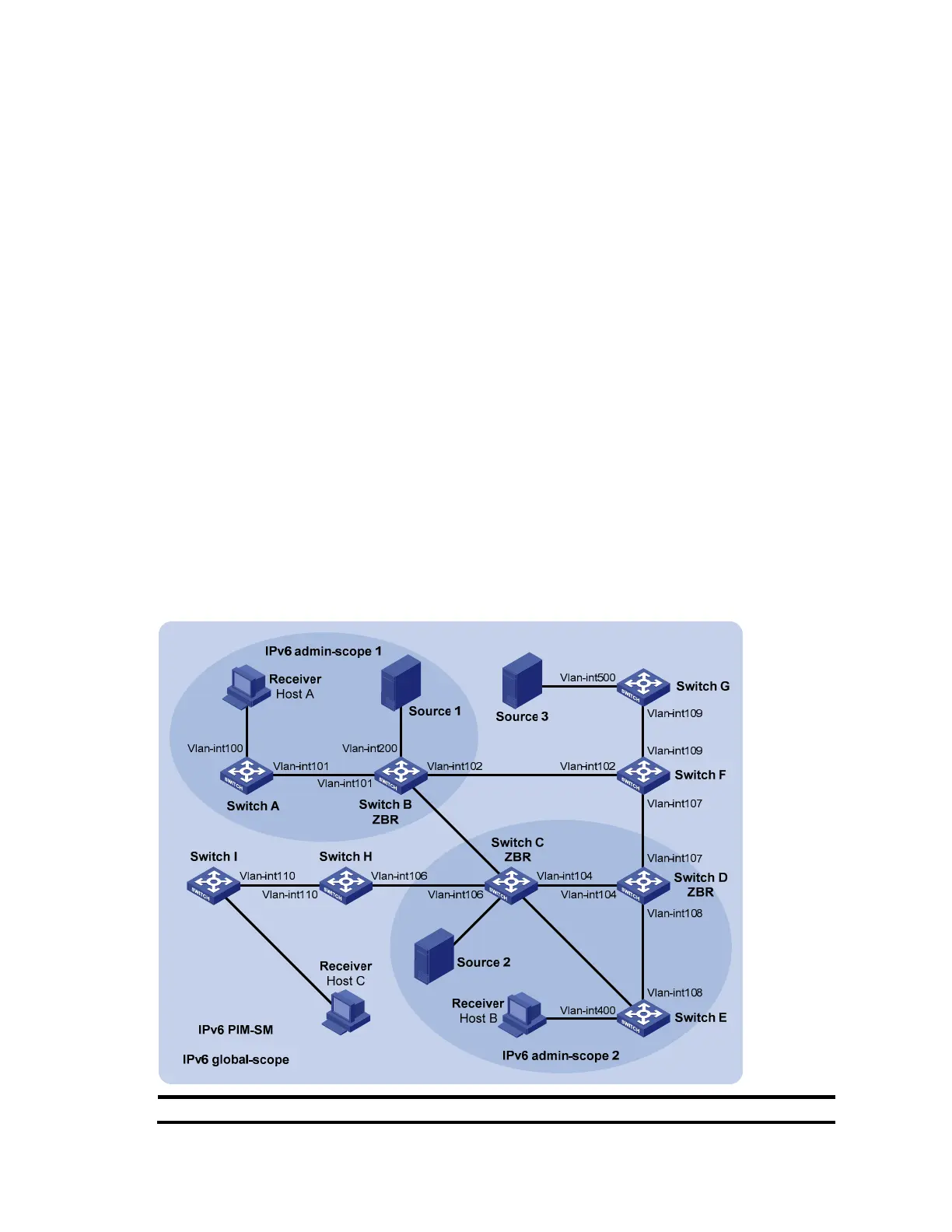

Figure 101 Network diagram for IPv6 PIM-SM admin-scope zone configuration
Vlan-
i
nt1
05
Vl
an
-
int103
Vlan-int300
Vlan-int105
Vl
a
n-
int600
Vlan-
i
nt1
0
3
