324

Upstream interface: Vlan-interface103

Upstream neighbor: 3002::1

RPF prime neighbor: 3002::1

Downstream interface(s) information:

Total number of downstreams: 1

1: Vlan-interface400

Protocol: mld, UpTime: 00:13:25, Expires: -

MLD proxying configuration example

Network requirements

As shown in Figure 85, IPv6 PIM-DM is required to run on the core network. Host A and Host C in the

stub network receive VOD information destined to multicast group FF3E::101.

Configure the MLD proxying feature on Switch B so that Switch B can maintain group memberships and

forward IPv6 multicast traffic without running IPv6 PIM-DM.

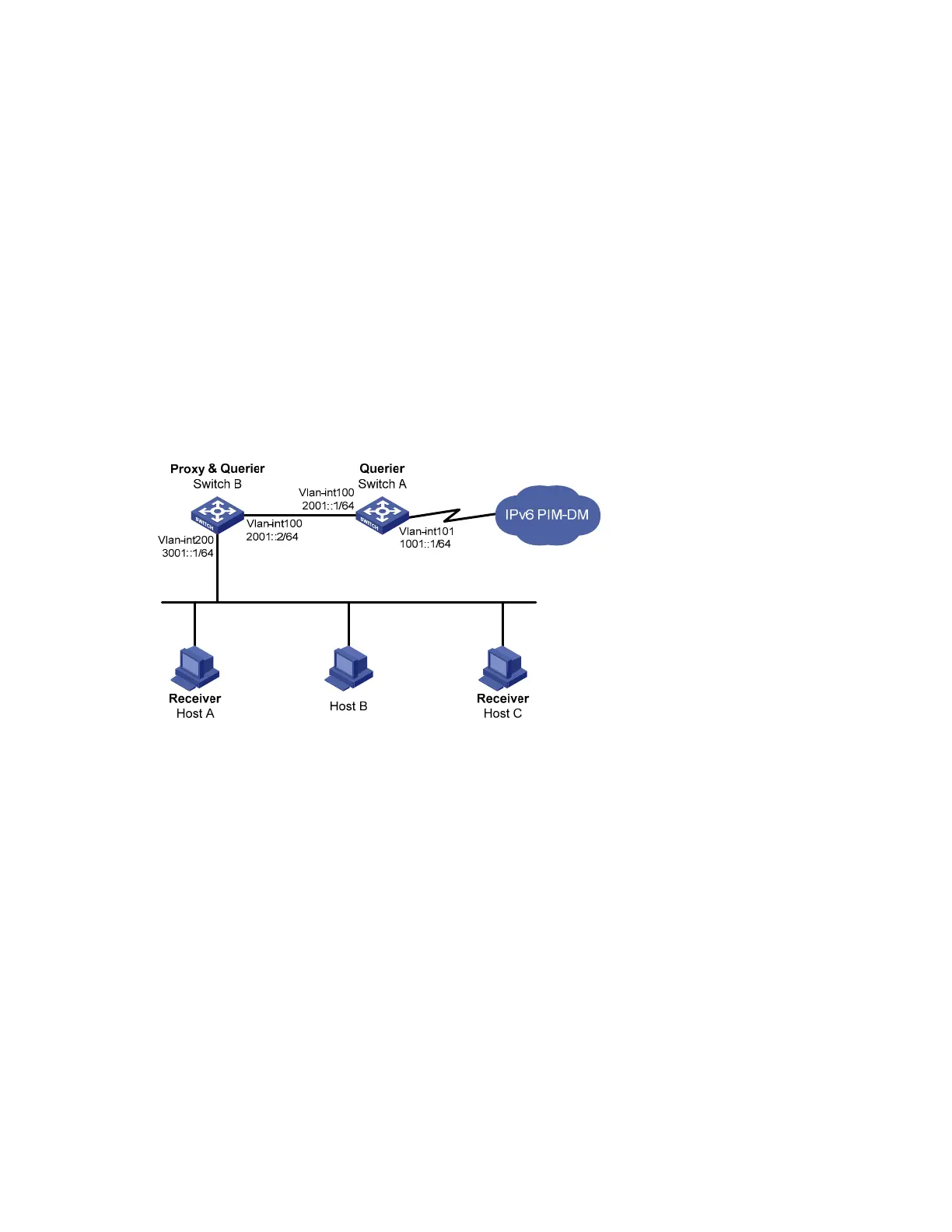

Figure 85 Network diagram for MLD proxying configuration

Configuration procedure

1. Enable IPv6 forwarding and configure the IPv6 addresses

Enable IPv6 forwarding on each switch and configure the IPv6 address and prefix length of each

interface according to Figure 85. The det

ailed configuration steps are omitted here.

2. Enable IPv6 multicast routing, IPv6 PIM-DM, MLD, and MLD proxying respectively.

# Enable IPv6 multicast routing on Switch A, IPv6 PIM-DM on VLAN-interface 101, and MLD on VLAN-

interface 100.

<SwitchA> system-view

[SwitchA] multicast ipv6 routing-enable

[SwitchA] interface vlan-interface 101

[SwitchA-Vlan-interface101] pim ipv6 dm

[SwitchA-Vlan-interface101] quit

[SwitchA] interface vlan-interface 100

[SwitchA-Vlan-interface100] mld enable

[SwitchA-Vlan-interface100] pim ipv6 dm

[SwitchA-Vlan-interface100] quit
