IPv6 BIDIR-PIM configuration example

Network requirements

• In the IPv6 BIDIR-PIM domain in Figure 102. Source 1 and Source 2 send different multicast

information to IPv6 multicast group FF14::101. Host A and Host B receive multicast information from

the two sources.

• VLAN interface 102 of Switch C acts as a C-BSR, and loopback interface 0 acts as a C-RP of the IPv6

BIDIR-PIM domain.

• IGMPv2 will run between Switch B and Host A and between Switch D and Host B.

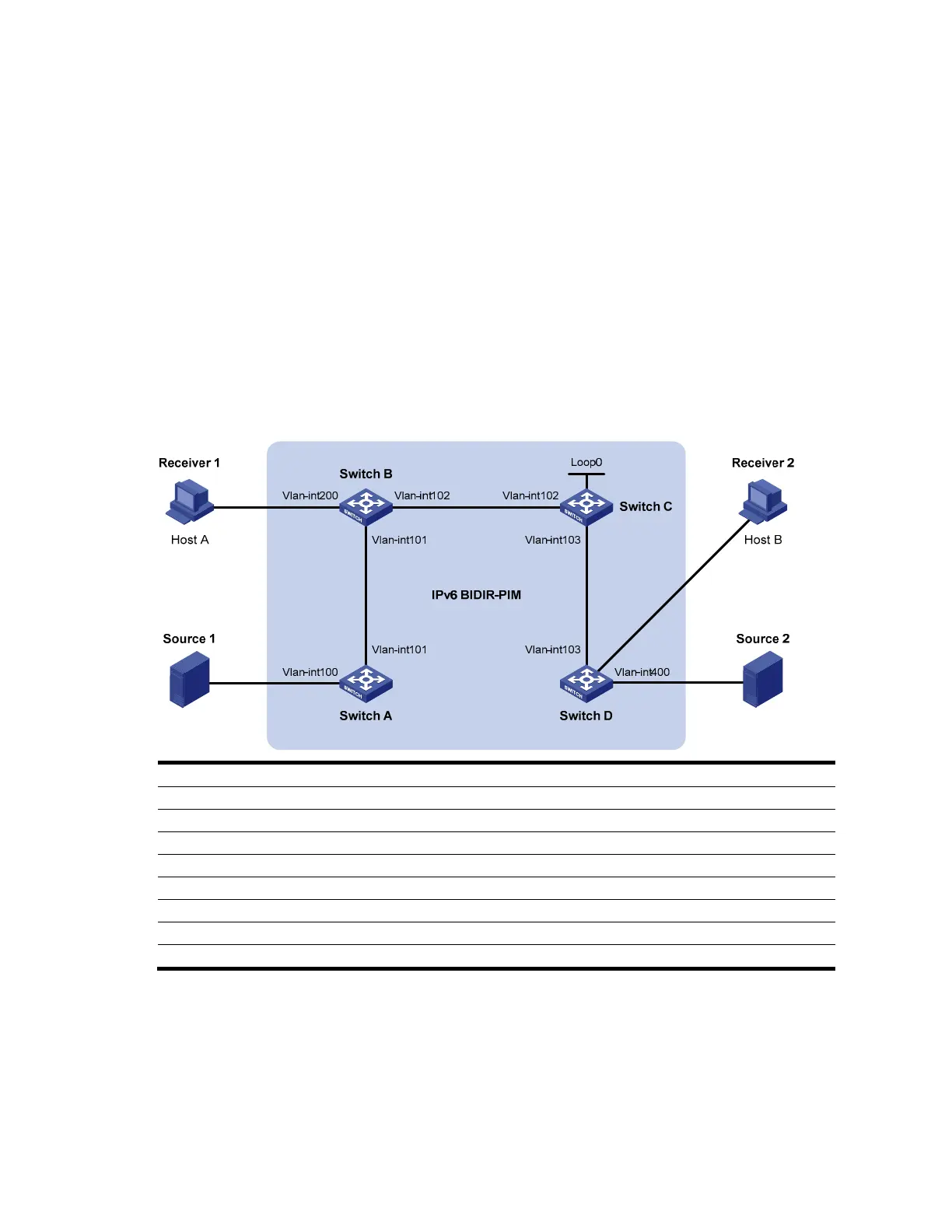

Figure 102 Network diagram for IPv6 BIDIR-PIM configuration

Vlan-

nt3

Device Interface IP address Device Interface IP address

Switch A Vlan-int100 1001::1/64 Switch D Vlan-int300 4001::1/64

Vlan-int101 1002::1/64 Vlan-int400 5001::1

Switch B Vlan-int200 2001::1/64 Vlan-int103 3001::2

Vlan-int101 1002::2/64 Source 1 - 1001::2/64

Vlan-int102 2002::1/64 Source 2 - 5001::2

Switch C Vlan-int102 2002::2

64 Receiver 1 - 2001::2

Vlan-int103 3001::1/64 Receiver 2 - 4001::2/64

Loop0 6001::1

128

Configuration procedure

1. Configure IPv6 forwarding, IPv6 addresses and IPv6 unicast routing protocol.

Enable IPv6 forwarding on each switch, and configure IPv6 address and prefix length for each interface

according to Figure 102 (details not sh

own).
