HP BladeSystem c3000 Setup And Installation

Installing components 44

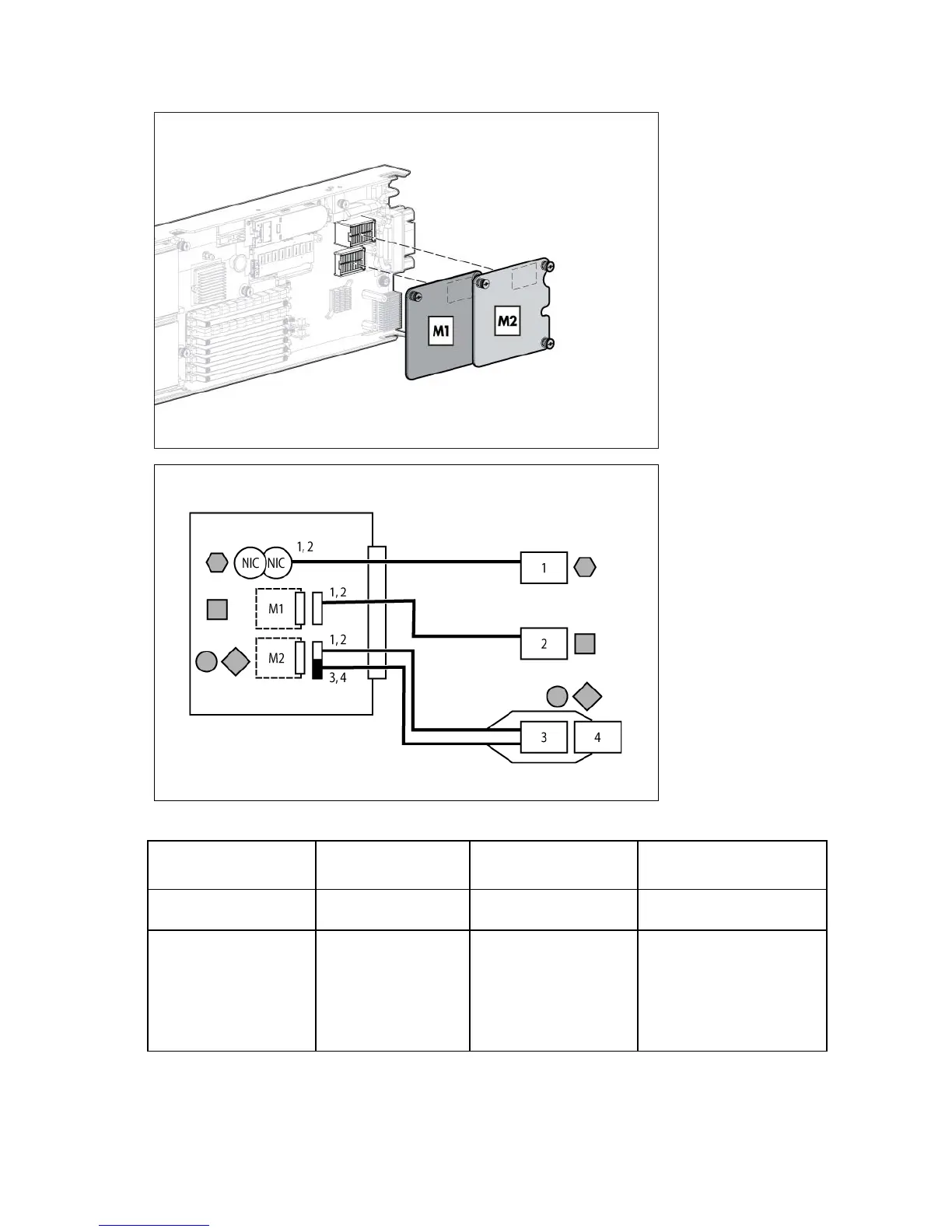

Mapping half-height blades
The following table lists the available configurations for half-height devices installed in device bay N (1–8)
Connection Port number Connects to
interconnect bay/port
Comments
Embedded NIC
NIC 1
NIC 2
1/Port N
1/Port N+8
One single-wide Ethernet
interconnect module
Mezzanine slot 1—1x or
2x cards (4x cards are not
supported in this slot)
1x/2x port 1
1x/2x port 2
2/Port N
2/Port N+8
•
One single-wide
interconnect module
•
Only two ports will be
connected.
•
Four port cards will only
connect the first two ports.

HP BladeSystem c3000 Specifications

General

Form Factor	6U
Maximum Number of Blade Servers	8 half-height or 4 full-height
Maximum Number of Full-Height Blades	4
Cooling Fans	6 hot-plug fans
Management	HP Onboard Administrator
Interconnect Bays	4
Fans	6 hot-plug fans
Networking Options	Ethernet, Fibre Channel, InfiniBand
Power Supplies	Up to 6 (depending on configuration)
