HP BladeSystem c3000 - Page 45

Installing components 45
Connection Port number Connects to
interconnect bay/port
Comments
Mezzanine slot 2—1x or
2x cards
1x/2x port 1
1x/2x port 2
1x/2x port 3
1x/2x port 4
3/Port N
4 Port N
3/Port N+8
4/Port N+8
One or two single-wide
interconnect modules
Mezzanine slot 2—4x
cards
4x port 1
4x port 2
3/Port N
3/Port N+8
One double-wide
interconnect module

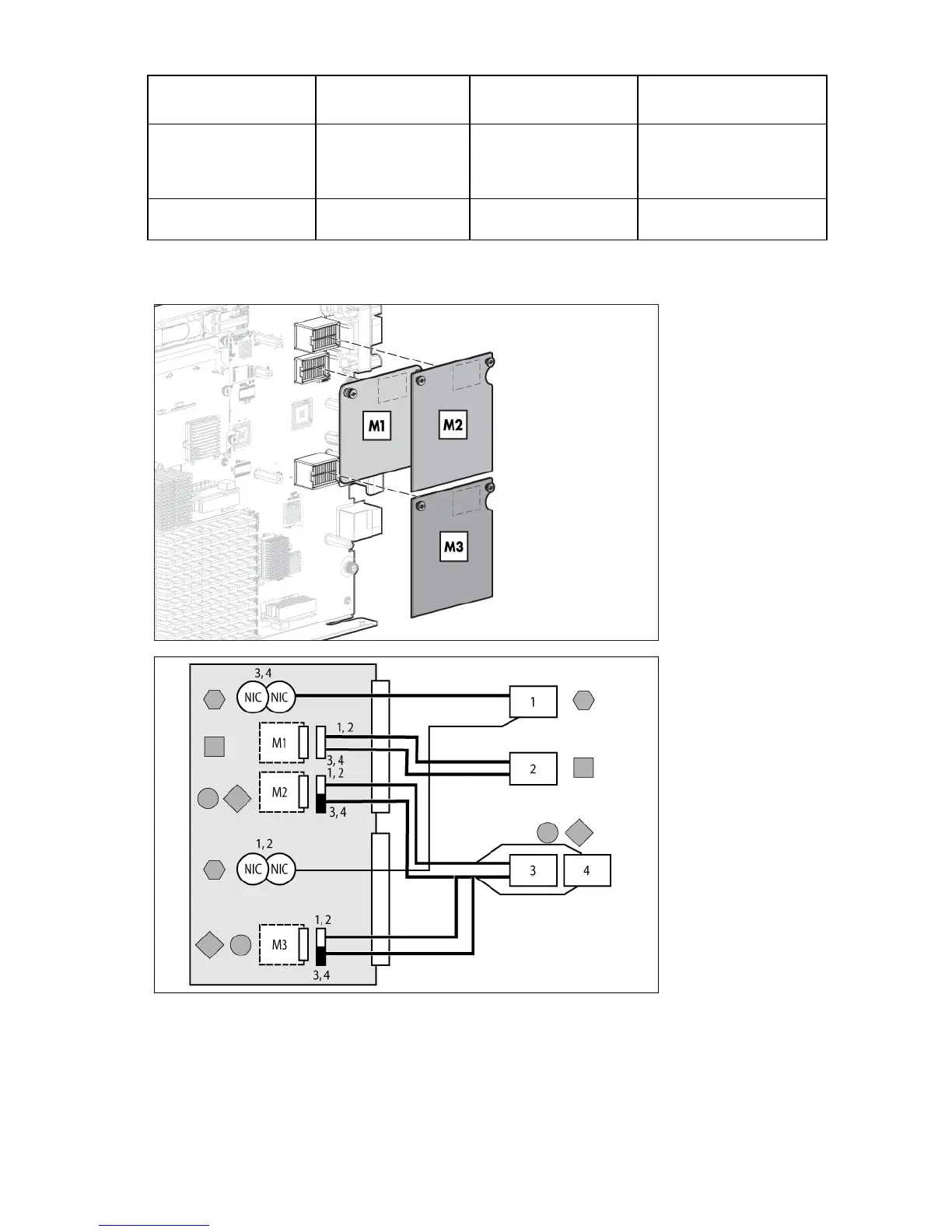

Mapping full-height blades
The following table lists the available configurations for full-height devices installed in device bay N (1–4)
