Fuser
Before proceeding, reomove the following components:
●
Right cover. See
Right cover on page 21.
●
Rear-upper cover (duplex products). See
Rear-upper cover (duplex product) on page 24.
●
Rear door (simplex products). See
Rear door (simplex product) on page 26.
●
Rear door (duplex products). See
Rear door (duplex product) on page 28.
●
Upper-cover assembly. See
Upper-cover assembly on page 41.
●
Left cover. See
Left cover on page 44.
●
Rear cover (simplex products). See
Rear cover and feed guide (simplex product) on page 30.
●
Rear-lower cover (duplex products). See
Rear-lower cover and rear-door links (duplex product)
on page 34.
Remove the fuser
WARNING! The fuser might be hot. After turning off the product power, allow the fuser to cool for at
least five minutes before removing it.
NOTE: The fuser can be removed without removing the upper-cover assembly. However, it might be
easier to access some of the connectors with this component removed.
1. Duplex models only: Remove three screws (callout 1) and separate the duplex reverse-drive
assembly from the product.
CAUTION: The duplex reverse-drive assembly is still attached to the product. Carefully set the
assembly out of the way.

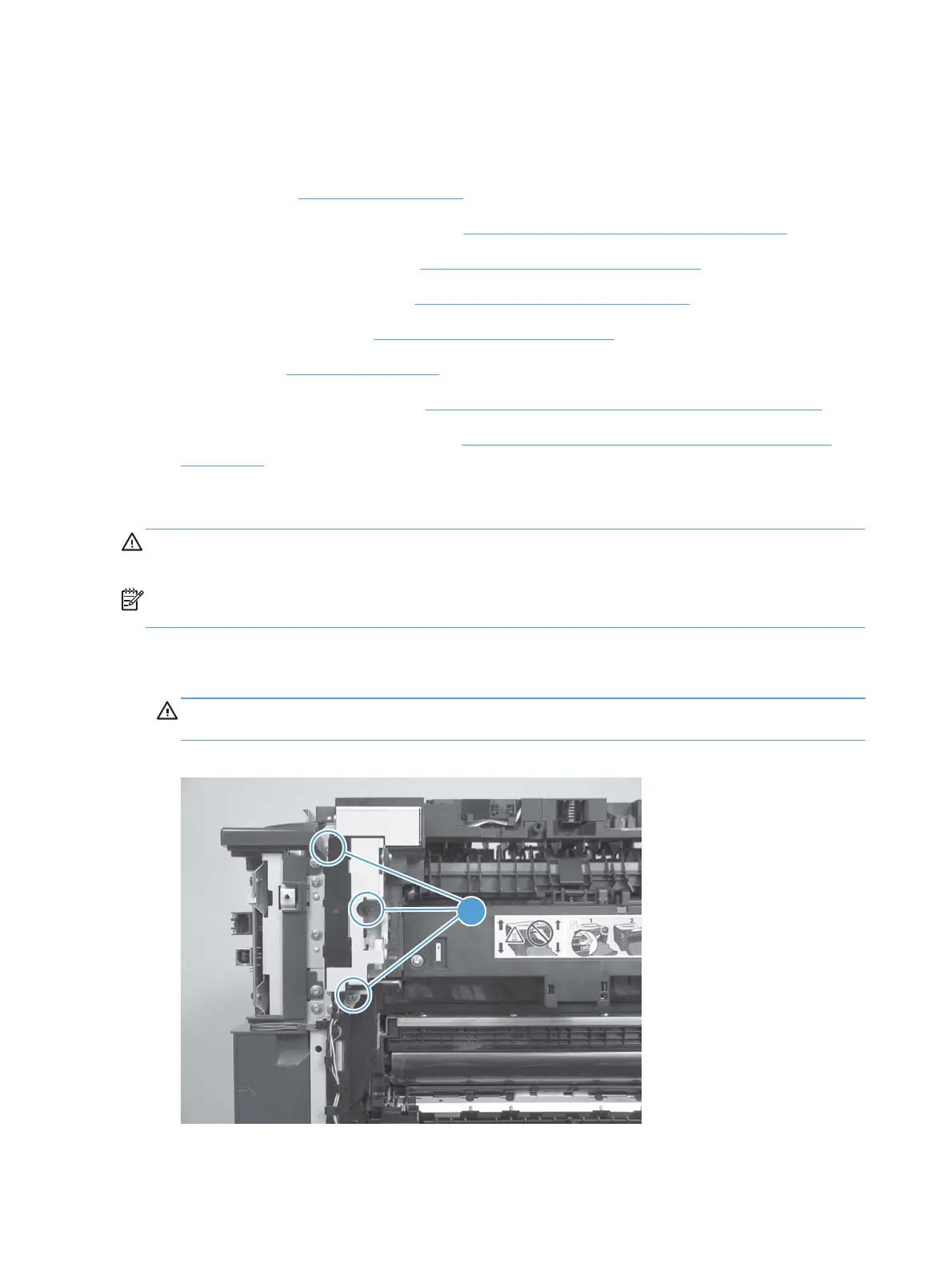

Figure 1-133 Remove the fuser (1 of 8)
1
92 Chapter 1 Removal and replacement ENWW
