Upper-cover assembly
1. Remove the Rear-upper cover. See Rear-upper cover (duplex product) on page 24.
2. Remove one screw (callout 1).

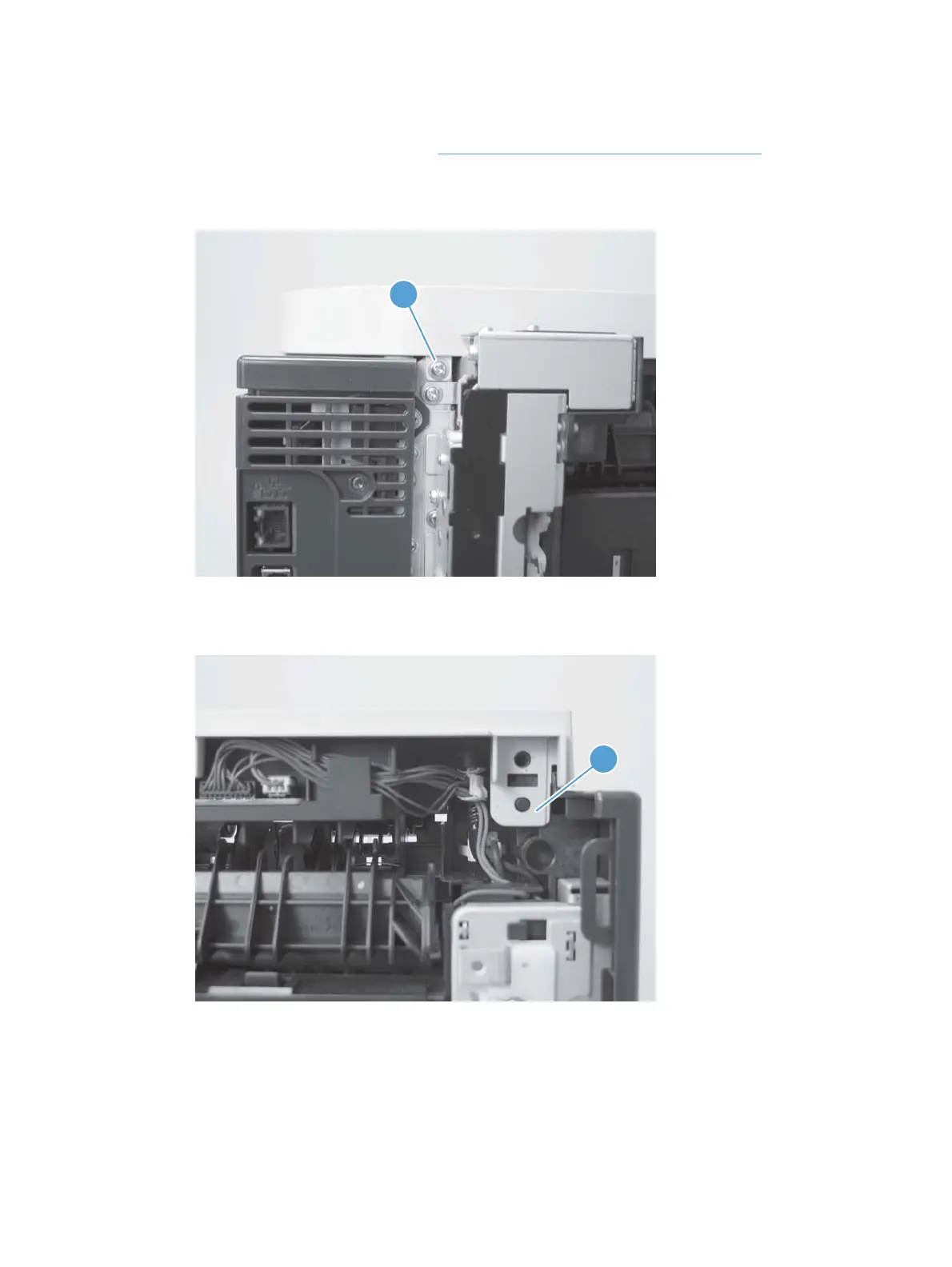

Figure 1-54 Remove the upper-cover assembly (1 of 4)
1
3. Release one tab (callout 1).
Figure 1-55 Remove the upper-cover assembly (2 of 4)
1
ENWW
Removal and replacement procedures
41
