HP LaserJet Pro 400 color M451 - Rear-lower cover and rear-door links (duplex product)

Rear-lower cover and rear-door links (duplex product)
Before proceeding, remove the following components:
●
Right cover. See
Right cover on page 21.
●
Rear-upper cover. See
Rear-upper cover (duplex product) on page 24.
●
Rear door. See
Rear door (duplex product) on page 28.
Remove the rear-lower cover and rear-door links (duplex product)
1. Use a pair of needle-nose pliers to release two tabs, and then remove the rear-door link cap.
Repeat this step for the remaining rear-door link cap.

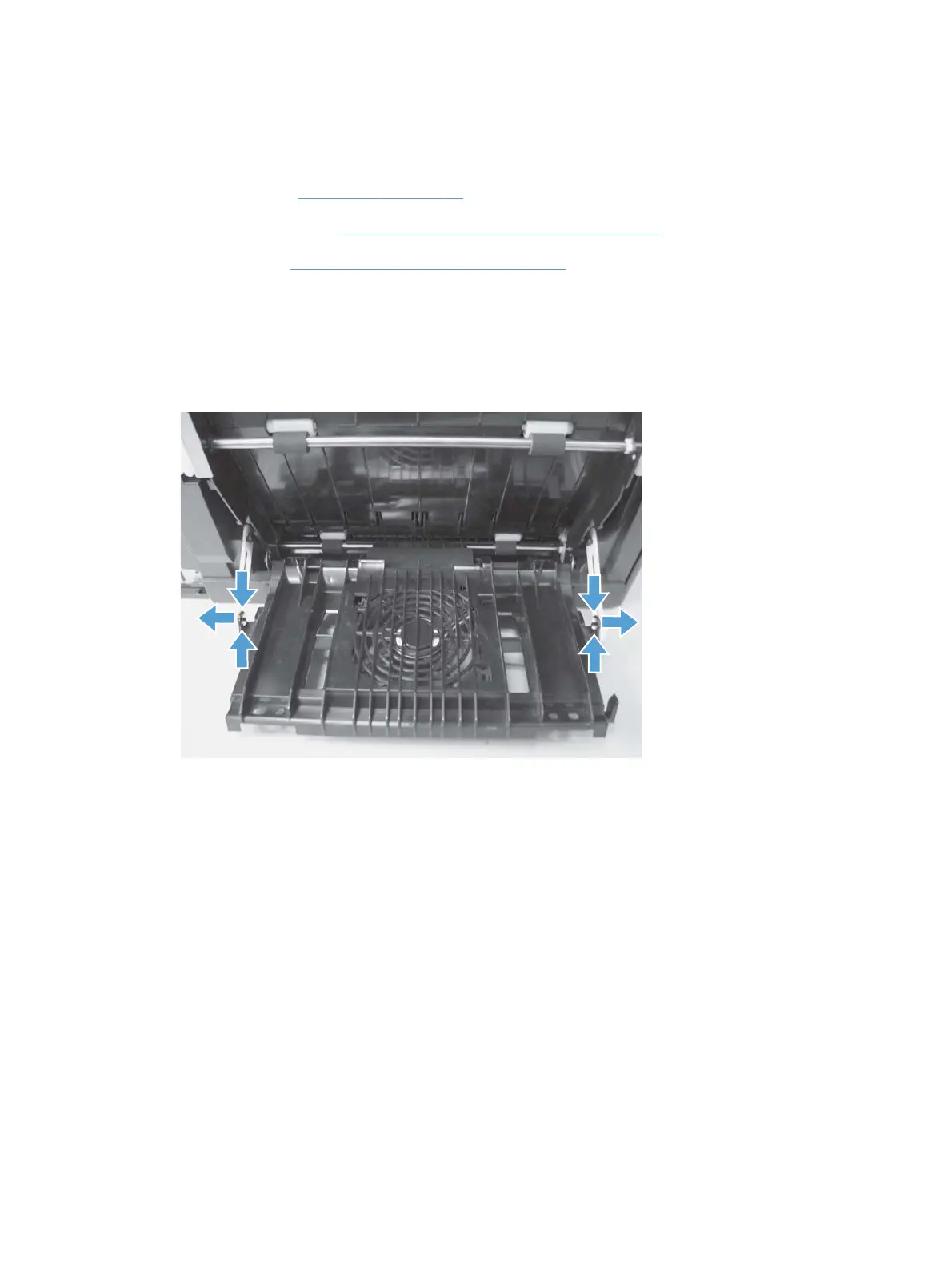

Figure 1-43 Remove the rear-lower cover and rear-door links (duplex product) (1 of 6)
34 Chapter 1 Removal and replacement ENWW
