Right panel
Before proceeding, remove the following components:
●
Right cover. See
Right cover on page 21.
●
Rear-upper cover (duplex products). See
Rear-upper cover (duplex product) on page 24.
●
Upper-cover assembly. See
Upper-cover assembly on page 41.
●
Control-panel assembly. See
Control-panel assembly on page 50.
Remove the right panel
1. Disconnect one connector (callout 1; J206) on the DC controller.

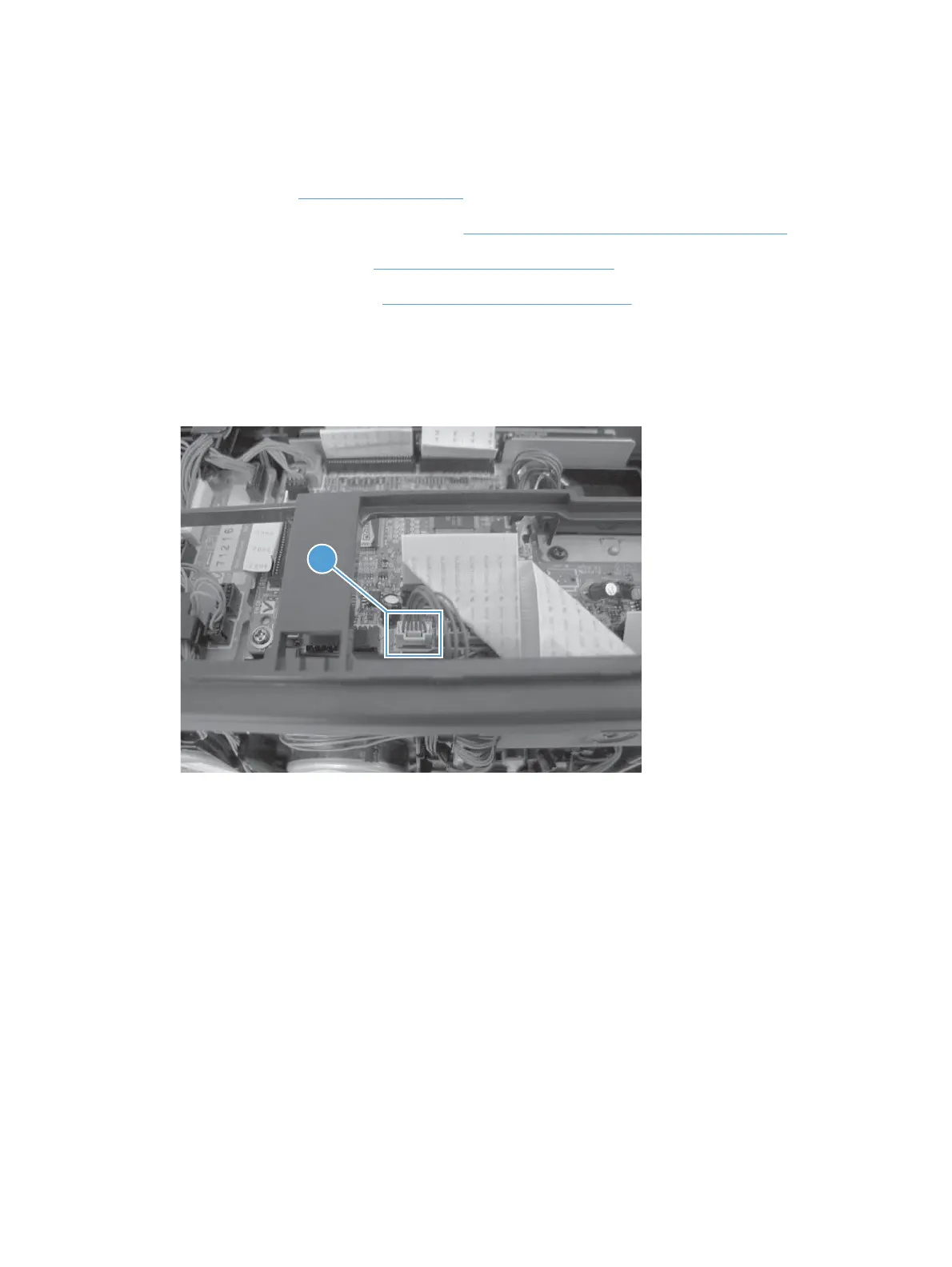

Figure 1-72 Remove the right panel (1 of 8)
1
52 Chapter 1 Removal and replacement ENWW
