Connectors, LEDs, and Switches
iLO/Spread Spectrum Switch (SW8)
The iLO/Spread Spectrum switch (SW8) is a two-position switch that is used for
miscellaneous purposes. The iLO security override switch allows the administrator full access
to the iLO processor. This access is necessary if the administrator password is lost or if the
iLO boot-block needs to be flashed. Figure 4-19 and Table 4-22 identify the iLO/Spread
Spectrum switch location and settings.

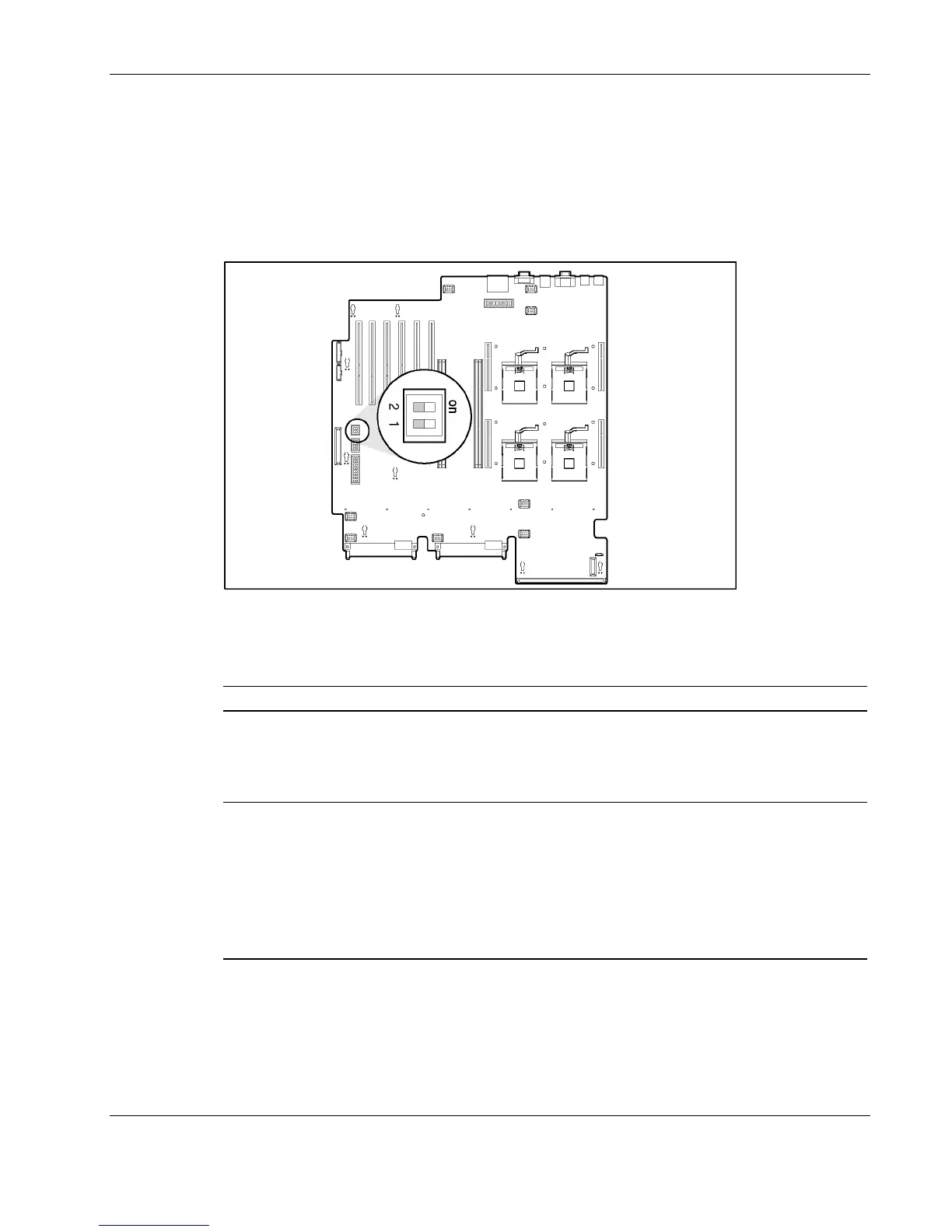

Figure 4-19: iLO/Spread Spectrum switch (SW8)
Table 4-22: iLO/Spread Spectrum Switch (SW8)
Position Default Function Description Settings
1 Off
iLO security
override
The override
allows the
administrator full
access to the
iLO processor.
Open (off)
Normal
Closed (on)
Override
2 Off
Spread
spectrum
enabler
Open (off)
Clock spread
spectrum is
disabled.
Closed (on)
Clock spread
spectrum is
enabled.
HP ProLiant DL580 Generation 2 Server Maintenance and Service Guide 4-27
