Removal and Replacement Procedures
Slimline Drives
To remove a drive from a slimline drive bay:
1. Power down the server. Refer to “Power ing Down the Server” in this chapter.
2. Push the release button with the Torx T-15 tool (1).
3. Pull the drive out of the slimline drive bay (2).

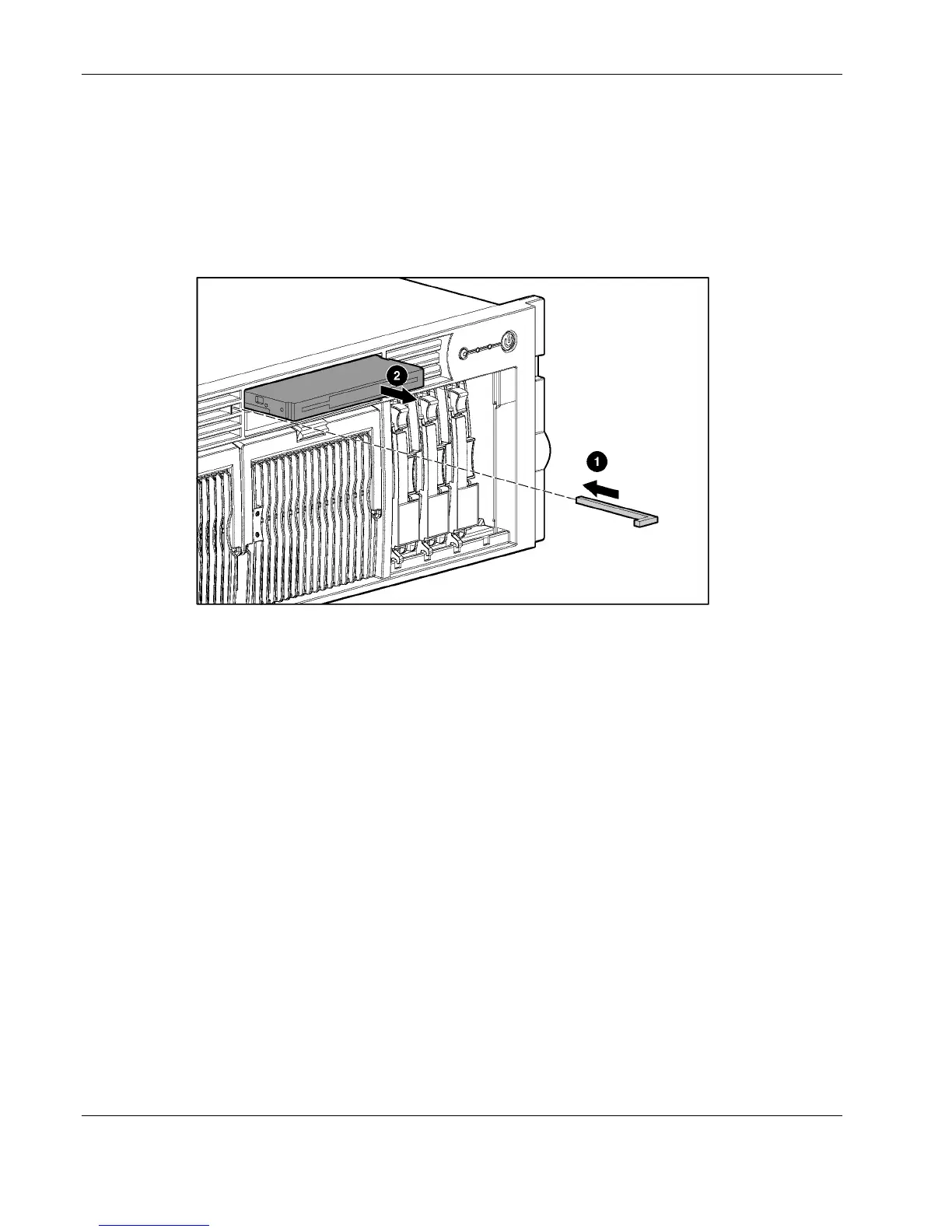

Figure 2-29: Removing a drive from a slimline drive bay
To replace a slimline drive, slide the drive into the slot until it engages the connector.
IMPORTANT: For the diskette drive to be bootable, it must be installed in the top slimline drive bay.
For the CD-ROM or DVD-ROM drive to be bootable, it must be installed in the bottom slimline drive
bay.
