Removal and Replacement Procedures
Power Supply Blank
To remove a power supply blank:
1. Press the lever-release button on the handle of the power supply blanks (1).
2. Pull on the lever to release the blank (2).
3. Remove the power supply blank from the server (3).

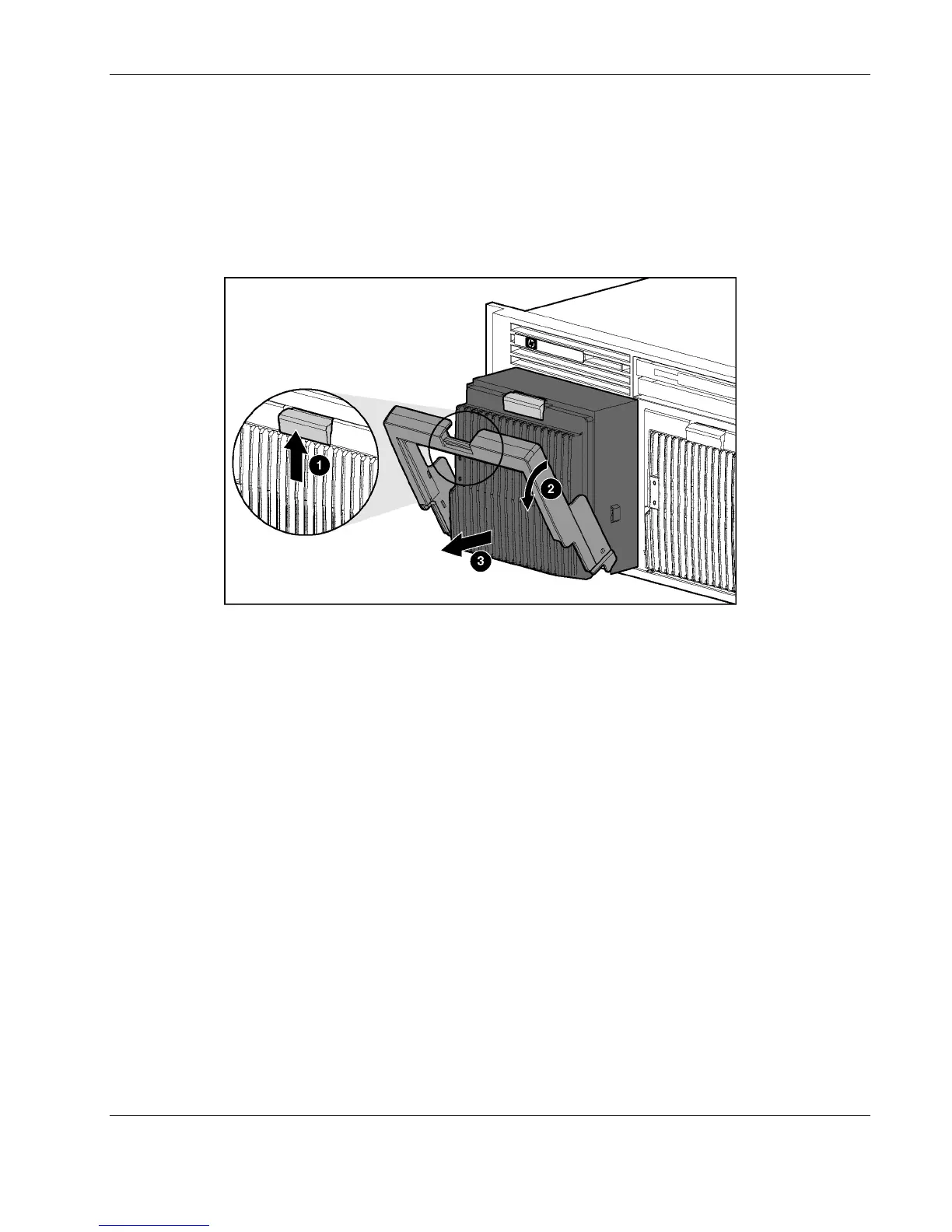

Figure 2-22: Removing a power supply blank
NOTE: Keep the power supply blank for future use.
Reverse steps 1 through 3 to replace a power supply blank.
HP ProLiant DL580 Generation 2 Server Maintenance and Service Guide 2-33
