Removal and Replacement Procedures
Removing the Front Access Panel
To remove the front access panel:
1. Extend or remove the server from the rack. Refer to “Extending the Server from the
Rack” in this chapter.
2. Remove the rear access panel. Refer to “Opening and Removing the Rear Access Panel”
in this chapter.
3. Remove the front access panel:
a. Press the release button located on the inside rear of the front access panel (1).
b. Slide the front access panel toward the rear of the server (2).
c. Remove the access panel (3).

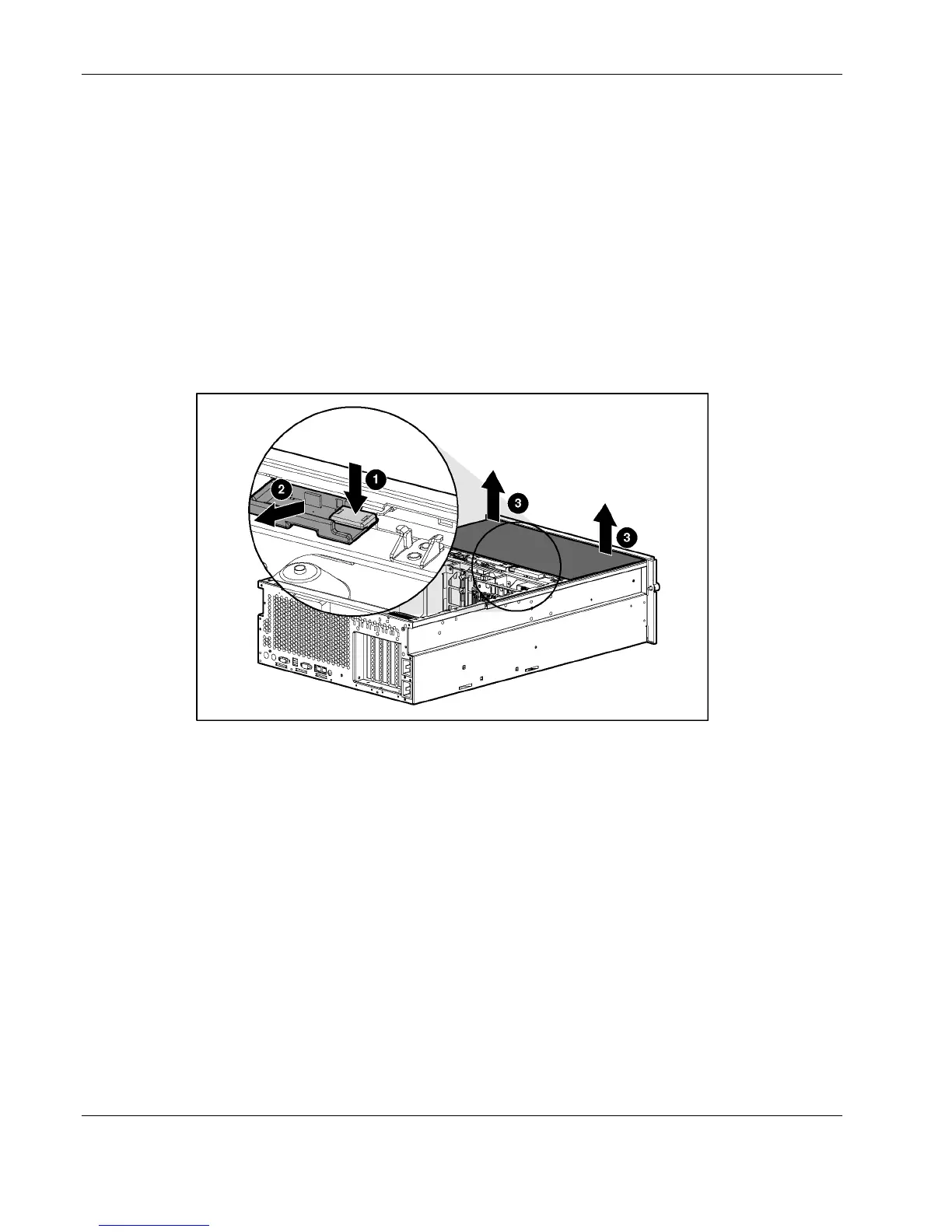

Figure 2-8: Removing the front access panel
2-10 HP ProLiant DL580 Generation 2 Server Maintenance and Service Guide
