Removal and Replacement Procedures
Front Bezel
To remove the front bezel:
1. Power down the server. Refer to “Power ing Down the Server” in this chapter.
2. Extend the server from the rack. Refer to “Extending the Rack from the Server” in this
chapter.
3. Remove the rear access panel. Refer to “Opening and Removing the Rear Access Panel”
in this chapter.
4. Remove the front access panel. Refer to “Re moving the Front Access Panel” in this
chapter.
5. Remove the light pipe plastic assembly by pressing in the hooks at the panel and rear.
6. Using the T-15 Torx tool, remove the six screws on the exterior of the chassis (1) and the
two screws on the interior of the chassis next to the slimline drive bays (2).

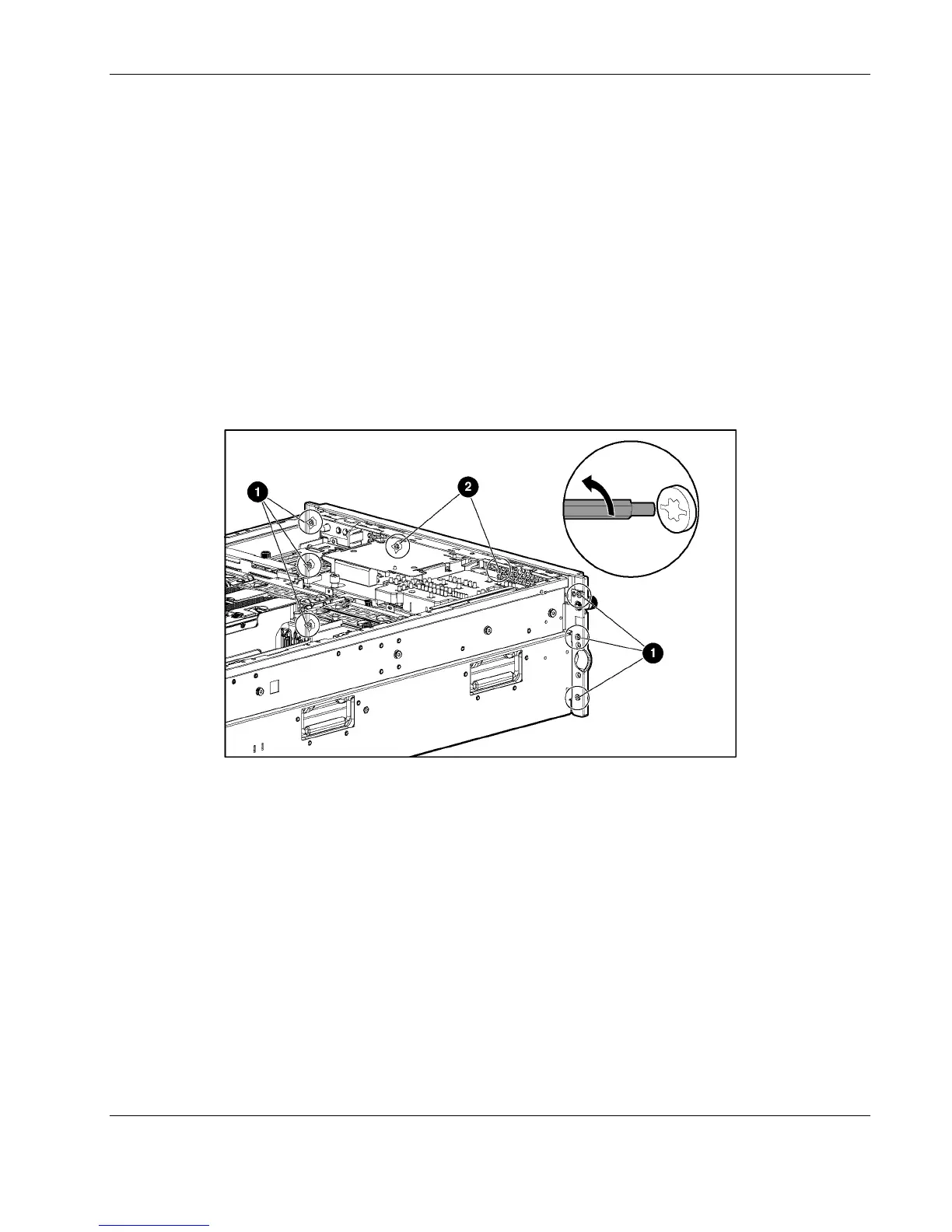

Figure 2-30: Removing the exterior and interior chassis screws
HP ProLiant DL580 Generation 2 Server Maintenance and Service Guide 2-43
