HP ProLiant DL580 Generation 2 User Manual

Removal and Replacement Procedures
Extending the Server from the Rack
To perform service procedures, you must extend the server from the rack.
To extend the server from the rack:
1. Loosen the thumbscrews that secure the server to the front of the rack.

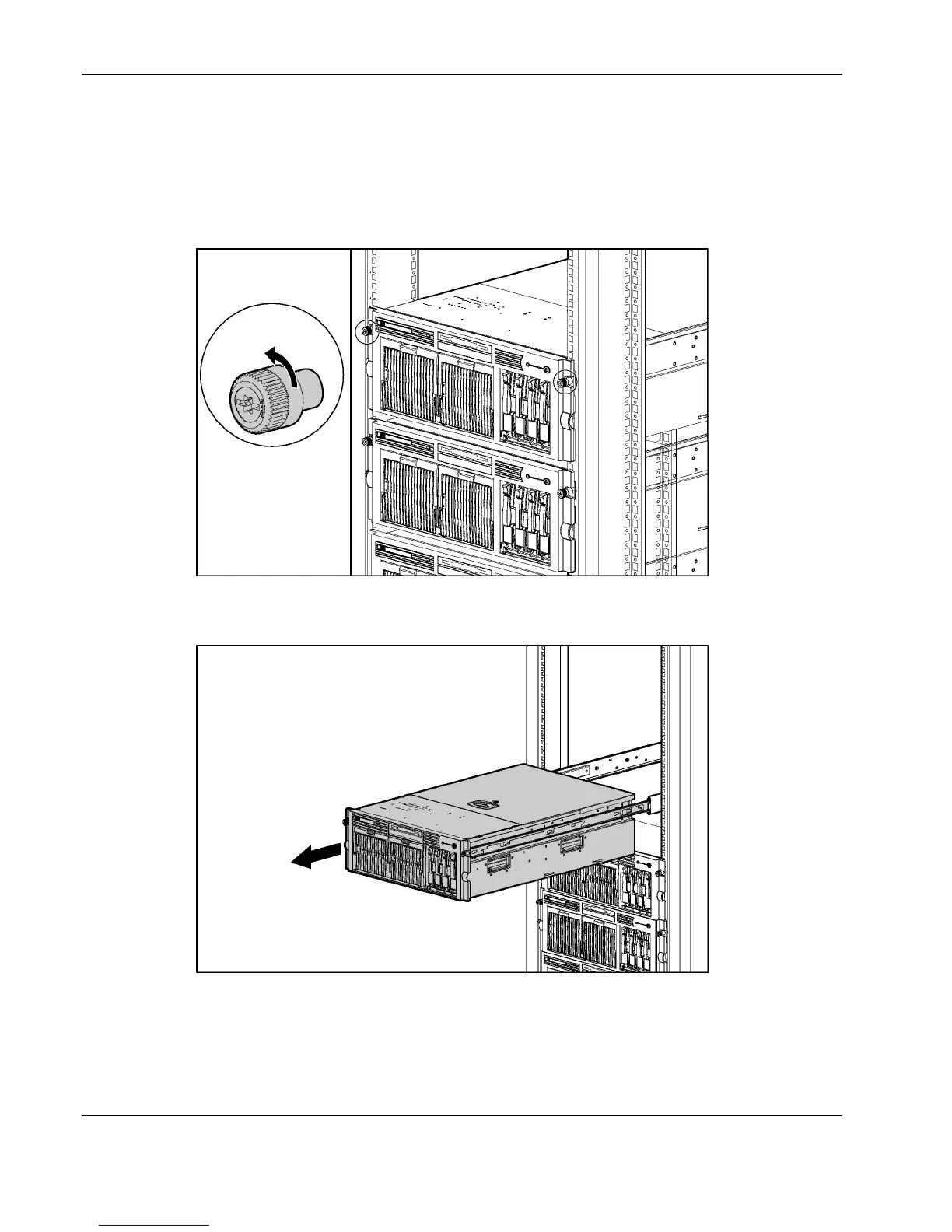

Figure 2-2: Loosening the front panel thumbscrews
2. Extend the server on the rack rails until the server rail-release latches engage.
Figure 2-3: Extending the server from the rack
2-6 HP ProLiant DL580 Generation 2 Server Maintenance and Service Guide

HP ProLiant DL580 Generation 2 Specifications

General

Processor Socket	Socket 604
Storage Controller	Integrated Smart Array 6i Controller
Storage	SAS
Network	Integrated Dual Gigabit NICs
RAID Support	RAID 0, 1, 5
Expansion Slots	6 PCI-X slots
Power Supply	Redundant Power Supplies
Form Factor	4U Rack
Management	HP Integrated Lights-Out (iLO)
Operating System Support	Windows Server, Linux
Processor	Intel Xeon (up to 4 processors)
Drive Bays	Up to 6 hot-plug SCSI or SAS drives
