HP ProLiant DL580 Generation 2 - Removing a PPM

Removal and Replacement Procedures
8. Lift the PPM straight up from its slot.

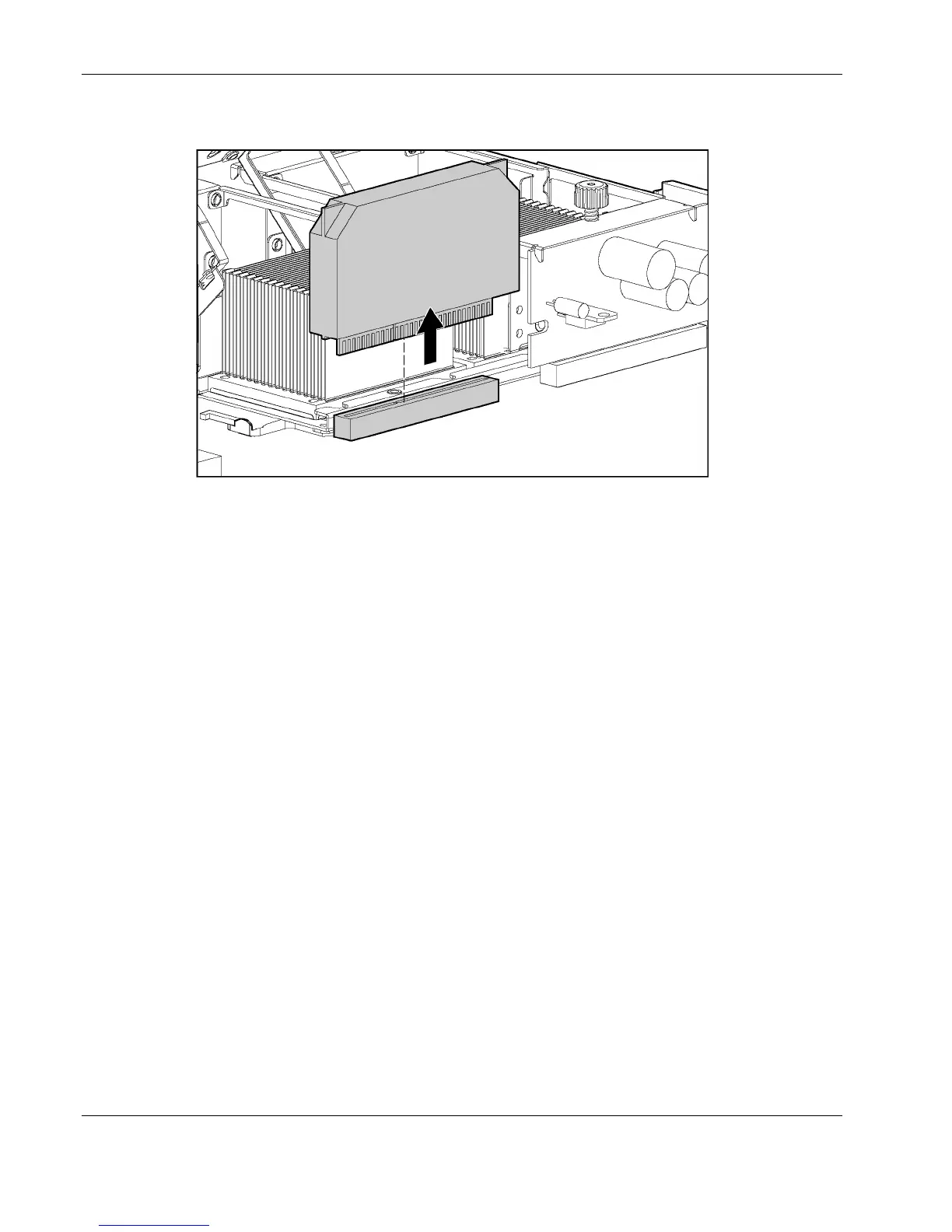

Figure 2-35: Removing a PPM
Reverse steps 1 through 8 to replace a PPM.
IMPORTANT: When installing a PPM, be sure the key slot in the PPM is aligned with the key in the
slot.
2-48 HP ProLiant DL580 Generation 2 Server Maintenance and Service Guide
