HP ProLiant DL580 Generation 2 - Removing a PCI-X Hot Plug Expansion Board

Removal and Replacement Procedures
6. Push the tab on the expansion slot latch (1).
7. Swing the latch back to unlock the expansion board (2).
8. Lift the expansion board release handle to disengage the board from the slot (3).
9. Remove the board from the slot (4).
Reverse steps 1 through 9 to replace the expansion board.

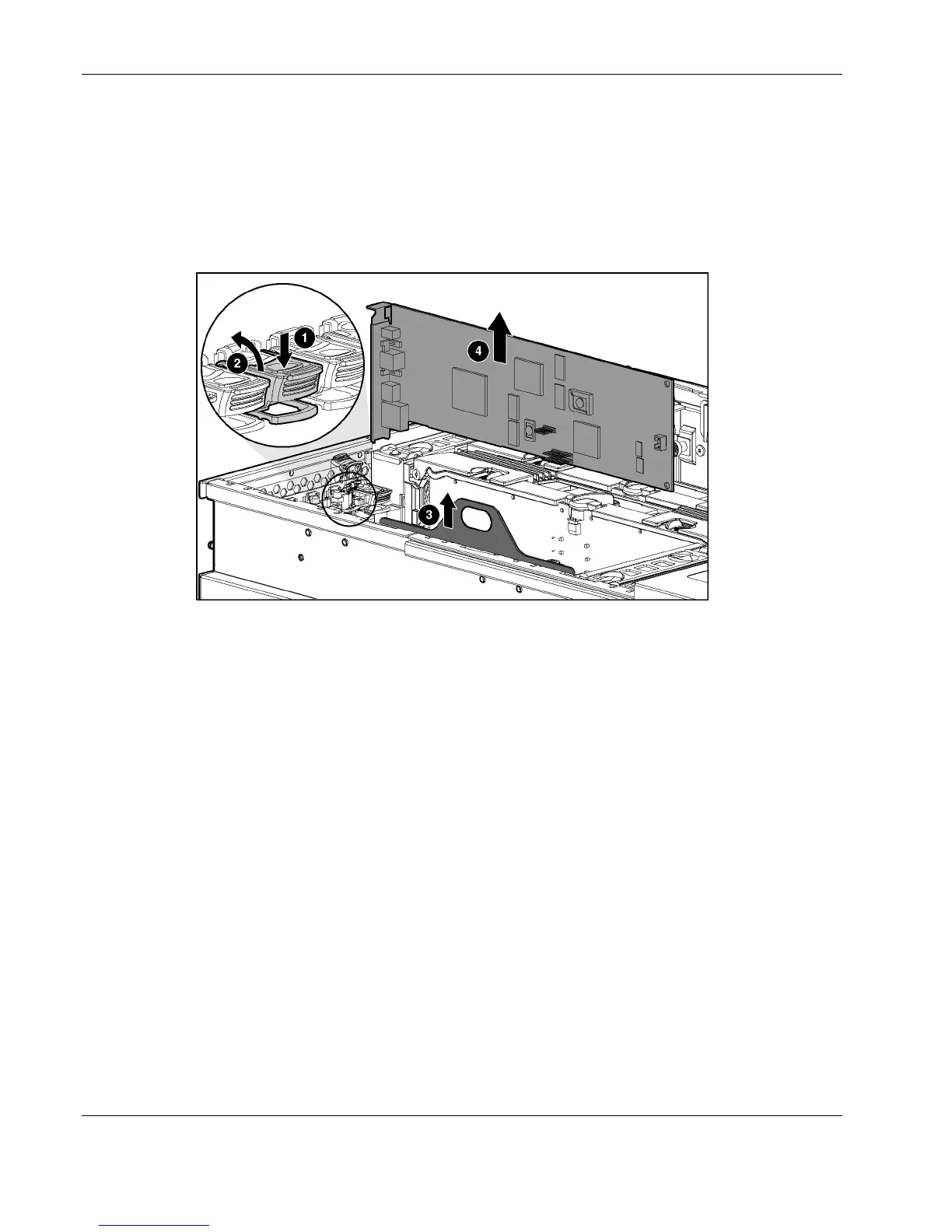

Figure 2-27: Removing a PCI-X Hot Plug expansion board
2-38 HP ProLiant DL580 Generation 2 Server Maintenance and Service Guide
