HP ProLiant DL580 Generation 2 - Memory Board Slot Locations

Removal and Replacement Procedures
Observe the following warnings when performing a hot-plug replacement procedure.
WARNING: Always comply with all electrostatic and thermal guidelines to prevent
bodily injury and ensure a properly functioning system when performing hot-plug
operations. For detailed information, refer to “Abou t this Guide” i n this guide.
WARNING: The rear access panel provides access to hazardous energy circuits. To
avoid risk of injury or damage to the equipment from hazardous energy, be sure the
door remains locked during normal operation or install the server in a controlled
access location.
WARNING: To reduce the risk of personal injury from hazardous energy or damage to
the equipment when working on energized servers:
• Remove all watches, rings, and any other loose fitting jewelry.
• Avoid the use of conductive tools inside the server that could bridge live parts.
Memory Board Slot Locations
Use Figure 2-13 and Table 2-1 to identify the memory board slots on the system board.

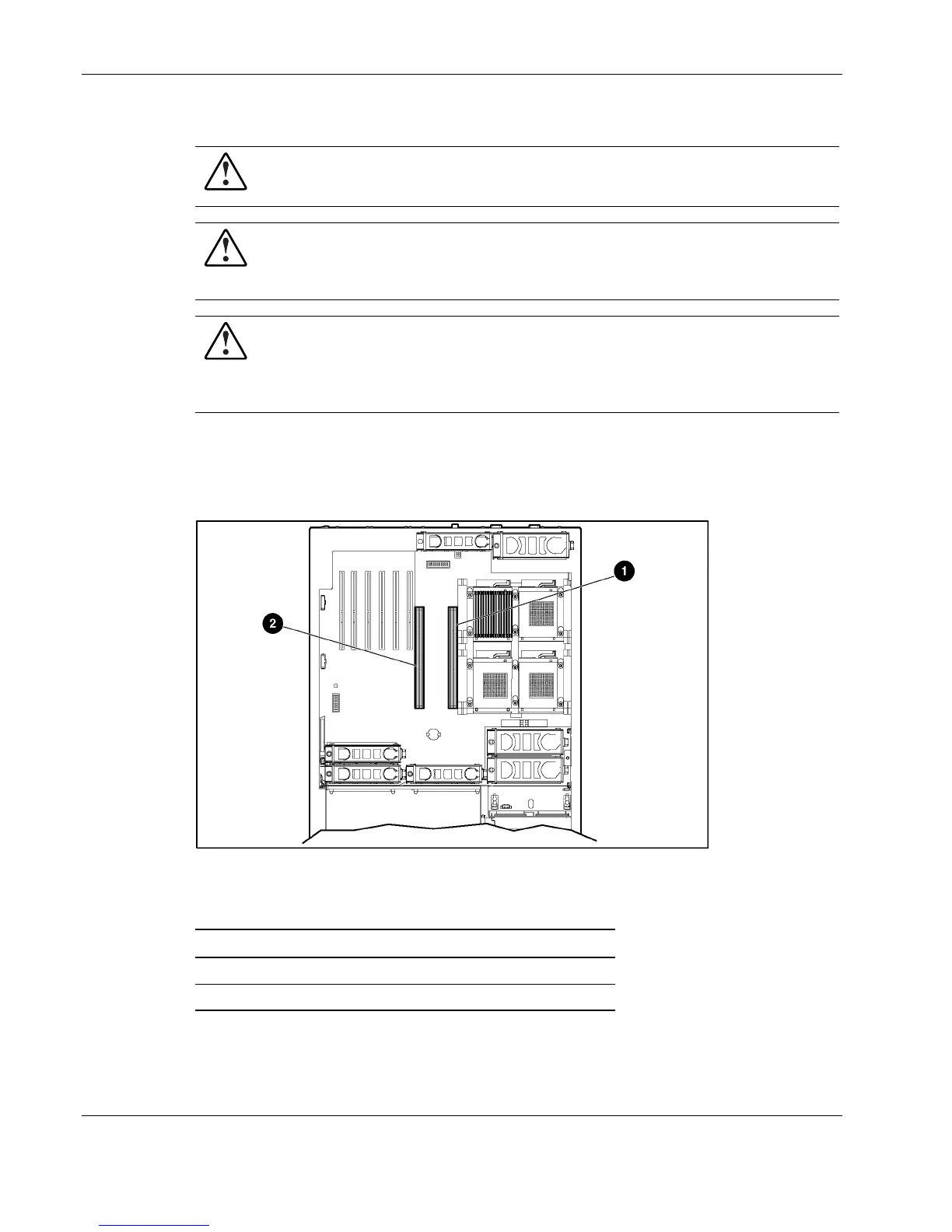

Figure 2-13: Memory board slots
Table 2-1: Memory Board Slots
Item Description
1 Memory board slot 1
2 Memory board slot 2
