HP ProLiant DL580 Generation 2 - Cutting the Cable Tie-Wraps; Removing the Cable Clips

Removal and Replacement Procedures
22. Cut the four tie-wraps securing the AC filter cable to the chassis.

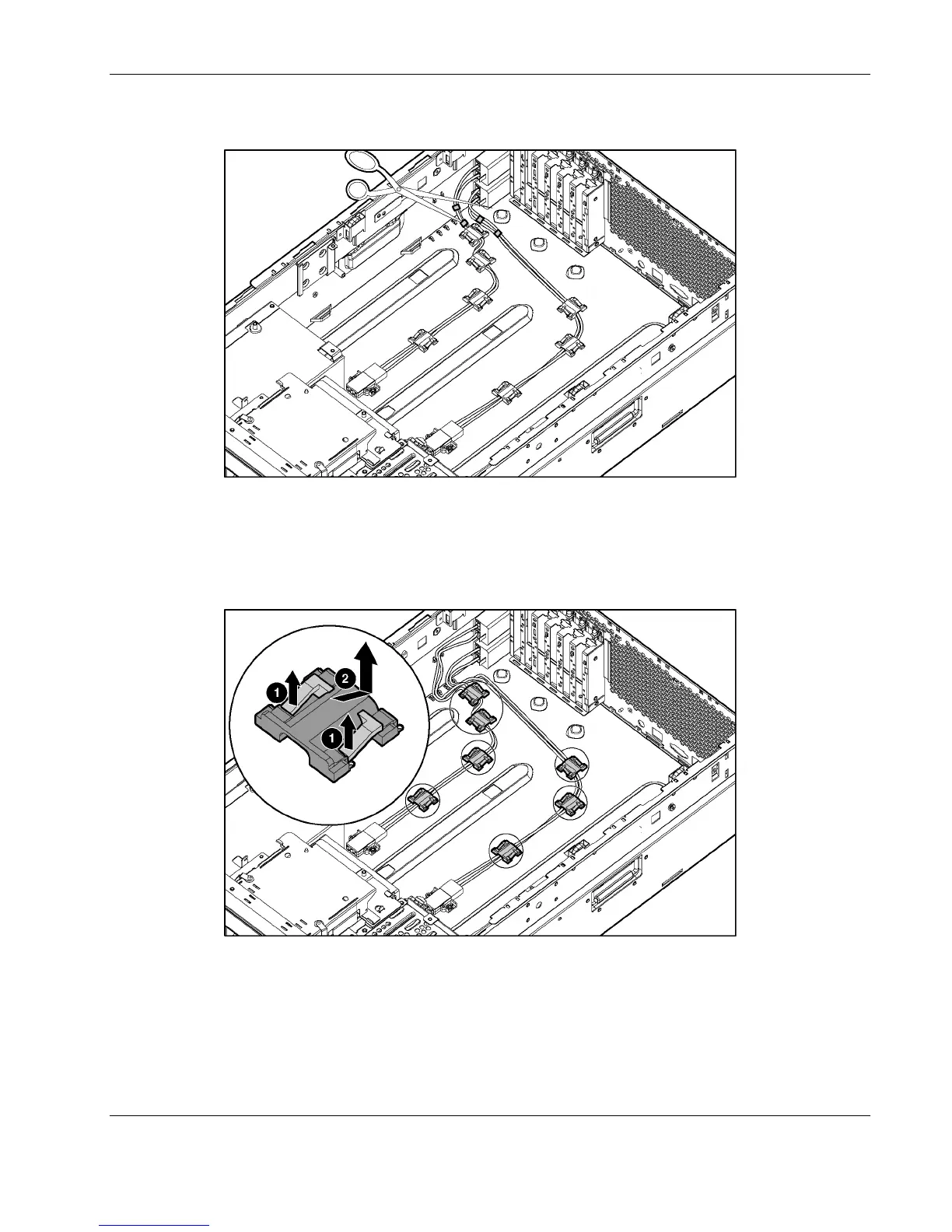

Figure 2-53: Cutting the cable tie-wraps
23. Remove the seven cable clips:
a. Lift to disengage the cable clip (1).
b. Slide the clip forward, and lift it off the chassis (2).
Figure 2-54: Removing the cable clips
HP ProLiant DL580 Generation 2 Server Maintenance and Service Guide 2-69
