HP ProLiant DL580 Generation 2 - PCI-X Slot Locations; Proliant DL580 Generation 2 PCI-X Expansion Slots and Buses

Removal and Replacement Procedures
The ProLiant DL580 Generation 2 server includes six PCI-X expansion slots. Use
Figure 2-24 and Table 2-9 to identify each slot.

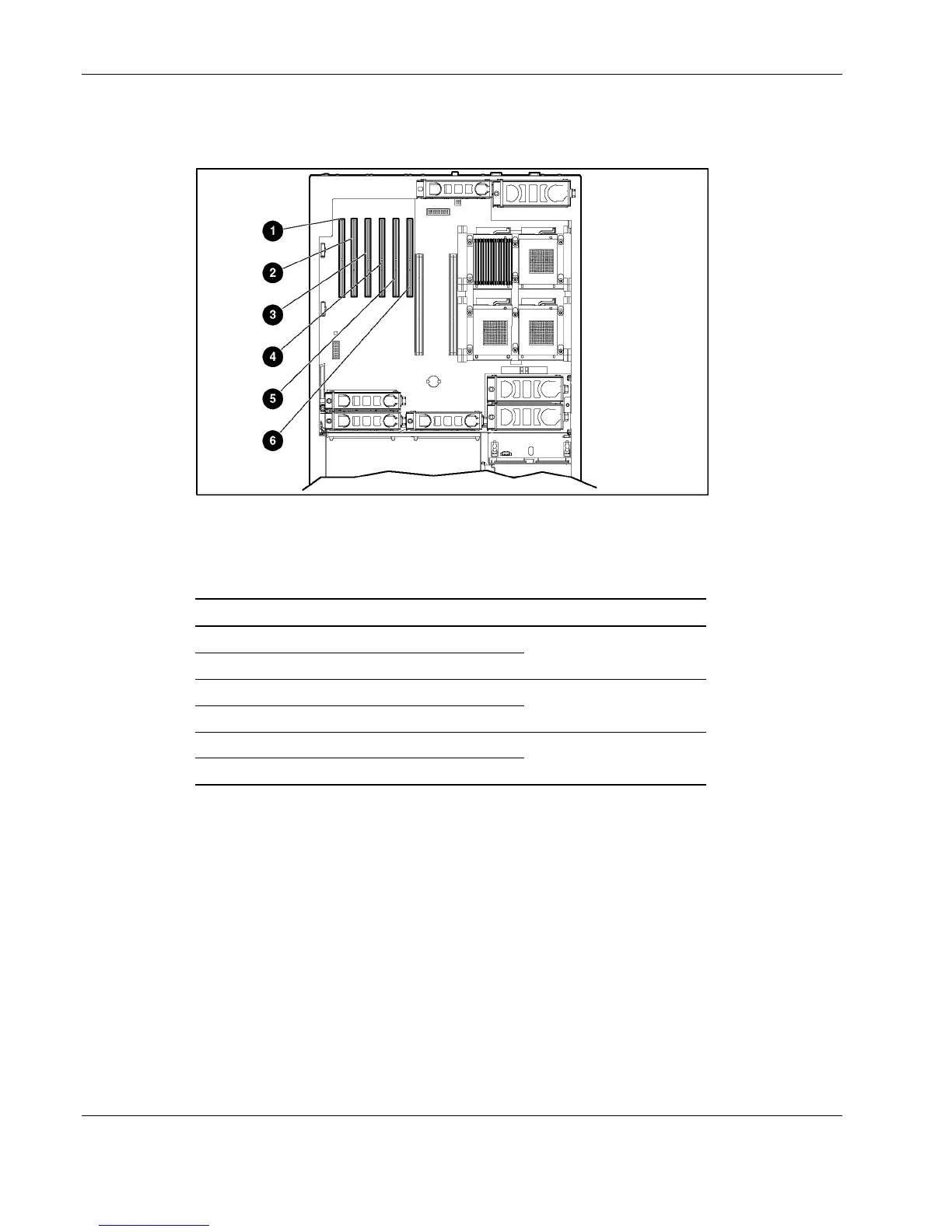

Figure 2-24: PCI-X slot locations
Table 2-9: ProLiant DL580 Generation 2 PCI-X Expansion Slots and
Buses
Item Description Bus
1 Slot 1 (non-hot-plug)
2 Slot 2 (non-hot-plug)
Shared bus 10
3 Slot 3 (hot-plug)
4 Slot 4 (hot-plug)
Shared bus 6
5 Slot 5 (hot-plug)
6 Slot 6 (hot-plug)
Shared bus 2
To remove an expansion board from a PCI-X Hot Plug slot
1. Extend the server from the rack. Refer to “Extending the Server from the Rack” i n this
chapter.
2. Open the rear access panel. Refer to “Op ening and Removing the Rear Access Panel” in
this chapter.
