3. Place the rear access panel on top of the server and line up the guide marks on the rear
access panel with the corresponding server guide marks.
4. Slide the rear access panel toward the back of the server until it stops.

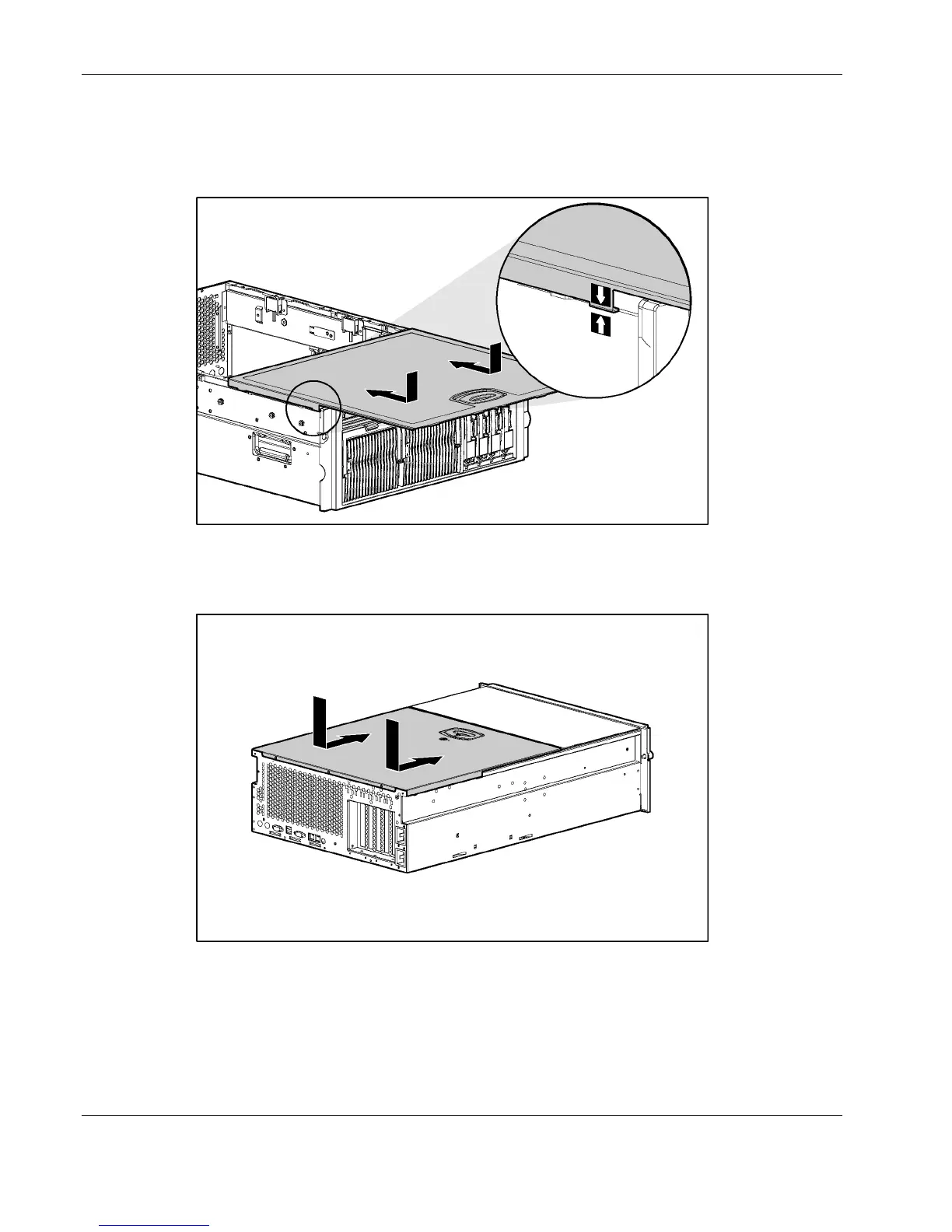

Figure 2-10: Lining up the guide marks
5. With even pressure, push the rear access panel down and slide it toward the front of the
server until it seats.
Figure 2-11: Installing the rear access panel
6. Use the Torx T-15 tool to turn the locking screw clockwise to lock the latch.
