Removal and Replacement Procedures
Pass-Through Board
To remove the pass-through board:
1. Power down the server. Refer to “Power ing Down the Server” in this chapter.
2. Extend the server from the rack. Refer to “Extending the Rack from the Server” in this
chapter.
3. Remove the rear access panel. Refer to “Opening and Removing the Rear Access Panel”
in this chapter.
4. Remove the front access panel. Refer to “Re moving the Front Access Panel” in this
chapter.
5. Remove the front fan cage. Refer to “Front Fan Cage” in this chapter.
6. Loosen the two thumbscrews that secure the pass-through board to the removable media
board and the side chassis wall (1). You may need to use a Torx T-15 screwdriver.
7. Lift the pass-through board straight up and out of the chassis (2).

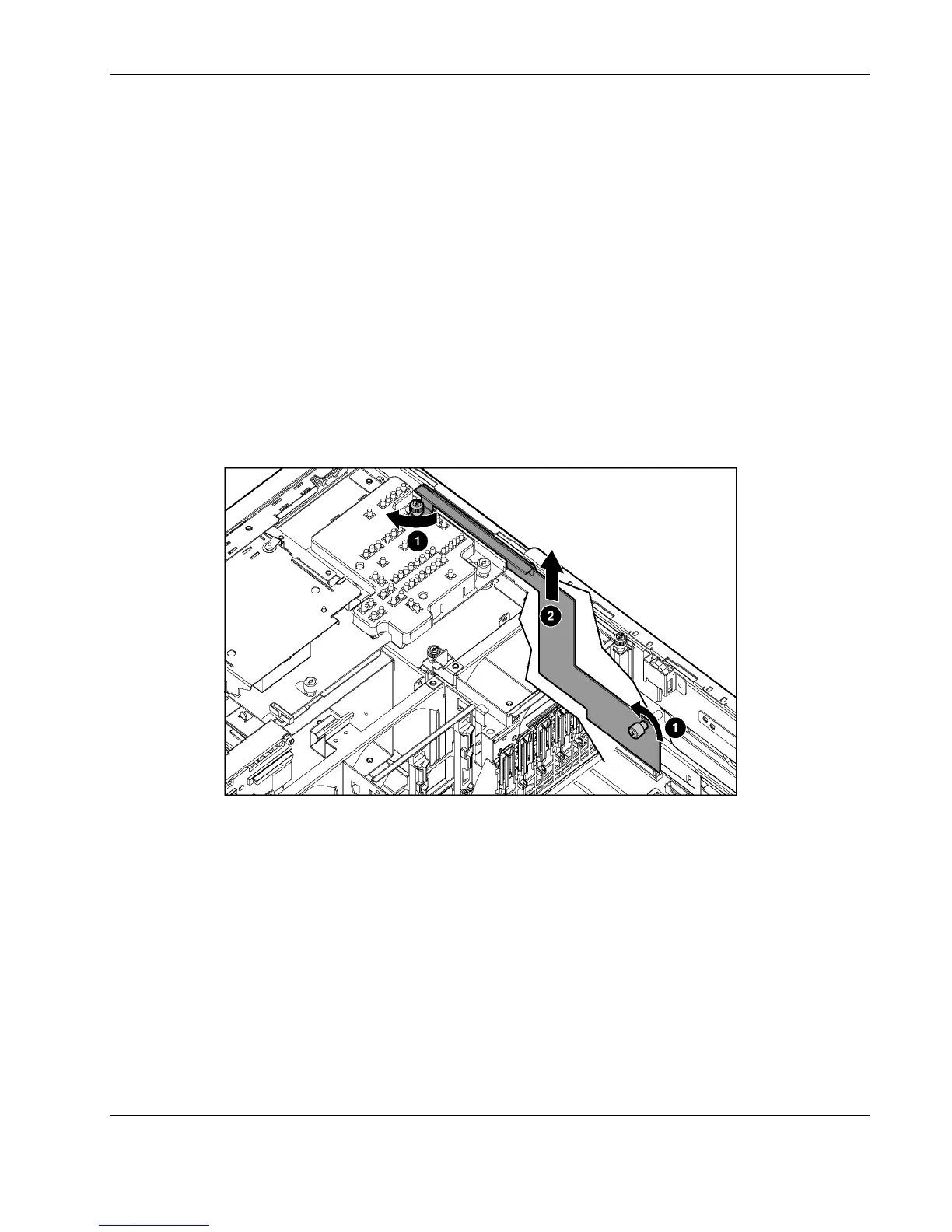

Figure 2-44: Removing the pass-through board
Reverse steps 1 through 7 to replace the pass-through board connector.
HP ProLiant DL580 Generation 2 Server Maintenance and Service Guide 2-57
