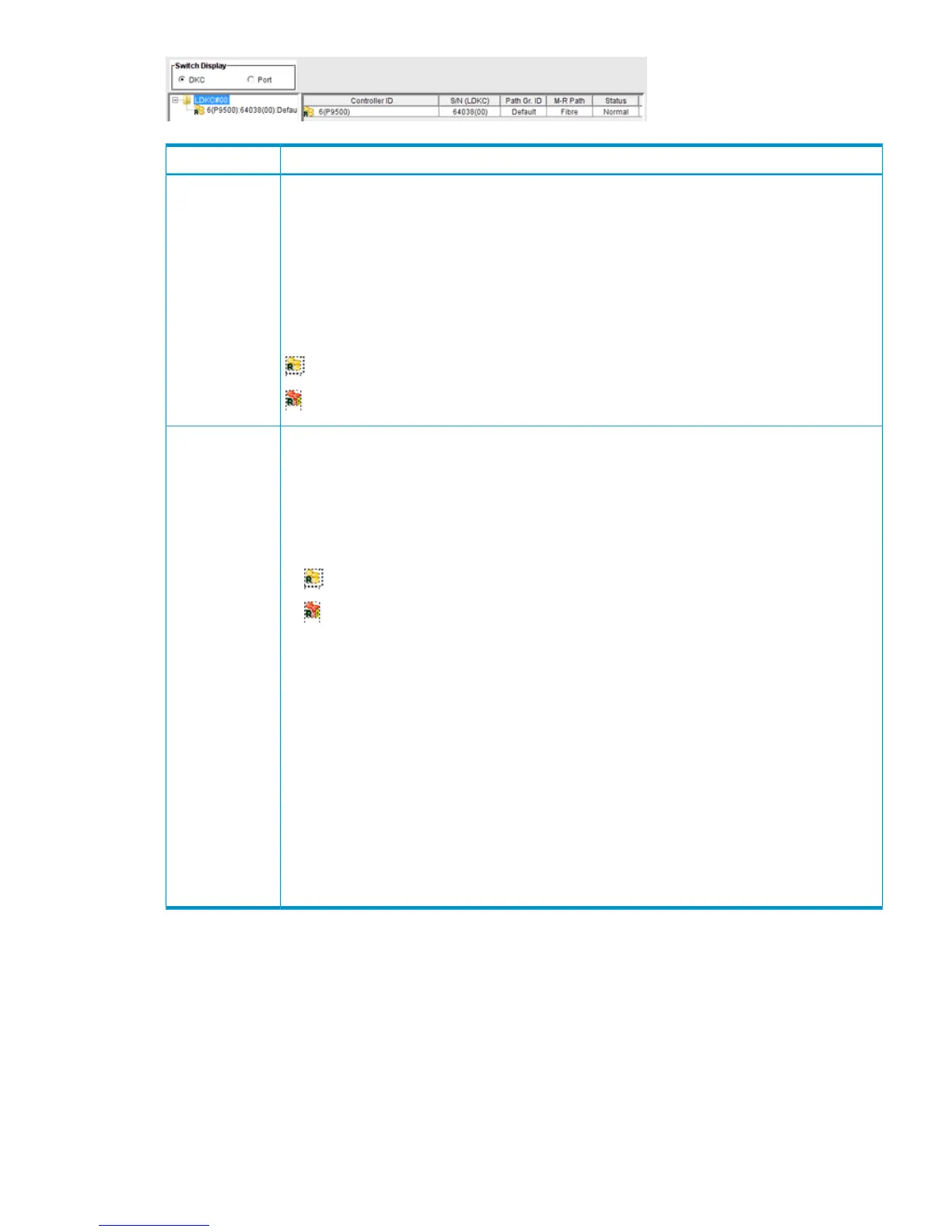

DescriptionItem
Lists the remote storage systems of each LDKC in the local storage system. The following information
appears to the right of the remote system’s icon :
• Controller ID of the remote storage system (The model name of the remote storage system).
• Serial number of the remote storage system.
• Path group ID.
Note: The LDKC#01 cannot be used in this version of the Cnt Ac-J software.
The icon indicates the status of logical paths between the local storage system and the remote
storage system:
All the logical paths are in normal status.
A failure occurred at some of the logical paths.
Tree
Shows information about the selected remote storage system:
• Controller ID: The controller ID and the model name of the storage system of a remote storage
system. The controller ID for a P9500 storage system is 6. The controller ID for a
XP24000/XP20000 Disk Array storage system is 5. The controller ID for a XP12000 Disk
Array/XP10000 Disk Array is 4.
The icon indicates the status of logical paths between the local storage system and the remote
storage system:
All the logical paths are in normal status.
A failure occurred at some of the logical paths.
• S/N (LDKC): The five-digit serial number and the LDKC number of the remote storage system.
When the remote storage system is XP24000/XP20000 Disk Array, “00” appears as the LDKC
number.
• Path Gr. ID: The path group ID. All path group IDs show as Default.
Note: In the current version, the path group ID is set to the default value.
• M-R Path: The channel type of the logical paths between the local storage system and the remote
storage system. This column always shows Fiber.
• Status: Indicates whether logical paths fail.
- Normal: No failure occurs to the logical paths
- Failed: All the logical paths fail.
- Warning: Some of the logical paths fail.
• Num of Path: The number of logical paths.
Operation
Logical Path Information
The list area on the DKC Operation window shows information about logical paths between ports
on the local and remote systems when you select DKC in the Display box and the remote system
in the tree.
DKC Operation window 177
