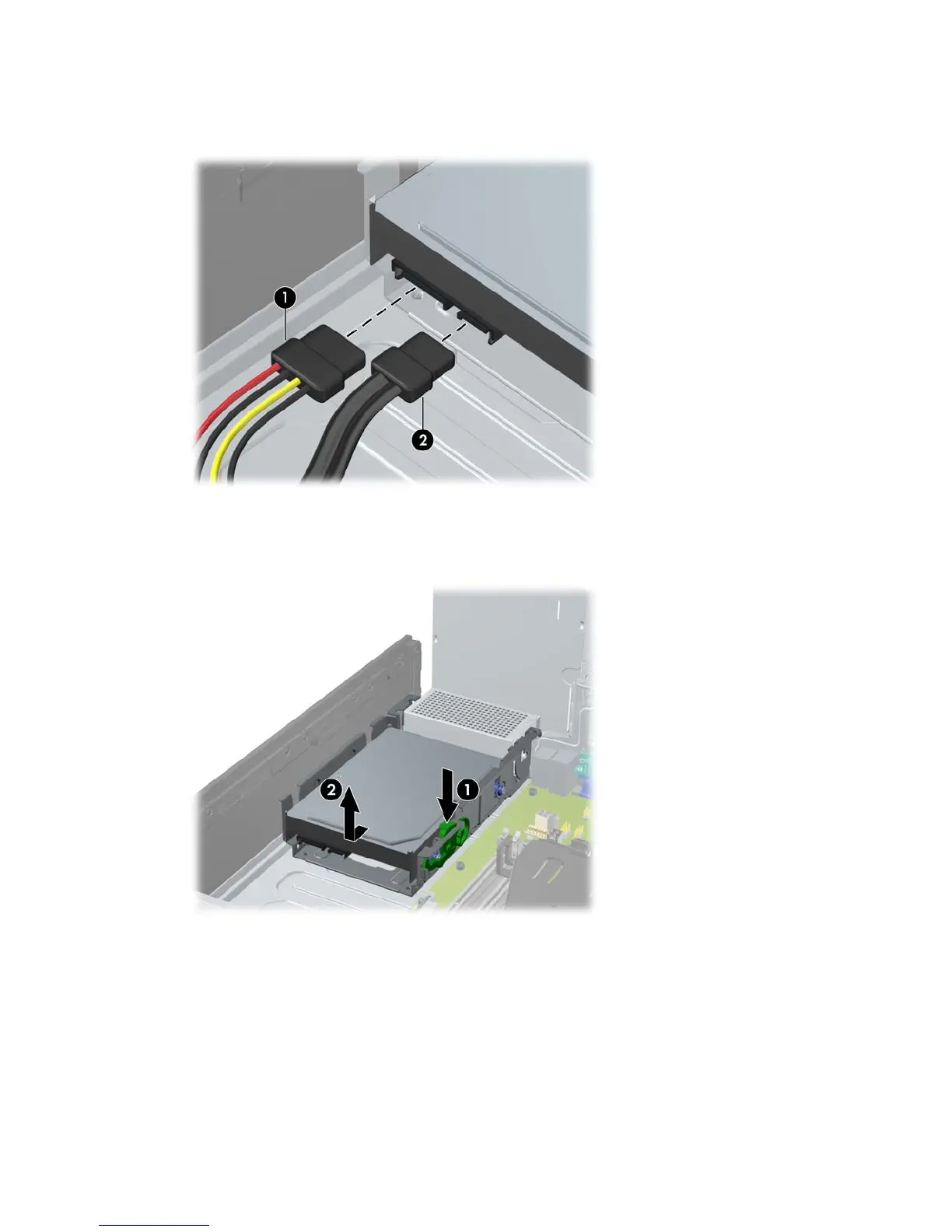

6. Disconnect the power cable (1) and data cable (2) from the hard drive.
Figure 5-25 Removing the optical drive
7. Press down on the green release latch next to the hard drive (1). While holding the latch down,
slide the drive forward until it stops, then lift the drive up and out of the bay (2).
Figure 5-26 Removing the primary hard drive
90 Chapter 5 Replacing components ENWW
