HP Z200 - Small Form Factor Workstation Maintenance And Service Guide

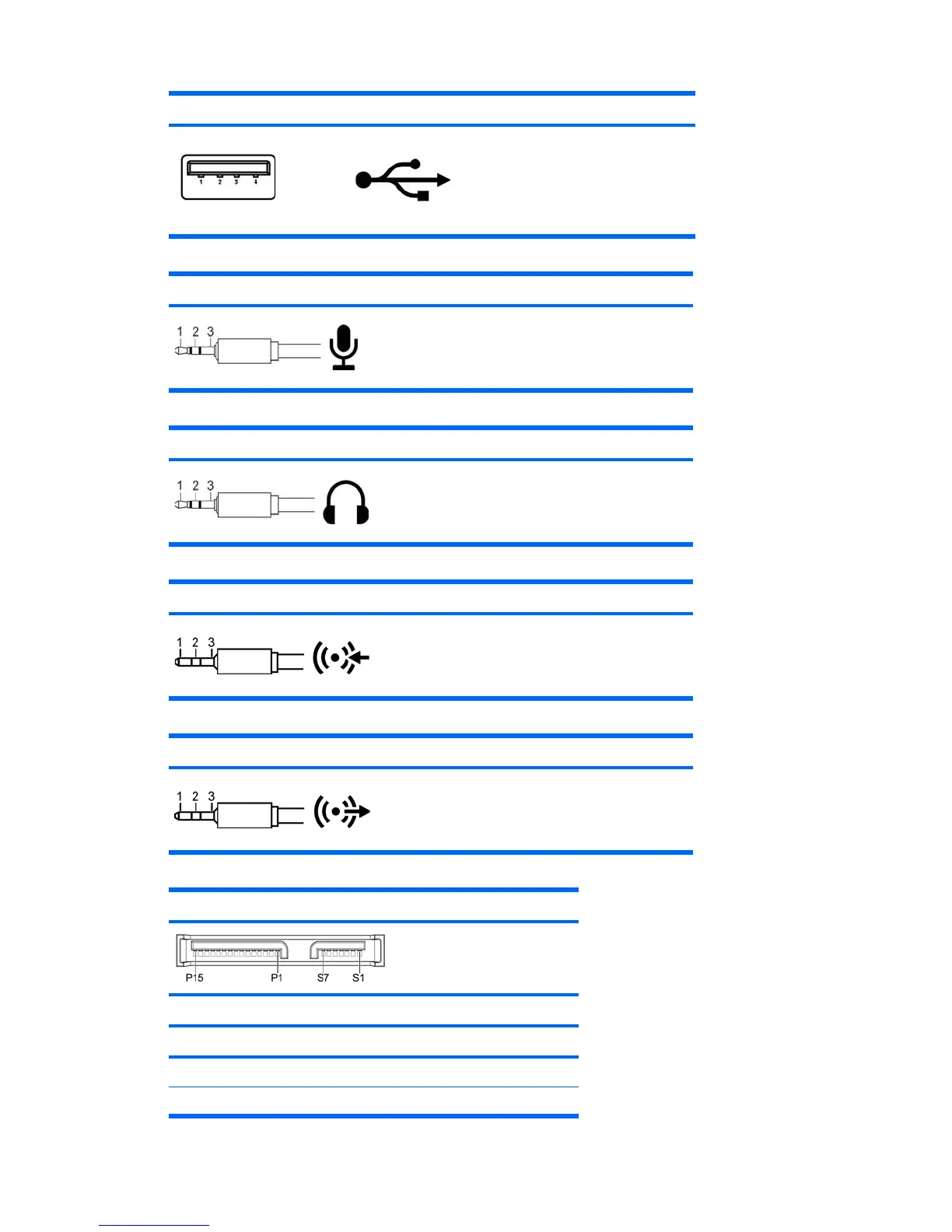

USB Pin Signal
1
2
3
4
+5 VDC
- Data
+ Data
Ground
Microphone cable, 6.35 MM (1/8 inch) Pin Signal
1 (Tip)
2 (Ring)
3 (Shield)
Audio
Power
Ground
Headphone cable, 6.35 MM (1/8 inch) Pin Signal
1 (Tip)
2 (Ring)
3 (Shield)
Audio_Left
Audio_Right
Ground
Audio line-in cable, 6.35 MM (1/8 inch) Pin Signal
1 (Tip)
2 (Ring)
3 (Shield)
Audio_In_Left
Audio_In_Right
Ground
Line-out audio cable, 6.35 MM (1/8 inch) Pin Signal
1 (Tip)
2 (Ring)
3 (Shield)
Audio_Out_Left
Audio_Out_Right
Ground
SATA drive
Pin Signal Pin Signal Pin Signal
Data Cable Power Cable Power Cable
S1 Ground P1 3.3V power P8 5V power
S2* A+ P2 3.3V power P9 5V power
ENWW 171
