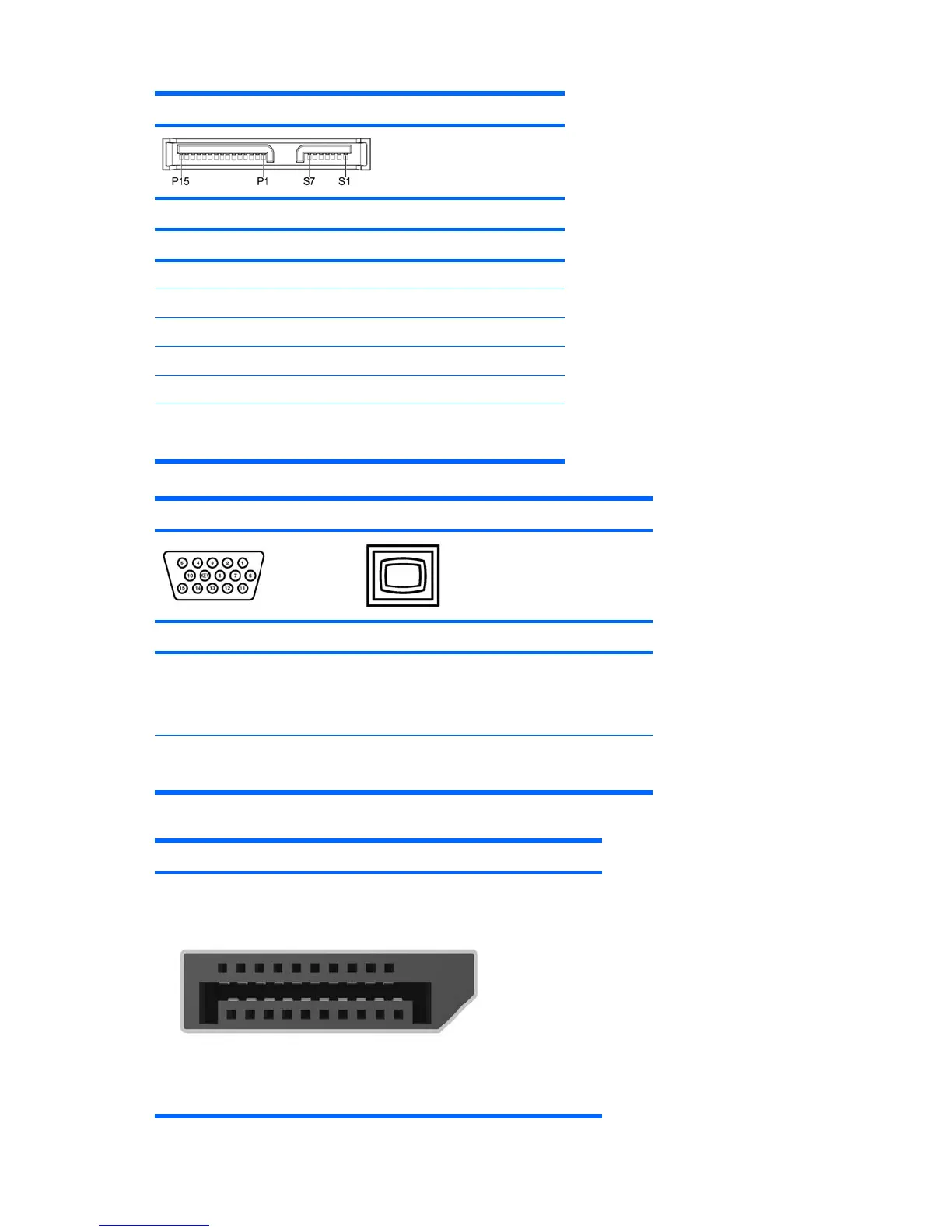

SATA drive
Pin Signal Pin Signal Pin Signal
Data Cable Power Cable Power Cable
S3* A- P3 3.3V power P10 Ground
S4 Ground P4 Ground P11 Reserved
S5** B- P5 Ground P12 Ground
S6** B+ P6 Ground P13 12V power
S7 Ground P7 5V power P14 12V power
* S2 and S3 differential signal pair
**S5 and S6 differential signal pair
P15 12V power
VGA
Pin Signal Pin Signal Pin Signal
1
2
3
Red Analog
Green Analog
Blue Analog
6
7
8
GND
GND
GND
11
12
13
Monitor ID
DDC Serial Data
Horizontal Sync
4
5
Monitor ID
GND
9
10
+5 VDC
GND
14
15
Vertical Sync
DDC Serial Clock
Display port
