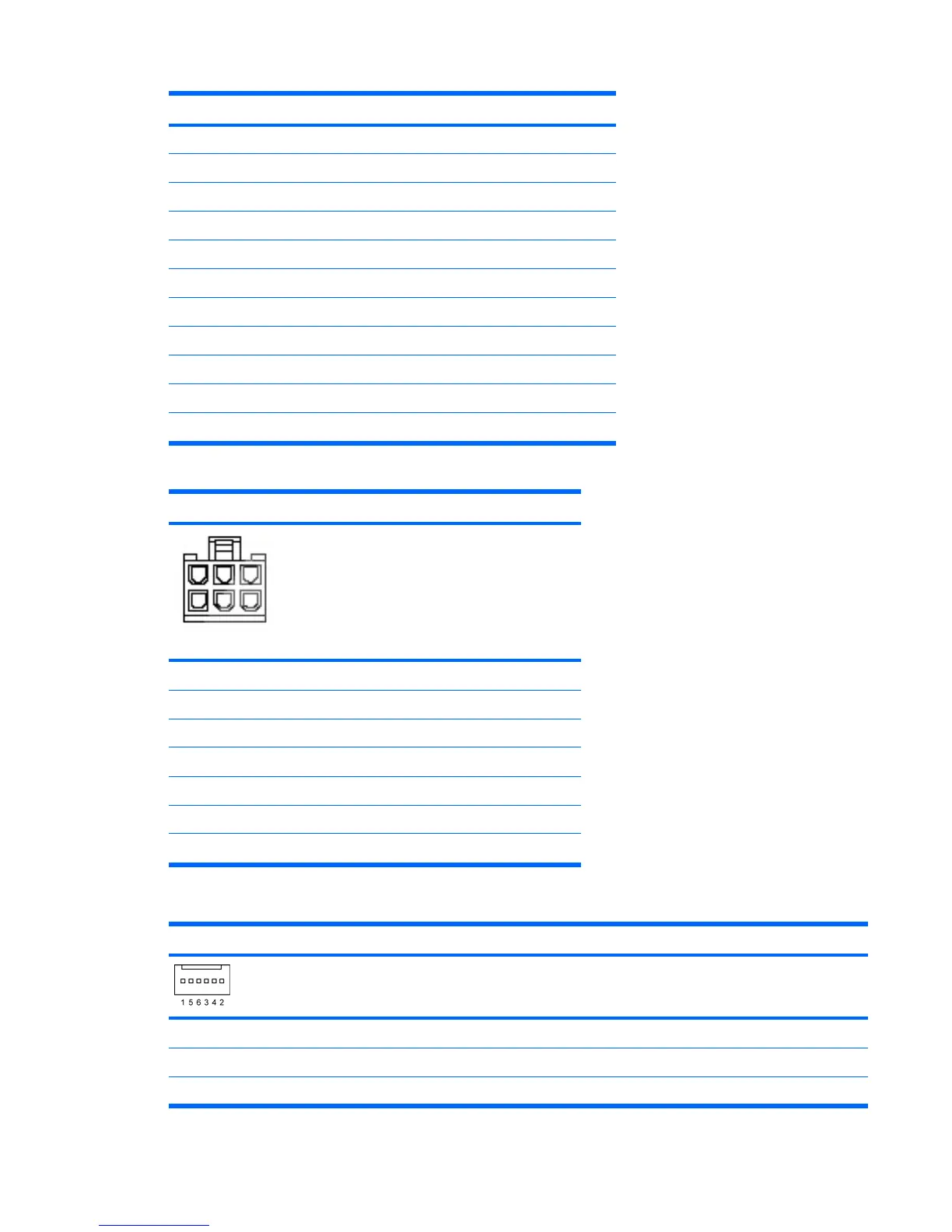

HP Z200 - Small Form Factor Workstation

Display port
Pin Signal Pin Signal
1 ML_Lane 0(p) 11 GND
2 GND 12 ML_Lane 3(n)
3 ML_Lane 0(n) 13 GND
4 ML_Lane 1(p) 14 GND
5 GND 15 AUX CH(p)
6 ML_Lane 1(n) 16 GND
7 ML_Lane 2(p) 17 AUX CH(n)
8 GND 18 Hot Plug Detect
9 ML_Lane 2(n) 19 DP_PWR Return
10 ML_Lane 3(p) 20 DP_PWR
Main power cable, P1
46
3
1
Pin Signal Color
1 GND Black
2 GND Black
3 –12V Dark blue
4 12V-Main Yellow
5 12V-Main Yellow
612VsbPurple
PWRCMD—Power command, P2
1 PWM White
2 Tach White
3 PS_ON Green
ENWW 173
