hpmont HD30 Series User Manual

Control the start/stop and set the running frequency via using communication

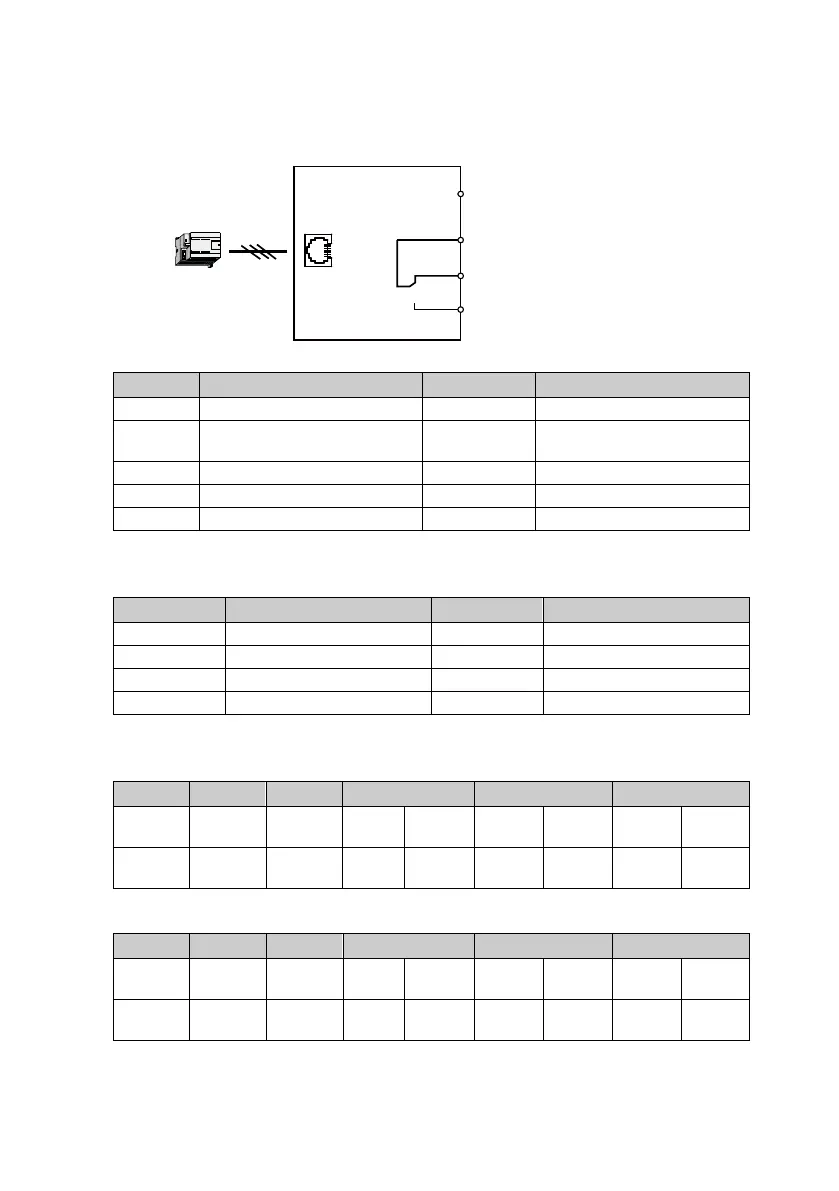

1. The communication wirings are as following figure.
2. After power on, set the functional parameters in accordance with wirings, as following table.
No. Parameter name Setting value Meaning
F00.10 Frequency setting source selection 2 SCI communication setting
F00.11
Command setting source selection
2
SCI communication running
command source
F17.00 Data format 0 (factory setting) 1-8-2 format, no parity, RTU
F17.01 Baud rate 3 (factory setting) 9600bps
F17.02 Local address 2 (factory setting)
3. Set the motor parameters (see motor nameplate parameters) and acceleration/deceleration
time via the display panel, as following table.
No. Parameter name No. Parameter name
F08.00 Rated power of motor 1 F08.04 Rated RPM of motor 1
F08.01 Rated voltage of motor 1
F08.02 Rated current of motor 1 F03.01 Acceleration time 1
F08.03 Rated frequency of motor 1 F03.02 Deceleration time 1
4. Start and stop the local address 2 of inverter via SCI communication function code 0x06 writing
register 0x3200, such as forward start command, as following table.
Address Code Register address Register content Checksum
Command
frame
0x02 0x06 0x32 0x00 0x10 0x01 0x4B 0x41
Answer
frame
0x02 0x06 0x32 0x00 0x10 0x01 0x4B 0x41
Deceleration stops command, as following table.
Address Code Register address Register content Checksum
Command
frame
0x02 0x06 0x32 0x00 0x10 0x04 0x8B 0x42
Answer
frame
0x02 0x06 0x32 0x00 0x10 0x04 0x8B 0x42
DO1
R1A
R1C
R1B
Fault indication normally closed contact
Output indicating signal at running
Fault indication normally open contact
Common terminal
1
2
3 45 6 7 8
RJ4 5
MODBUS
communication
SCI communication
terminal
