4.5 Meet EMC Requirement of Installation
4.5.1 Correct EMC Installation
According national standards GB/T12668.3, the inverter should meet the two requirements of
electromagnetic interference (EMI) and anti-electromagnetic interference. The international
standards IEC/61800-3 (VVVF drive system part 3: EMC specifications and test methods) are
identical to the national standards GB/T12668.3.
HD30 Series Inverters are designed and produced according to the requirements of IEC/61800-3.
Please install the inverter as per the description below so as to achieve good electromagnetic
compatibility (EMC).
Divide the installation space into different areas:
In a drive system, the inverter, control equipment and sensors are installed in the same cabinet,
the electromagnetic noise should be suppressed at the main connecting points with the EMI filter
and input reactor installed in cabinet to satisfy the EMC requirements.
The most effective but expensive measure to reduce the interference is to isolate the noise
source and the noise receiver, which should be considered in mechanical system design phase.
In driving system, the noise source can be inverter, braking unit and contactor. Noise receiver can
be automation equipment, encoder and sensor etc.
The mechanical/system is divided into different EMC areas according to its electrical
characteristics. The recommended installation positions are shown in Figure 4-23.

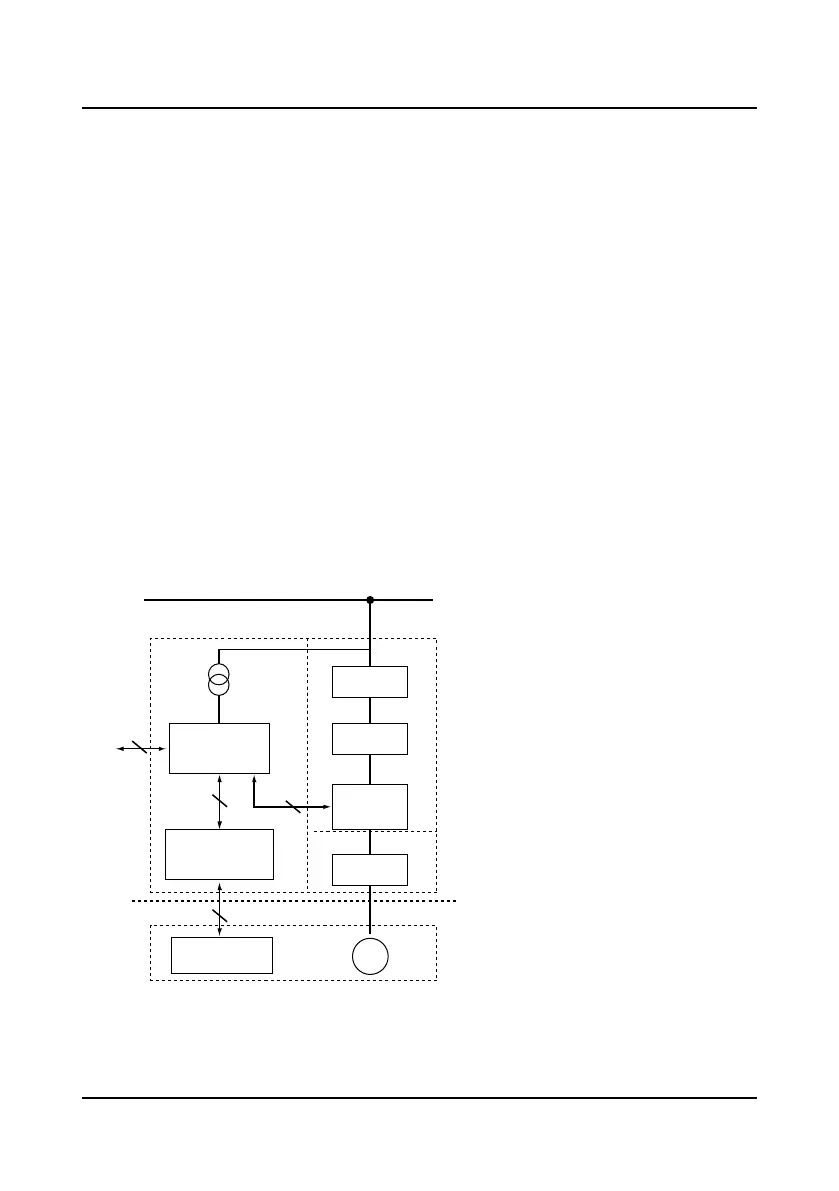

Figure 4-23 System wiring sketch
HD30inverter
EMI filter
Mechanical system
EMI filter
AC reactor
Manufacturemachines
Area E
Area A: install transformers of controlpower supply,
control devices and sensor etc.
Power supplycontrol cabinet
Area C
Area A
Area B
Area D
Area F
Motor
Sensor(temperature,
liquidlevel sensor)
Controldevices(the
host PC, PLCetc.)
Area B: interfacesof signaland control cables,
correct immunity level isrequired.
Area C: install noise sources suchas input reactor,
the inverter, braking unit and contactor.
Area D: install output EMI filter and its cable
connectionp
arts.
Area E: powersupply.
Area F: install motor and its cables.
Earthisolatedboard
