Chapter 9 Options Shenzhen Hpmont Technology Co., Ltd
―134― HD30 Series Inverters User Manual
HD30-PIO jumper description is shown as Table 9-3.
Table 9-3 HD30-PIO jumper description
Jumper Function and setting description Factory setting
CN2
Analogue input channel 1:
When pin 1 and pin 2 of the CN2 are short-circuited, channel 1
inputs voltage;
When pin 2 and pin 3 of the CN2 are short-circuited, channel 1
inputs current.
CN3
Analogue input channel 2:
When pin 1 and pin 2 of the CN3 are short-circuited, channel 2
inputs voltage;
When pin2 and pin 3 of the CN3 are short-circuited, channel 2
inputs current.
9.3 Panel Installation Assembly
The panel installation assembly includes mounting base and extension cable.
9.3.1 Mounting Base
The panel mounting base is an accessory. If needed, please order goods.

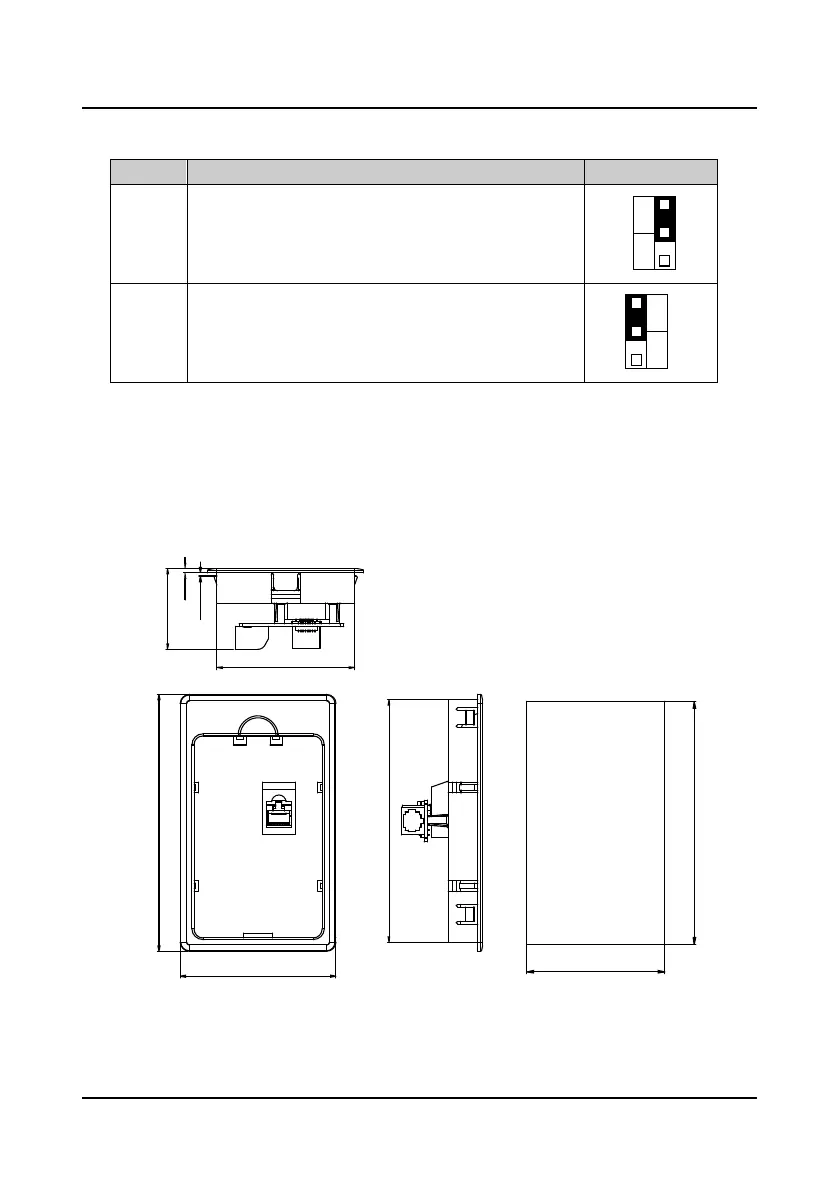

Model: HD-KMB. The mounting base and its size are shown as Figure 9-6 and the unit is mm.
Figure 9-6 Mounting base and its size
CN3
1
3
V
I
134
±0.2
44.8
86
142
76
±0.2
2.5
1.8
±0.1
76.5
+0.1
0
134.5
+0.1
0
Mounting base
Mounting size
