3.5 Display Panel Installation and Dismantle

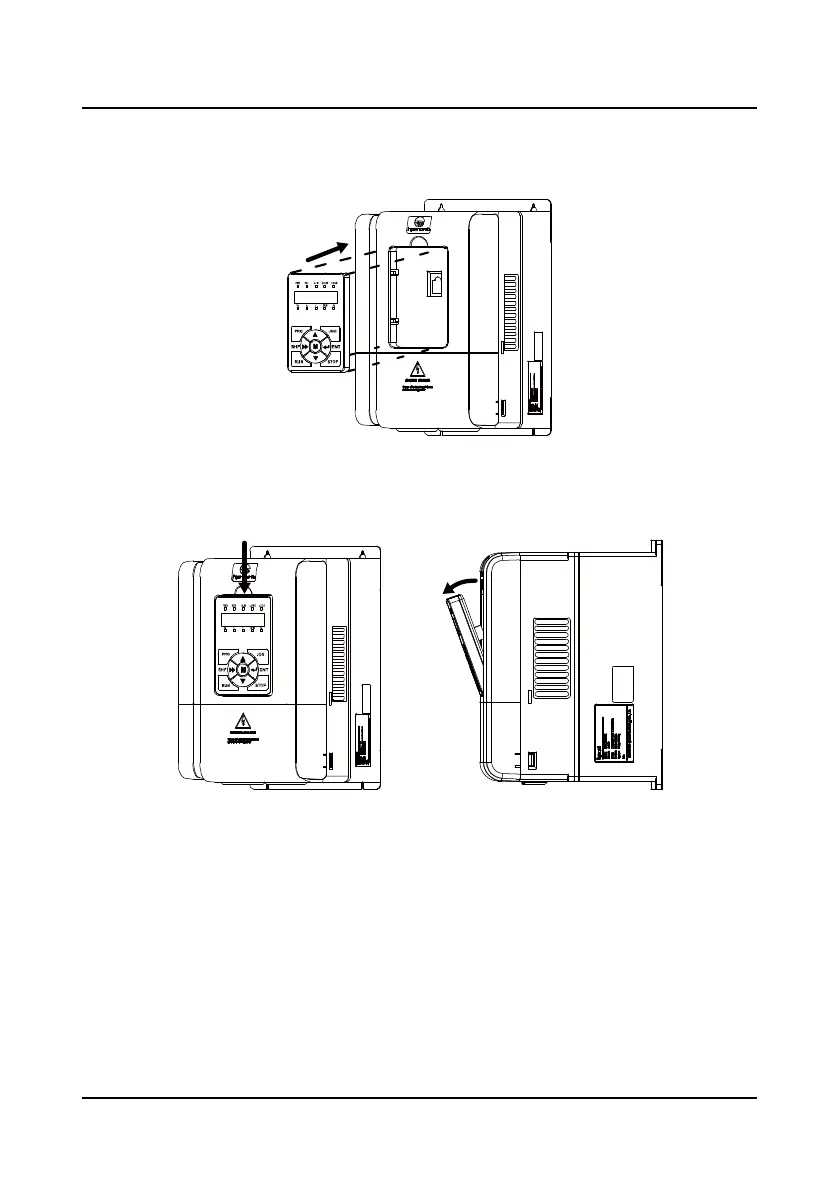

According to the direction of the Figure 3-4, press the display panel until hear a “click” sound. Do
not install the display panel from other directions or it will cause poor contact.
Figure 3-4 Installation of the display panel
There are two steps in Figure 3-5.
First, press the hook of the display panel according to the direction 1.
Second, take out of the display panel according to the direction 2.
Figure 3-5 Dismantle of the display panel
