5.2.3 Display Panel Operation Examples
Function parameter setting
For example: To modify the setting value of the function parameter F02.14 from 000.00Hz to
012.00Hz, as shown in Figure 5-8.

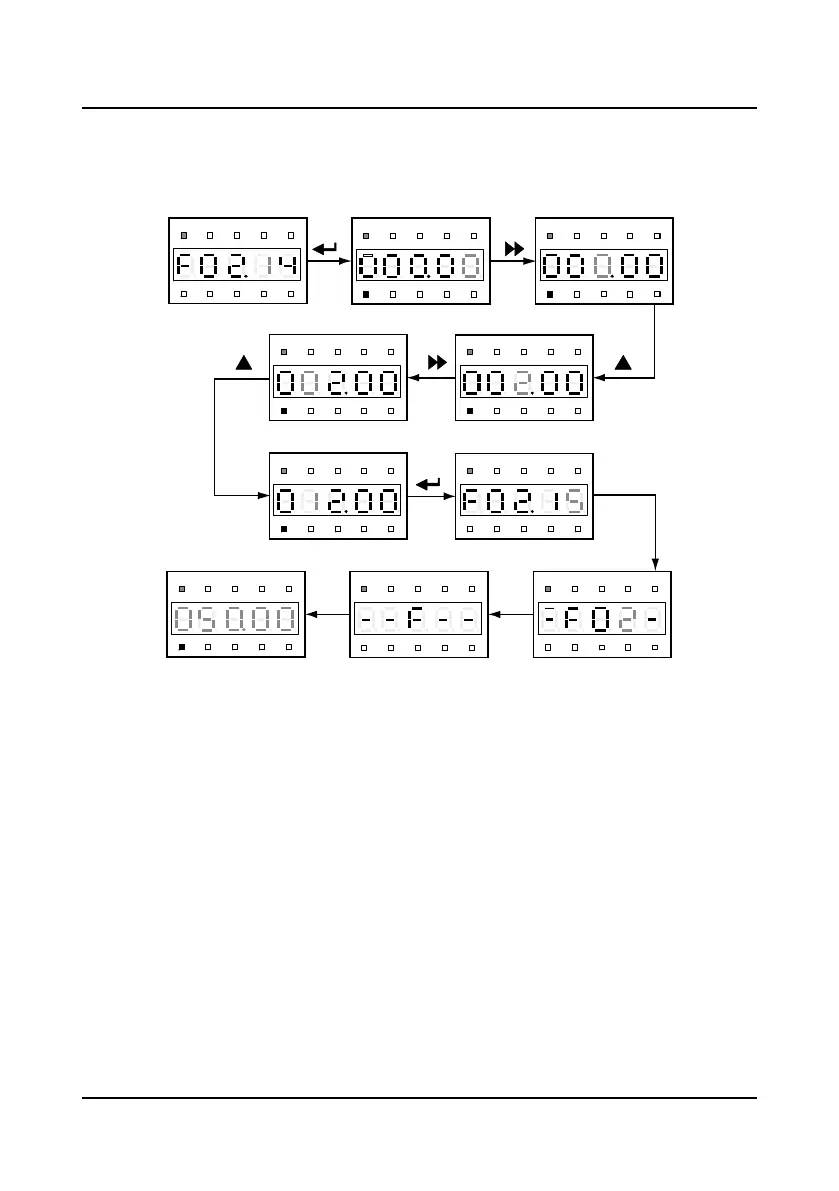

Figure 5-8 Function parameter setting
In the setting fourth-level menu situation, if the parameter is not flashing, it indicates that this
parameter can’t be modified. The possible reasons are as follows:
• The function parameter can’t be modified, such as the actual detected parameters or recorded
parameters etc.
• Only when the inverter stops can it modify the function parameter.
• Only input the correct password can it edit the function parameter due to the valid password.
Hz
A V RPM %
REVFWD ALM LO/RE LOCK
Hz
A V RPM %
REVFWD ALM LO/RE LOCK
Hz
A V RPM %
REVFWD ALM LO/RE LOCK
Hz
A V RPM %
REVFWD ALM LO/RE LOCK
Hz
A V RPM %
REVFWD ALM LO/RE LOCK
Hz
A V RPM %
REVFWD ALM LO/RE LOCK
Hz
A V RPM %
REVFWD ALM LO/RE LOCK
Hz
A V RPM %
REVFWD ALM LO/RE LOCK
Hz
A V RPM %
REVFWD ALM LO/RE LOCK
Hz
A V RPM %
REVFWD ALM LO/RE LOCK
Modify 0 to 1
Modify 0 to 2
PRG
PRGPRG
Third-level menu Fourth-level menu
Second-level menu
First-level menu
Stopping status
Third-level menu
Shift to tens
Shift to units
