Chapter 2 Product Information Shenzhen Hpmont Technology Co., Ltd
―10― HD30 Series Inverters User Manual
Model
Rated capacity
(kVA)
Rated input
current(A)
Rated output
current(A)
Motor power
(kW)
HD30-4T200G/220P 250/280 385/430 380/426 200/220
HD30-4T220G/250P 280/309 430/475 426/470 220/250
HD30-4T250G/280P 309/349 475/535 470/530 250/280
HD30-4T280G/315P 349/398 535/609 530/600 280/315
HD30-4T315G/355P 398/434 609/664 600/660 315/355
HD30-4T355G/400P 434/494 664/754 660/750 355/400
HD30-4T400G/450P 494/560 754/852 750/830 400/450

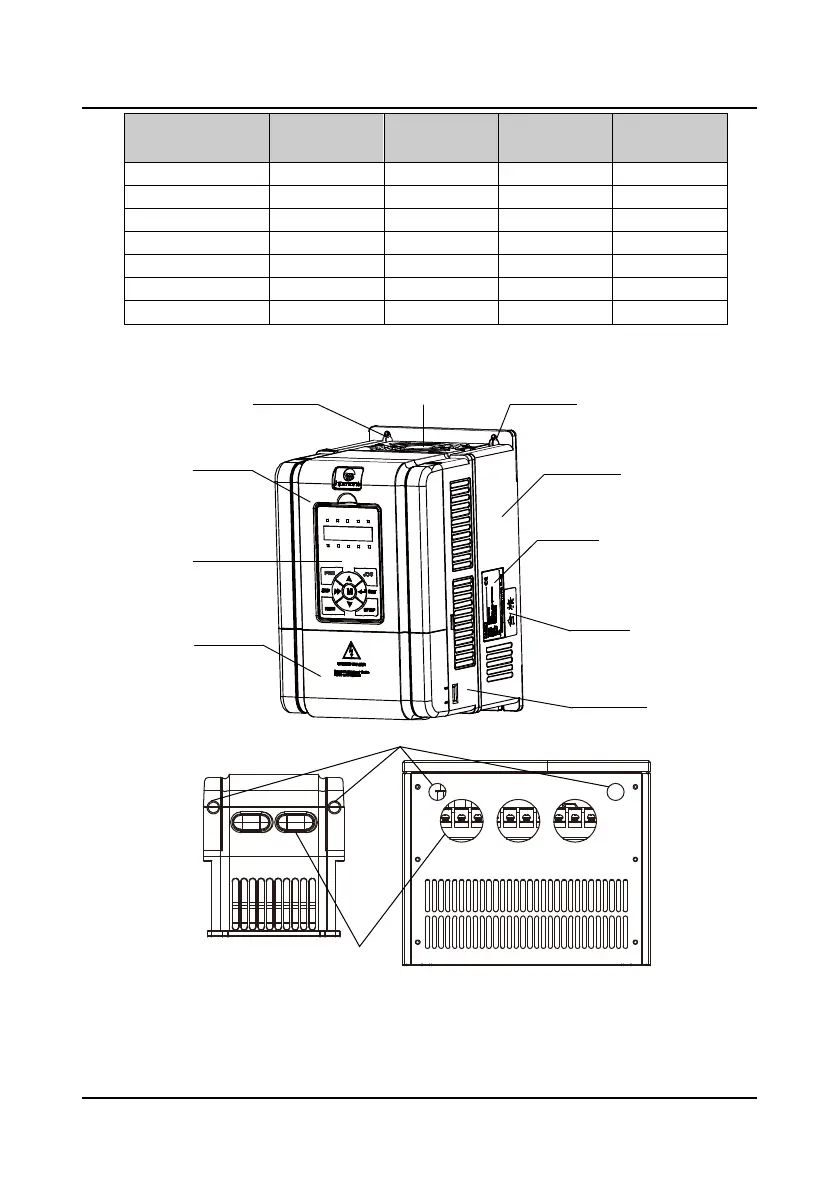

2.5 Parts of Inverter
FWD
LOCK
REV
ALM
LO/RE
H
Z
A
V
RPM
%
Mounting hole Mounting hole
Display panel
Nameplate
Fan cover
Upper cover
Lower cover
Certification
Bottom enclosure
Middle enclosure
Controlterminal connection hole
Plastic structure Metal structure
Power terminal
connectionhole
