Shenzhen Hpmont Technology Co., Ltd Chapter 9 Options
HD30 Series Inverters User Manual 133

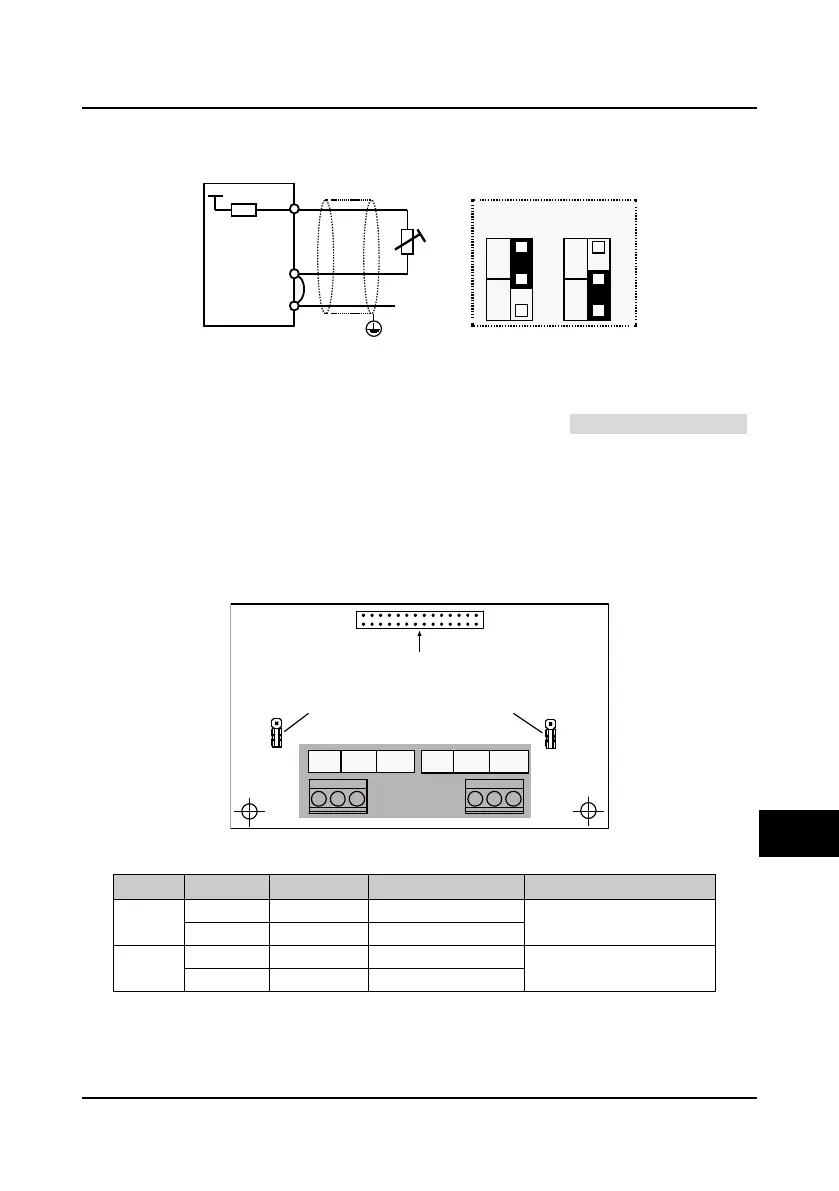

When AI4 is used as motor overheat detection signal input terminal, the wiring is shown as Figure
9-4. Motor stator coil embedded of the thermistor connected to the analog input, and need to set
jumper correctly.
Figure 9-4 Wiring of AI4 as over-heated signal detection input terminal
Wiring of digital input terminal
Extension I/O card digital input terminals (DI7
DI9) have the same connection with control
board digital input terminals (DI1
DI6), please refer to section 4.4.4 digital input terminal wiring
of Control Terminal Connection.
9.2 Plastic Interface Card (HD30-PIO)
HD30 series inverters can use plastic interface card (HD30-PIO), HD30-PIO is specific
development for injection molding machine industry, mainly provide two way isolated selectable
sampling 0
24V voltage, 0
1A current signal analogue input channels
Terminal arrangement is shown as Figure 9-5 and the terminal functions are as Table 9-2.
Figure 9-5 HD30-PIO
Table 9-2 HD30-PIO function description
Item Terminal Name Description Reference function
Channel 1
QI1CM1 Current input Input: 01A
Reference function AI3
QV1CM1 Voltage input Input: 024V
Channel 2
QI2CM2 Current input Input: 01A
Reference function AI4
QV2CM2 Voltage input Input: 024V
AI4-
GND
PE
AI4+
I/O card
10k
+5V
Thermistor
CN4
1
3
CN3
1
3
V
I
V
R
Jumper setting
To connect the control board
Jumper
CN3
Jumper
CN2
HD30-PIO
Plastic interface
card terminal
QI1 QV1 CM1
QI2 QV2 CM2
9
